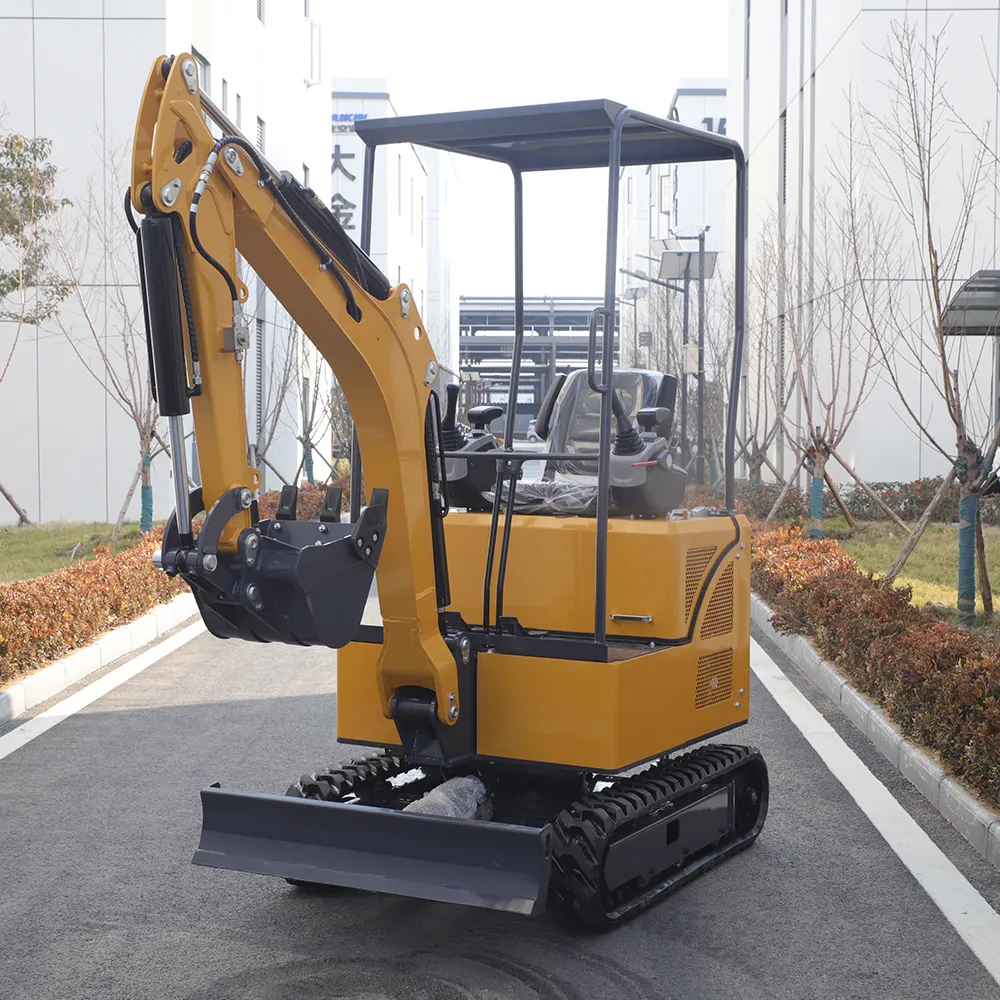

Side-front view of yellow mini excavator with open canopy, bucket and front dozer blade

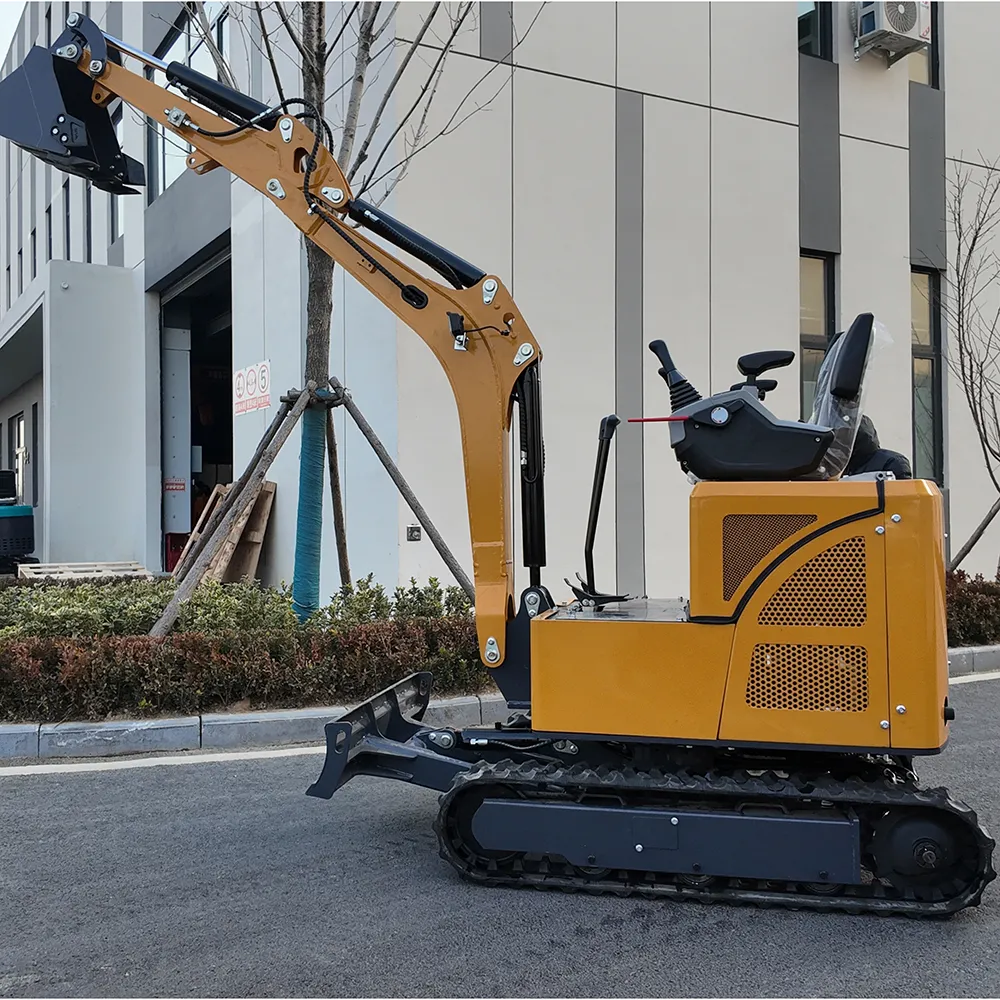

Side-rear view of yellow mini excavator with raised boom, bucket and operator controls

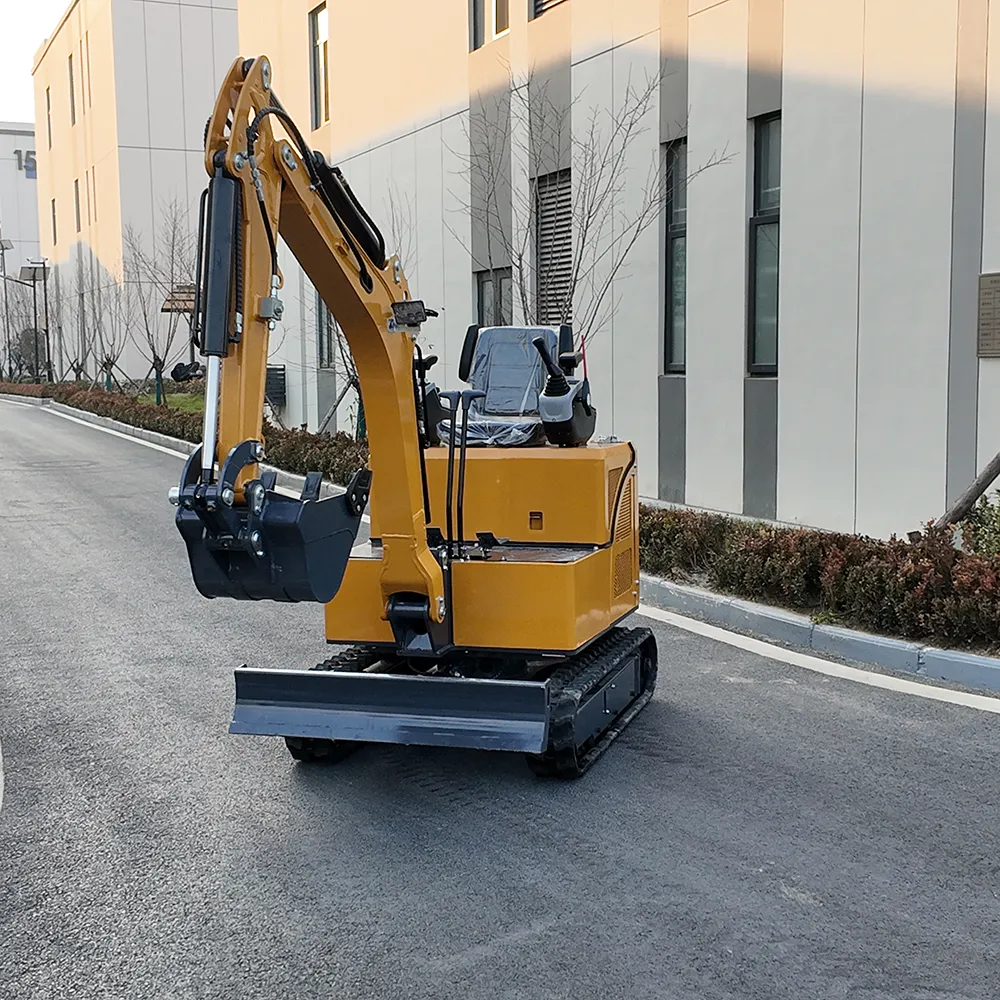

Side view of yellow mini excavator showing bucket, dozer blade and rubber tracks

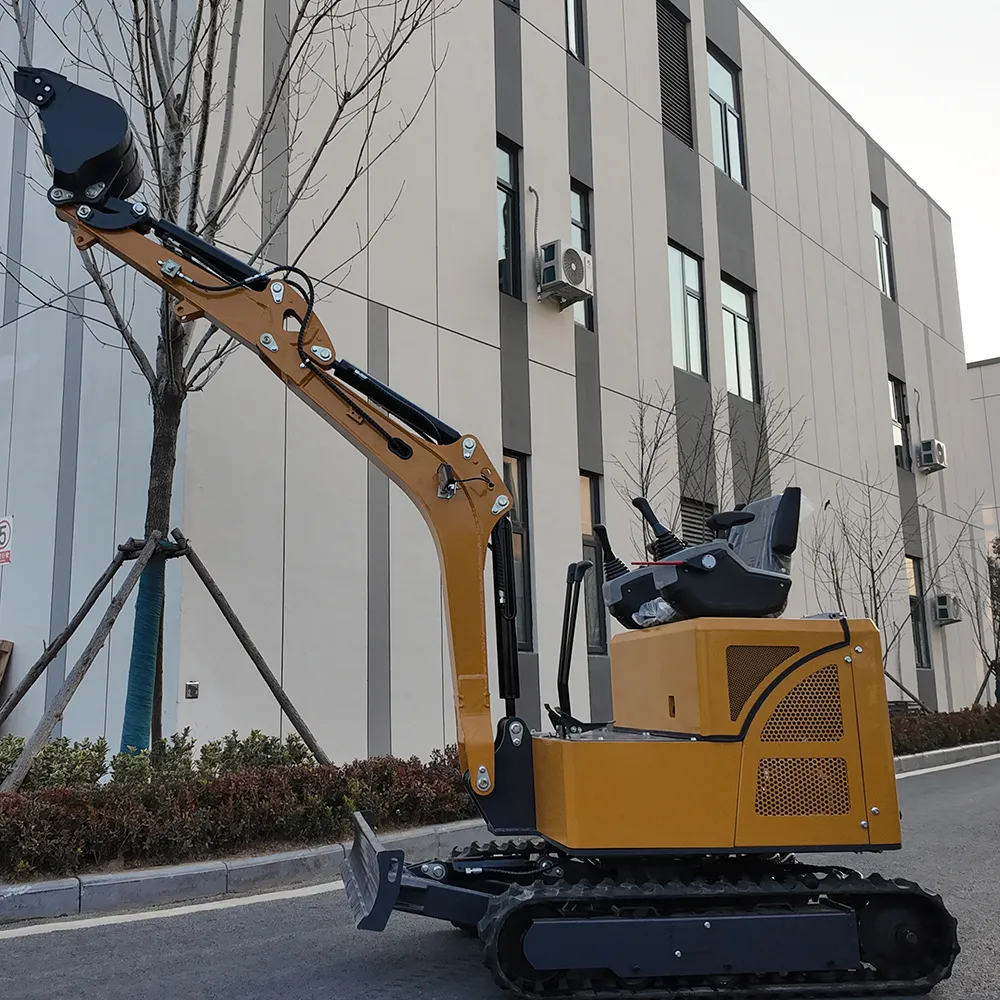

Side-rear view of yellow mini excavator with bucket in raised position, operator seat and tracks

SN-TC17 Plunger Pump Small Digger Mini Excavator EPA Euro5 for Sale

SN-TC17 plunger pump small digger / mini excavator features top-mounted hydraulic cylinders and a shut-off valve. Designed for enhanced digging force and easy maintenance, this EPA Euro5 certified machine is ideal for small to medium construction tasks.

Product Description

The SN-TC17 is a durable mini excavator / small digger engineered for reliable performance and low maintenance. Equipped with a high-performance plunger pump hydraulic system, it delivers smooth, consistent operation with reduced heat generation. The tilt-up cabin design simplifies maintenance access, while built-in hydraulic pipes protect against abrasion and damage. EPA Euro5 certified, it meets global emission standards and is suitable for construction, landscaping and small-scale projects worldwide.

Performance Characteristics

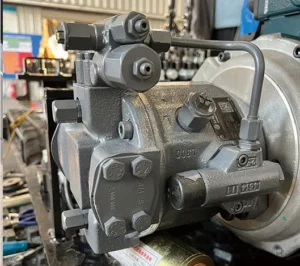

High-Performance Plunger Pump Hydraulics

The standard plunger pump system offers high pressure resistance, less prone to overheating, and ensures smooth, powerful operation. It delivers consistent flow for reliable performance in various digging tasks, reducing downtime and maintenance needs.

User-Friendly Maintenance Design

Tilt-up cabin: Provides full access to key components for quick servicing, minimizing downtime.

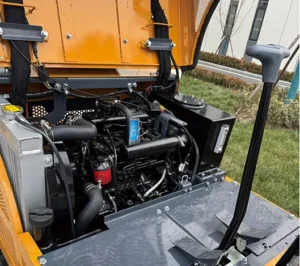

Rear-hinged engine hood: Easy access to the engine and hydraulic parts for routine checks.
Built-in hydraulic pipes: Protect hoses from scratches and damage, extending service life.

Enhanced Digging Performance

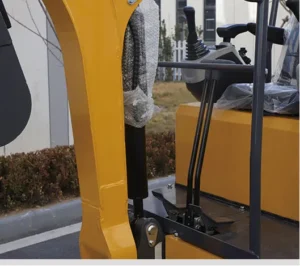

Top-mounted boom cylinders increase digging force, allowing the machine to handle tough soil and construction materials with ease. The balanced design ensures stable operation while maximizing digging efficiency.

EPA Euro5 Certified Power System

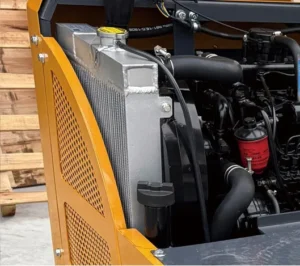

Powered by a KM385B engine with EPA Euro5 compliance, meeting global emission standards. The three-cylinder water-cooled engine delivers sufficient horsepower for consistent performance across different job sites.

Versatile & Compact Operation

With a compact chassis and optimized turning radius, the SN-TC17 easily navigates narrow spaces. The shut-off valve allows quick attachment changes, expanding its use for digging, trenching, landscaping and light construction tasks.

Product Specifications

Bucket Capacity	0.04 m³
Chassis Width	1200 mm
Track Length	1100 mm
Gradeability	20°
Chassis Ground Clearance	150 mm
Track Width	230 mm
Fuel Tank Volume	17 L
Overall Dimension	3390×1200×2400 mm
Hydraulic Flow	50 L/Min
Hydraulic Tank Capacity	18 L
Working Pressure	21 MPa
Engine Model	KM385B (EPA optional)
Engine Power	18.1 kw / 25 hp
Max. Digging Height	3245 mm
Max. Dumping Height	2320 mm
Max. Digging Depth	2340 mm
Max. Digging Radius	3680 mm
Turning Radius	1540 mm
Bucket Excavating Force	13.5 KN
Operation Weight	1550 kg
Configuration	Plunger pump / Built-in hydraulic pipes / Tilt-up cabin / Top-mounted hydraulic cylinders / Shut-off valve

Standard Configuration

High-performance plunger pump hydraulic system
Tilt-up cabin for easy maintenance access
Rear-hinged engine hood for quick servicing
Built-in hydraulic pipes to prevent scratches and damage
Top-mounted boom cylinders for enhanced digging force
Shut-off valve for quick attachment changes
Three-cylinder water-cooled engine with sufficient horsepower
Compact chassis design for narrow space maneuverability
Reinforced frame and boom for long service life

Optional Configuration

EPA compliant engine upgrade
Standard / narrow / tilting bucket
Steel tracks or heavy-duty rubber tracks
Hydraulic / mechanical quick hitch
Break hammer, auger, ripper, grapple
Grass trimmer, root cutter, sand bucket
Enclosed cabin with heater and wiper

Why Choose SN-TC17?

Durable Plunger Pump: High pressure resistance and low overheating risk ensure reliable performance
Easy Maintenance Design: Tilt-up cabin and rear-hinged hood simplify servicing and reduce downtime
Enhanced Digging Force: Top-mounted boom cylinders deliver stronger digging power for tough tasks
EPA Euro5 Certified: Meets global emission standards for worldwide use
Versatile Operation: Compatible with multiple attachments for diversified construction and landscaping tasks
Factory Direct Supply: Competitive price with reliable quality assurance
Fast Global Shipping: In stock for prompt delivery to worldwide destinations
Professional After-Sales: Full support for parts replacement and technical service
