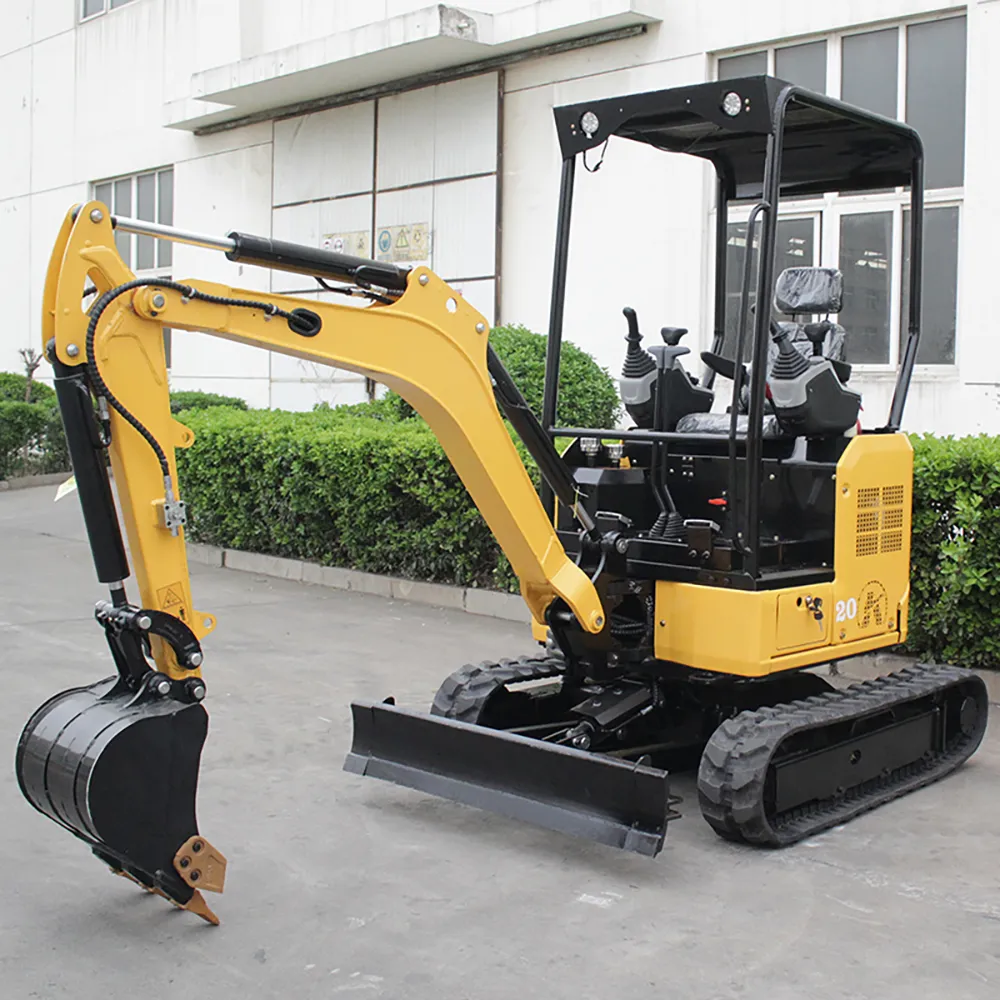

Side front view of yellow model 20 mini excavator with open canopy, bucket and dozer blade on factory pavement

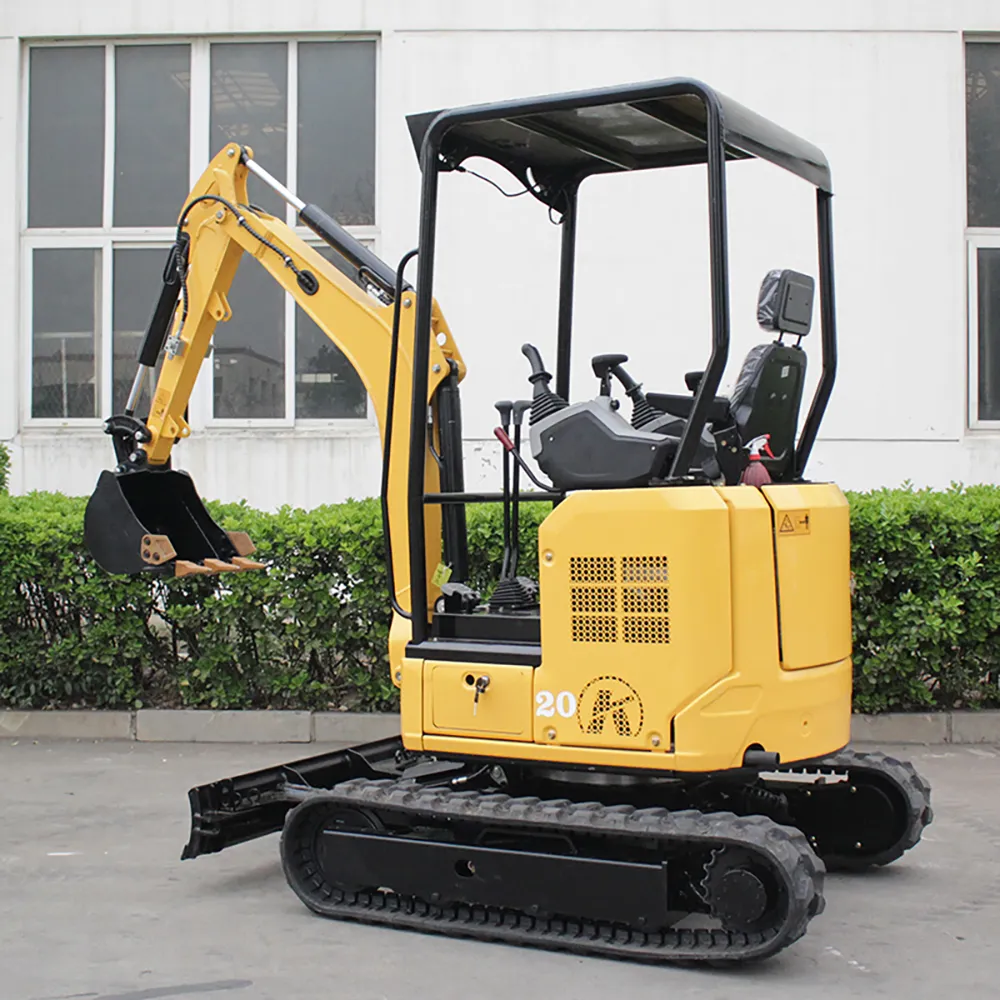

Side rear view of yellow model 20 mini excavator showing engine compartment, canopy and bucket

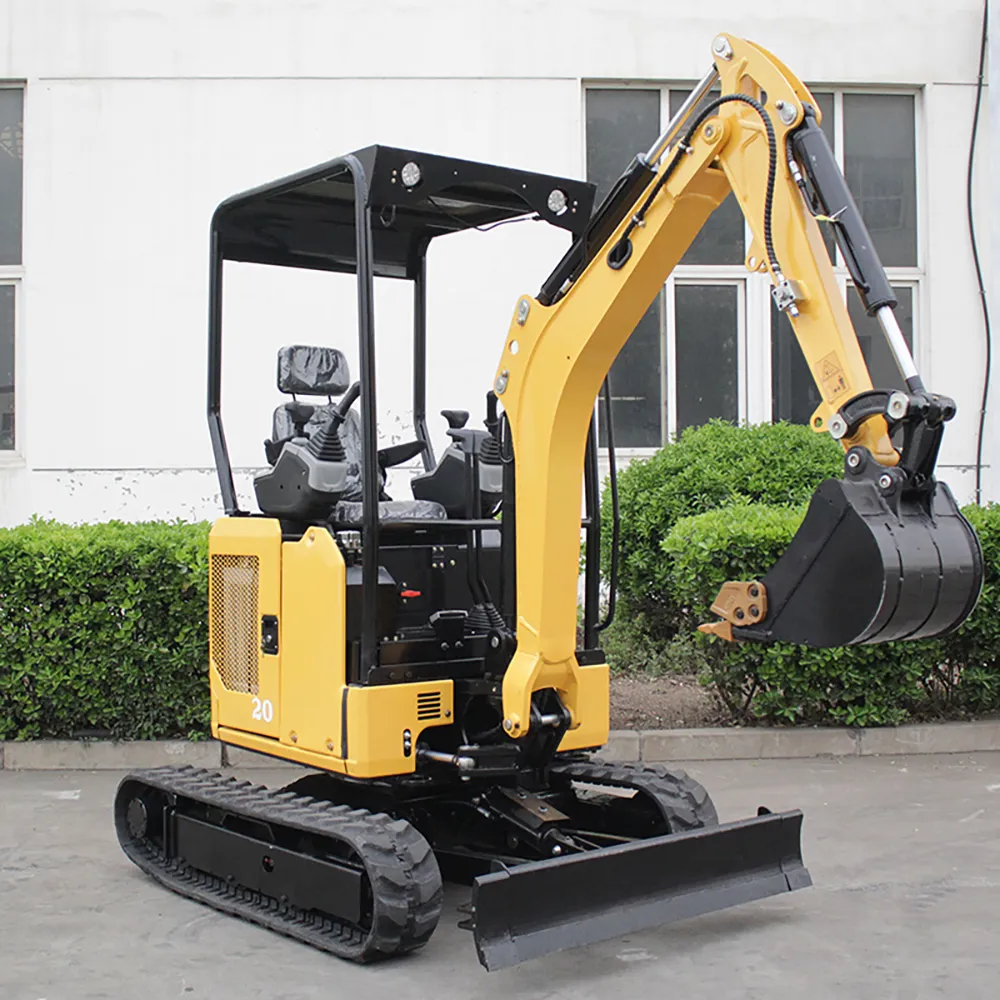

Three-quarter view of yellow model 20 mini excavator with canopy, controls and dozer blade

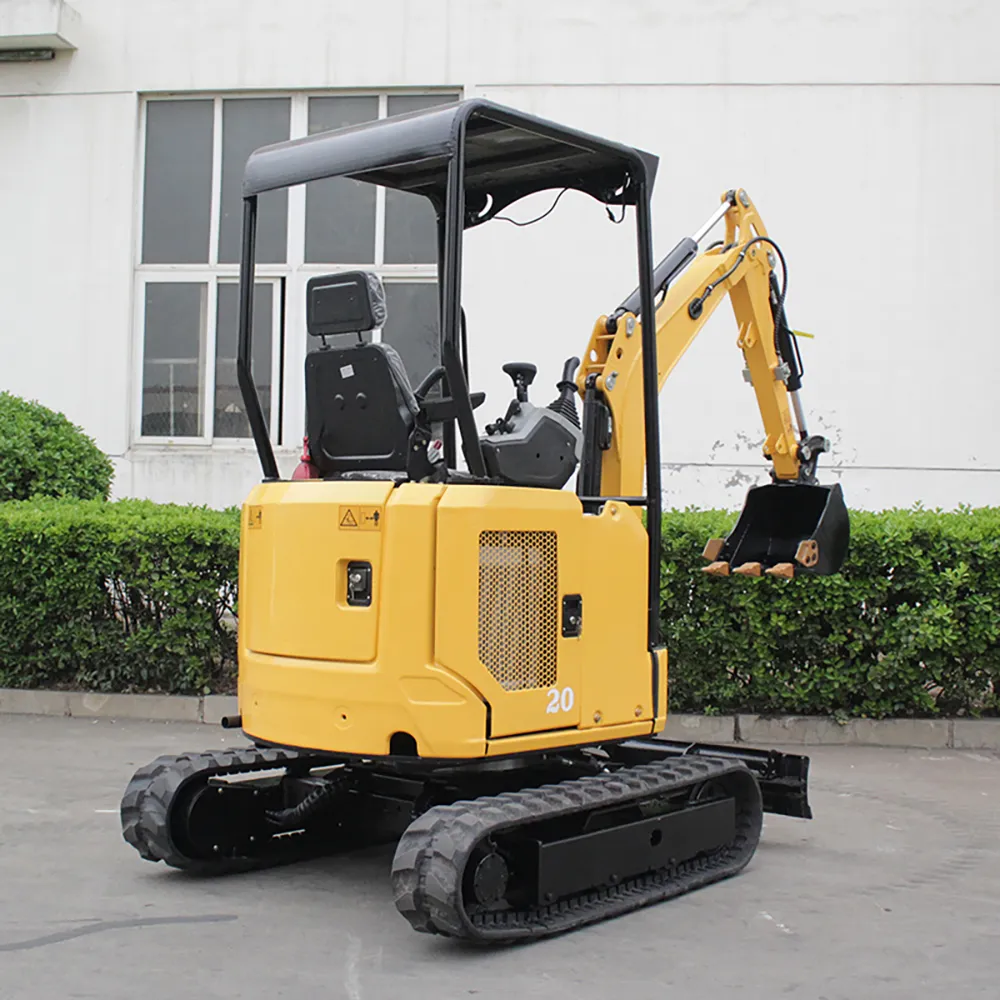

Rear side view of yellow model 20 mini excavator with canopy, bucket and tracked undercarriage

SN-KT20 Mini Excavator with Swing Boom Laidong Engine EPA Euro5

SN-KT20 mini excavator features electric control handles, three-sided open design & swing boom. EPA Euro5 certified, it delivers reliable performance for construction and landscaping tasks.

Send Inquiry
A banner showing a range of colorful mini excavators with the text 'MINI EXCAVATOR'.

Product Description

The SN-KT20 is a high-performance compact mini excavator designed for maximum versatility and ease of use. Powered by a Laidong385 engine and equipped with a KJun brand load-sensitive piston pump, it delivers smooth, powerful performance with low fuel consumption. Featuring a swing boom and electric control handles, the SN-KT20 offers precise operation and flexibility in confined spaces. With an LED large screen display, three-sided openable maintenance design and EPA/Euro5 certification, it is the ideal choice for professional users seeking reliability, efficiency and easy maintenance.

Performance Characteristics

Laidong Engine & Reliable Power


Equipped with a Laidong385 engine delivering 18KW/25HP power, meeting EURO 5 and EPA emission standards. The engine provides strong power output, low fuel consumption and excellent reliability for long-hour working, suitable for various global markets.


Swing Boom & Enhanced Maneuverability


Features a swing boom design that allows multi-angle digging without repositioning the machine. This capability enables efficient work in tight corners and confined spaces, making it ideal for landscaping and urban construction projects.


Load-Sensitive Hydraulic System


Adopts a KJun brand piston pump with load-sensitive technology, delivering soft and powerful action with low engine temperature and reduced energy consumption. The system ensures smooth operation and precise control for maximum productivity.


LED Large Screen & Electric Control


Equipped with an LED super large screen for clear status visibility, enhancing operator awareness and safety. The electric control handles feature a simple structure and long service life, providing comfortable and fatigue-free operation.


Three-Sided Openable Maintenance Design


The three-sided opening design allows easy access to key components for maintenance and upkeep, reducing downtime and service costs. This user-friendly feature ensures the machine stays in optimal condition with minimal effort.


Durable Construction & Safety


Built with high-quality components and reinforced chassis, the SN-KT20 is designed for long service life and reliable performance in demanding work environments. The robust structure and safety features ensure operator protection and machine stability.

Product Specifications

Bucket Capacity0.04 m³
Chassis Width1100 mm
Track Length1300 mm
Gradeability40°
Chassis Ground Clearance385 mm
Track Width230 mm
Fuel Tank Volume15 L
Overall Dimension3550×1400×2203 mm
Transport Length3550 mm
Excavator Height2203 mm
Hydraulic Flow40 L/min
Hydraulic Tank Capacity16 L
Working Pressure16 MPa
Engine ModelLaidong385
Engine Power18KW/25HP
Max. Digging Height3016 mm
Max. Dumping Height2133 mm
Max. Digging Depth2050 mm
Max. Digging Radius3800 mm
Turning Radius1645 mm
Bucket Excavating Force15 KN
Operating Weight1850 kg
Hydraulic ConfigurationBeifang Brand Valve / KJun Brand Piston Pump

Standard Configuration

  • Laidong385 engine, EPA/Euro5 certified, reliable and low fuel consumption
  • KJun brand load-sensitive piston pump, smooth and energy-efficient operation
  • Beifang brand hydraulic valve, durable and precise control
  • Swing boom design, multi-angle digging capability without repositioning
  • LED super large screen, clear status visibility for enhanced safety
  • Electric control handles, simple structure and long service life
  • Three-sided openable maintenance design, easy access for servicing
  • 230mm wide rubber tracks, stable movement on various terrains
  • Ergonomic operator station, comfortable and fatigue-free operation
  • Reinforced chassis and boom, durable for long-hour working

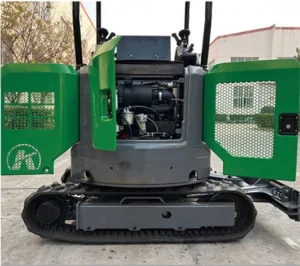

Rear view of green-gray mini excavator with open engine compartment doors showing internal components

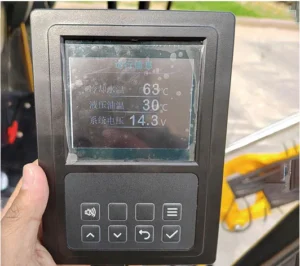

Close-up of mini excavator's digital monitor showing water temperature, hydraulic oil temp and system voltage

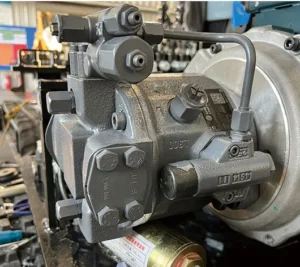

Close-up of mini excavator's main hydraulic pump with bolts, valves and QR code label
Close-up of mini excavator's dual joystick control handles with ergonomic buttons

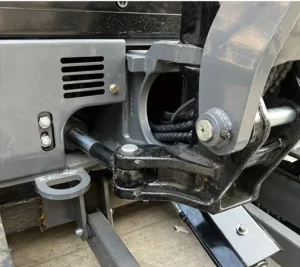

Close-up of mini excavator's boom pivot joint, hydraulic cylinder and metal linkage

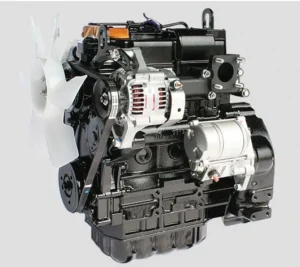

Close-up of mini excavator's diesel engine with cooling fan, alternator and starter motor

Optional Configuration

  • Standard bucket / Narrow bucket / Tilting bucket
  • Yanmar engine upgrade (EPA/Euro5 compliant)
  • Steel tracks / Heavy-duty rubber tracks (customization)
  • Hydraulic quick hitch / Mechanical quick hitch
  • Break hammer / Auger drill / Ripper
  • Grapple / Thumb clamp / Rake
  • Grass trimmer / Root cutter / Sand bucket
  • Enclosed cab with heater and wiper
A comprehensive collection of over 36 mini excavator attachments, including buckets, breakers, augers, rakes, trailers, and quick hitches.

Why Choose Our SN-KT20?

  • Swing Boom Flexibility: Multi-angle digging capability for efficient work in tight corners
  • Laidong Engine Reliability: EPA/Euro5 compliant with strong power and low fuel consumption
  • Load-Sensitive Hydraulics: Smooth, powerful action with reduced energy consumption
  • LED Display & Electric Control: Clear status visibility and easy operation
  • Three-Sided Open Maintenance: Easy access for servicing, reducing downtime and costs
  • Factory Direct Supply: Competitive price with no middleman, transparent cost
  • Fast Delivery: In stock for immediate shipment worldwide, flexible shipping methods
  • One-Stop Service: Customization available, professional after-sales support
