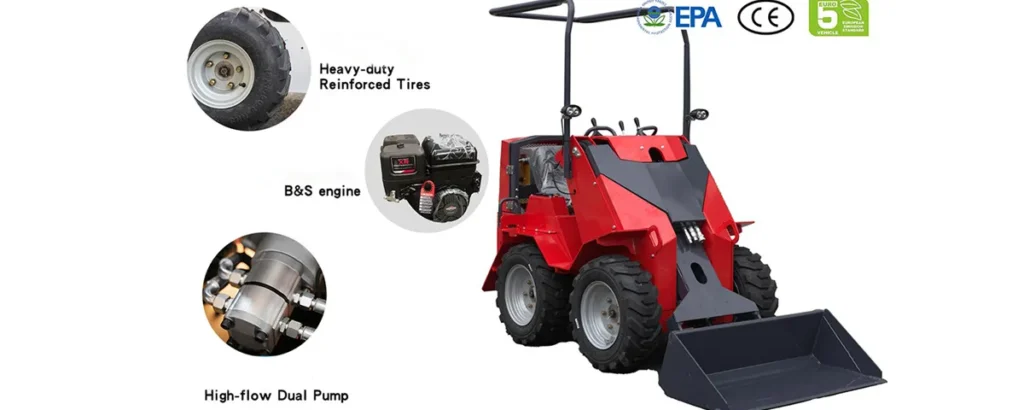

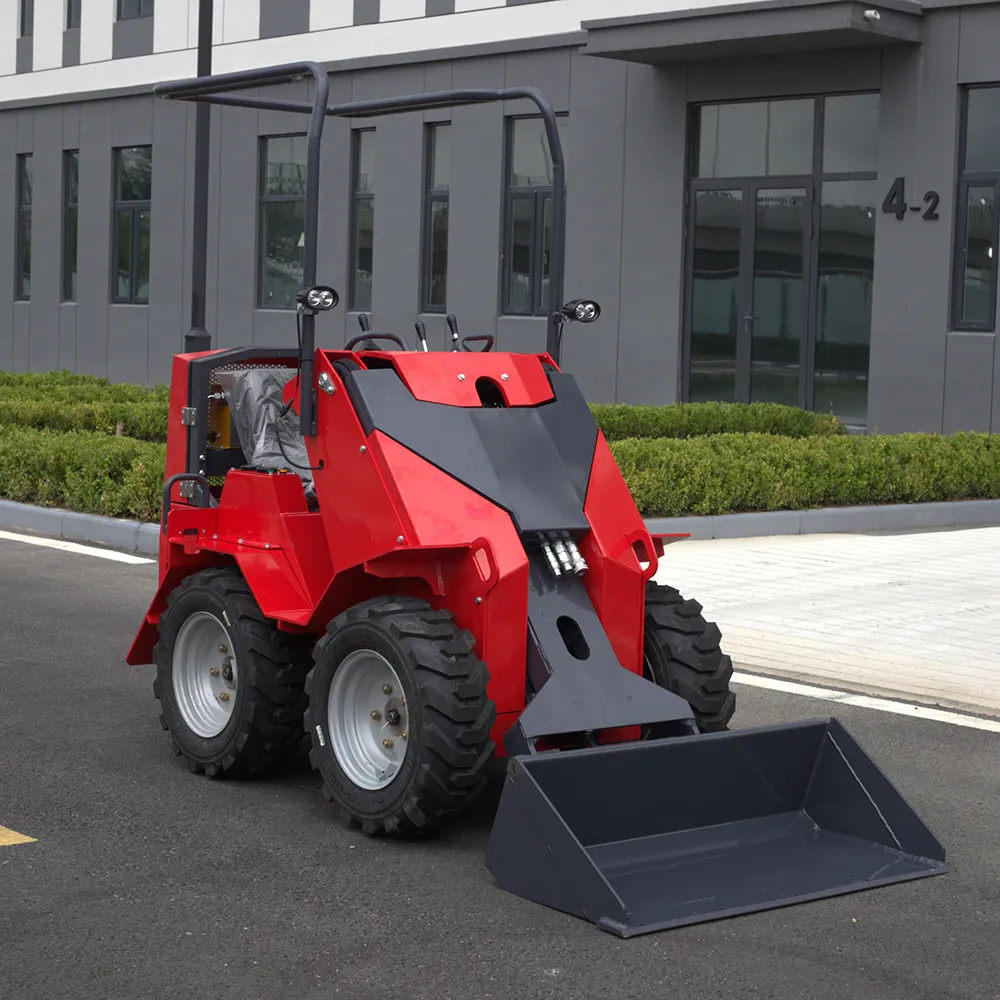

Side-front view of red mini skid steer loader with level bucket, rugged tires and open canopy

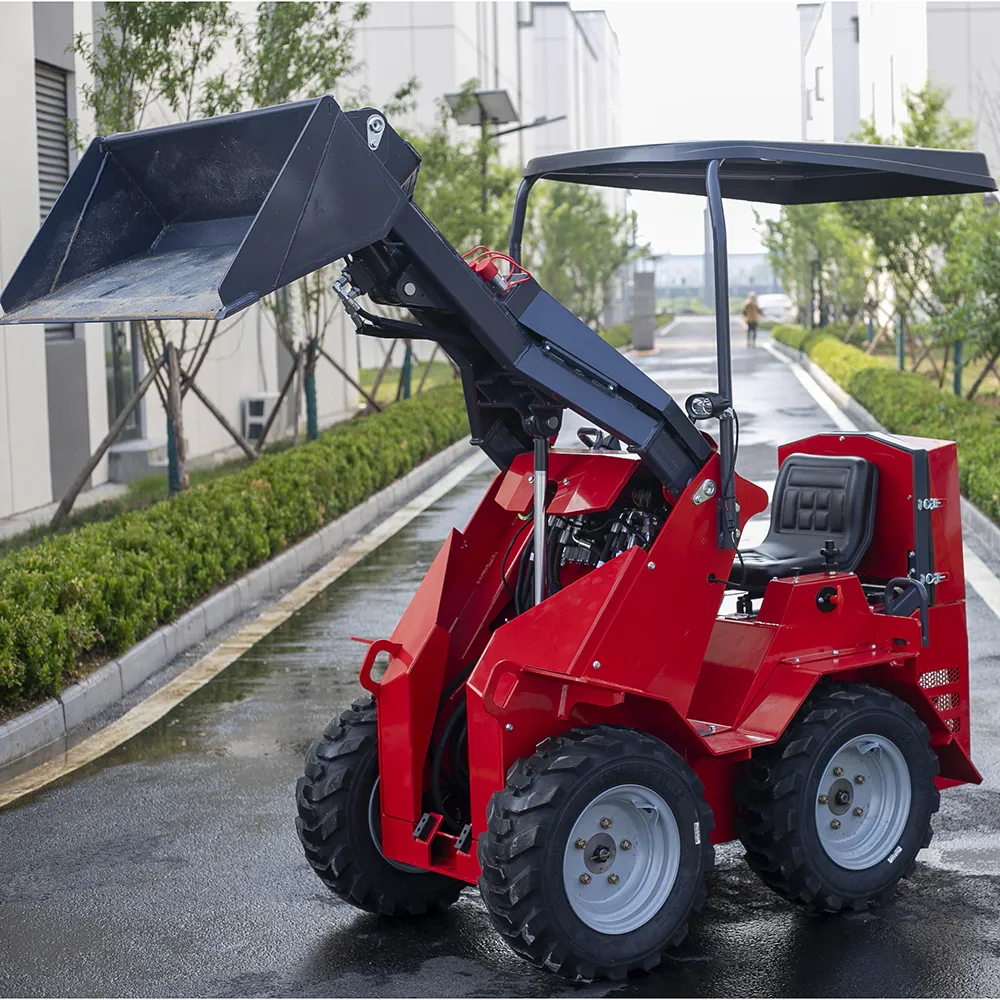

Side view of red mini skid steer loader with raised bucket, operator seat and canopy

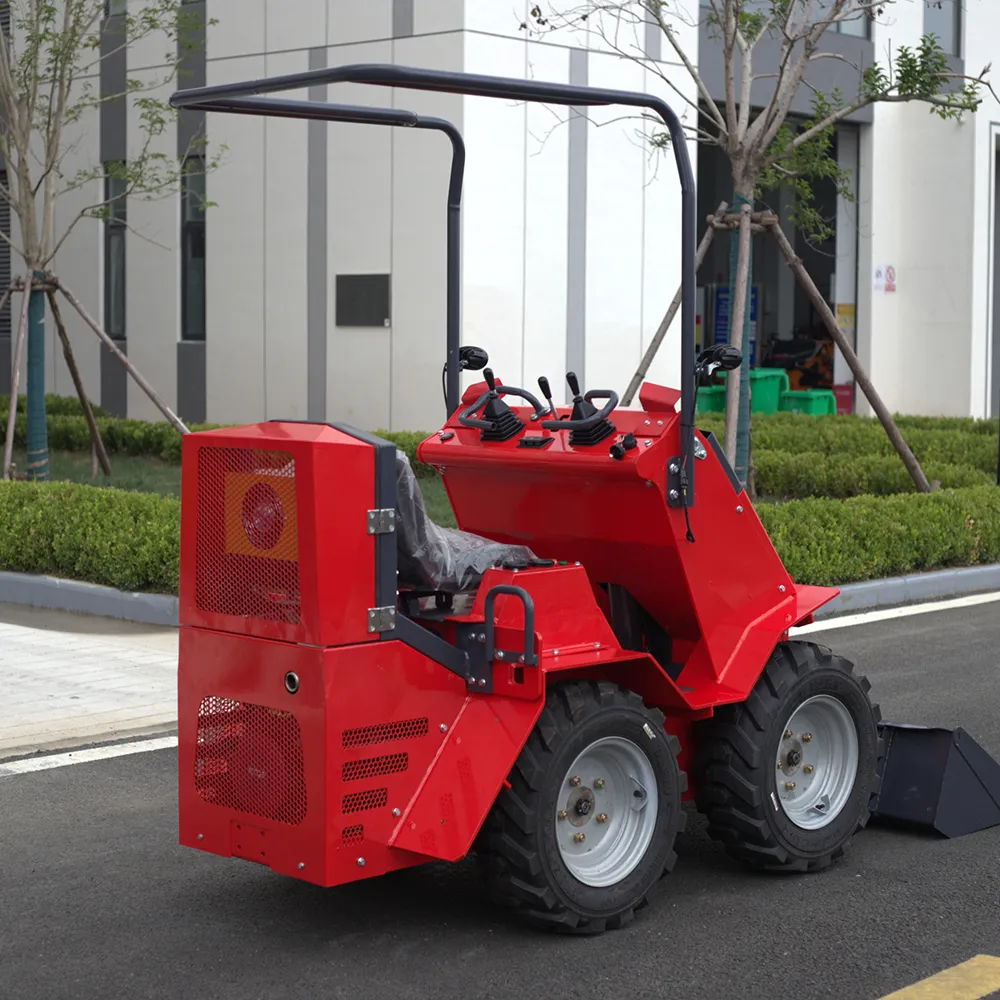

Rear view of red mini skid steer loader showing joystick controls, open canopy and engine compartment

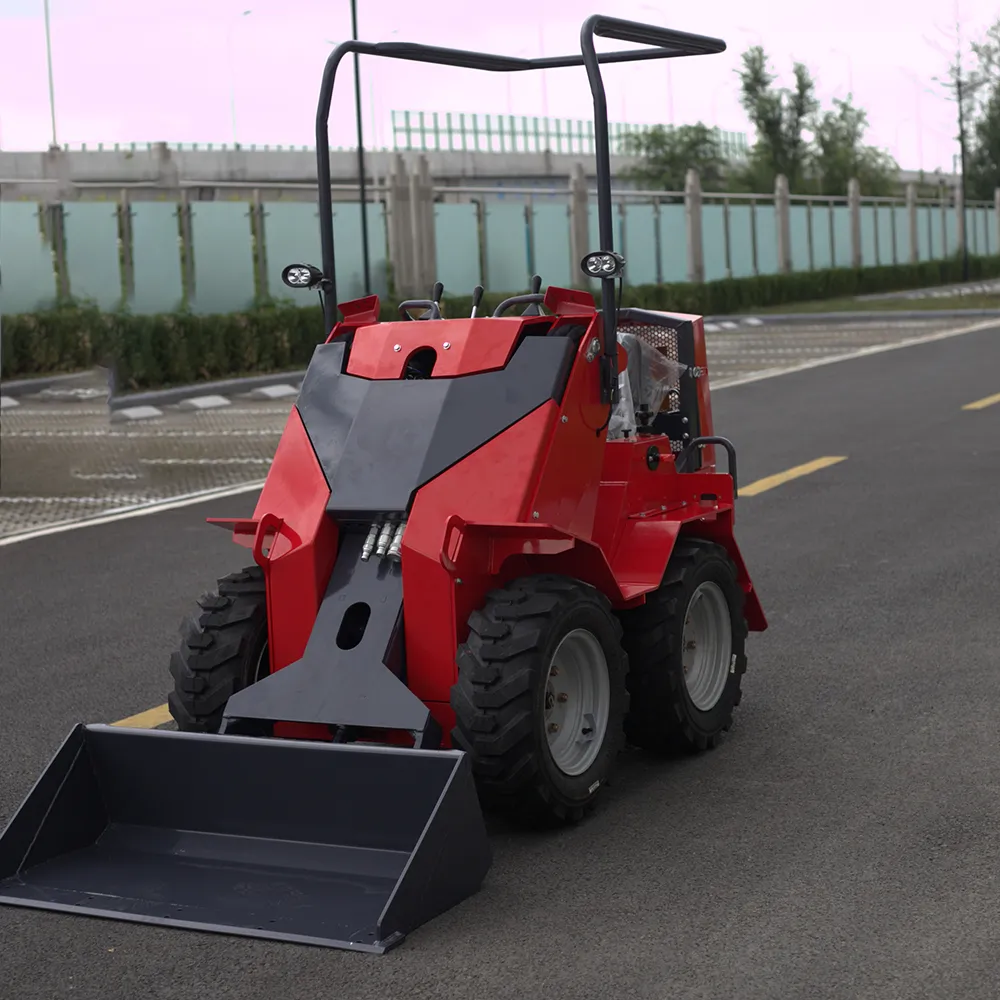

Front view of red mini skid steer loader with wide bucket, rugged tires and work lights

SN-S390 Compact Wheel Skid Steer Loader with High-Flow Pump

SN-S390 compact wheel skid steer loader features high-flow dual pump system, heavy-duty reinforced tires and easy operation. Built for versatile performance in small spaces, it’s perfect for construction and farm work.

Product Description

The SN-S390 is a compact wheel skid steer loader engineered for powerful performance, durability and easy operation. Designed to handle frequent work changes and varied job sites, it features a high-flow dual pump hydraulic system, heavy-duty reinforced tires and simple controls. The wheeled chassis offers flexible movement on different surfaces, while the compact size allows access to narrow spaces. Whether for construction material handling, farm yard work or landscaping projects, the SN-S390 delivers reliable, efficient performance with minimal maintenance.

Performance Characteristics

High-Flow Dual Pump Hydraulics

Equipped with a high-flow dual pump hydraulic system that provides enhanced power and responsiveness for lifting and digging tasks. The system ensures smooth, consistent operation even under heavy loads, improving work efficiency and supporting a wider range of attachments.

Heavy-Duty Reinforced Tires

Built with heavy-duty reinforced tires designed to withstand tough terrain and frequent use. These tires offer excellent grip, durability and puncture resistance, ensuring reliable performance on construction sites, farms and uneven ground.

Compact Wheel Design for Tight Spaces

The wheeled chassis and compact dimensions allow the loader to navigate narrow passages, small job sites and confined work areas where larger machines cannot reach. The wheeled design also offers faster travel speed and better maneuverability on paved or flat surfaces.

Easy & Intuitive Operation

Designed with simple controls and an ergonomic layout, the SN-S390 is easy to operate even for new users. The control joysticks and clear interface reduce the learning curve and operator fatigue, making long working hours more comfortable.

Durable Construction & Low Maintenance

Built with high-quality thick steel and anti-corrosion coating, the SN-S390 is rust-resistant and durable for long-term use. The simple structure and easy-access components reduce maintenance time and costs, ensuring maximum uptime.

Versatile Attachment Compatibility

Compatible with a range of attachments to expand functionality, including buckets, forks, augers, sweepers and more. The quick-attach system allows fast tool changes, making it suitable for construction, farming, landscaping and material handling tasks.

Product Specifications

Bucket Capacity	0.10 m³
Operating Weight	1050 kg
Climbing Ability	25°
Maximum Breakout Force	3.5 KN
Rated Load	200 kg
Maximum Load	300 kg
Travel Speed	0-6 km/h
Working System Pressure	17 bar
Max Loading Height	1830 mm
Max Dumping Height	1470 mm
Max Operating Height	2620 mm
Height to Bucket Pin	2000 mm
Max Bucket Dump Angle	63°
Min Height	1250 mm
Tail Length	220 mm
Ground Clearance	180 mm
Wheelbase	800 mm
Overall Dimensions	2400×1050×1250 mm
Engine Brand	B&S / Optional Lithium
Engine Rated Power	6kw-9.9kw
Emission Standard	EPA/EURO5
Fuel Tank Capacity	5 L

Standard Configuration

High-flow dual pump hydraulic system for enhanced power
Heavy-duty reinforced tires for tough terrain
Compact wheel chassis for narrow space maneuverability
Easy-to-use control system with simple operation
High-quality thick steel construction, anti-corrosion coating
Ergonomic operator platform with comfortable seating
Standard bucket attachment included
Low-maintenance design with easy-access components
EPA/EURO5 compliant engine for global use

Optional Configuration

Lithium electric engine upgrade
Quick attach system for fast tool changes
Forks, augers, sweepers, snow blowers and other attachments
Heavy-duty tires for rough terrain
Cab enclosure with heater and wiper
Enhanced lighting for low-light work conditions

Why Choose SN-S390?

High-Flow Hydraulics: Dual pump system delivers enhanced power and attachment support
Heavy-Duty Durability: Reinforced tires and robust build withstand tough conditions
Compact & Maneuverable: Fits in small spaces where larger loaders cannot operate
Easy Operation: Simple controls reduce learning curve and operator fatigue
Versatile Performance: Compatible with multiple attachments for construction, farming and landscaping
Low Maintenance: Simple design and easy-access components reduce service time
Factory Direct Supply: Competitive price with reliable quality assurance
Fast Global Shipping: In stock for prompt delivery to worldwide destinations
Professional After-Sales: Full support for parts replacement and technical service
