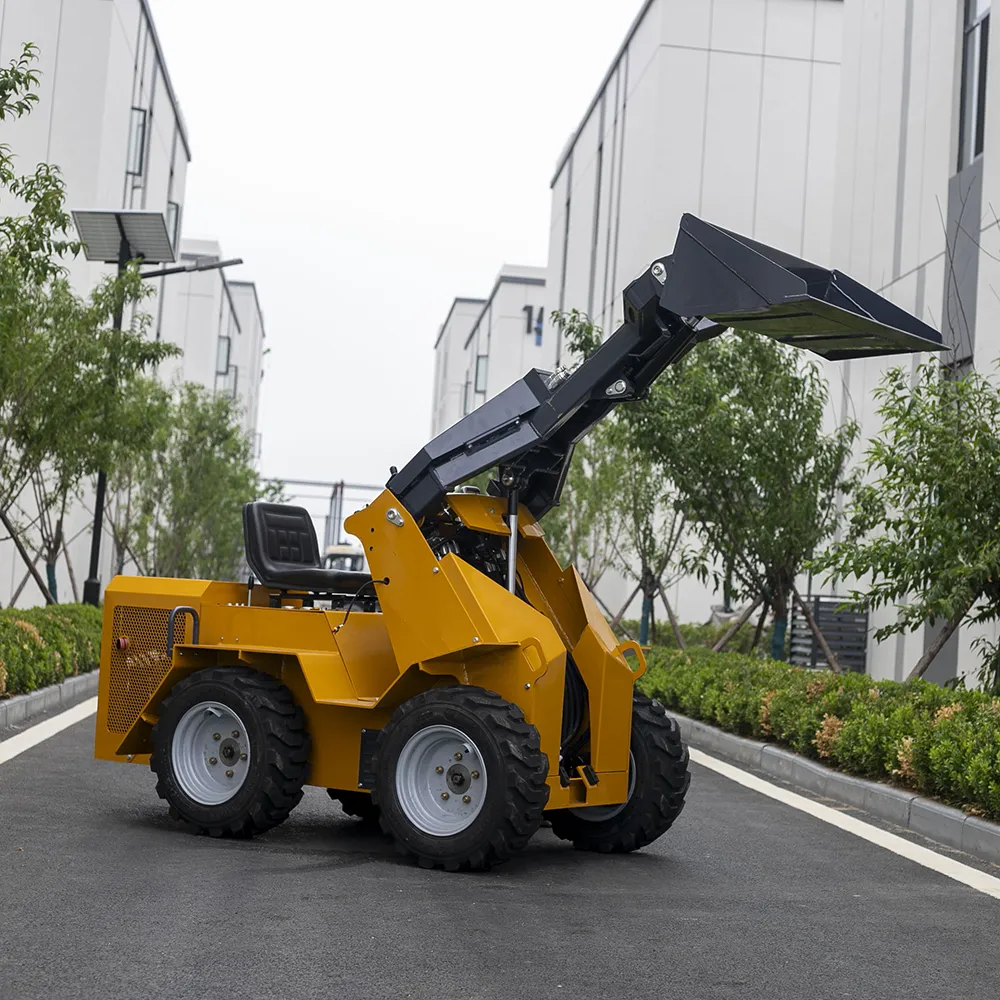

Side-rear view of yellow rider skid steer loader with raised bucket, operator seat and rugged tires

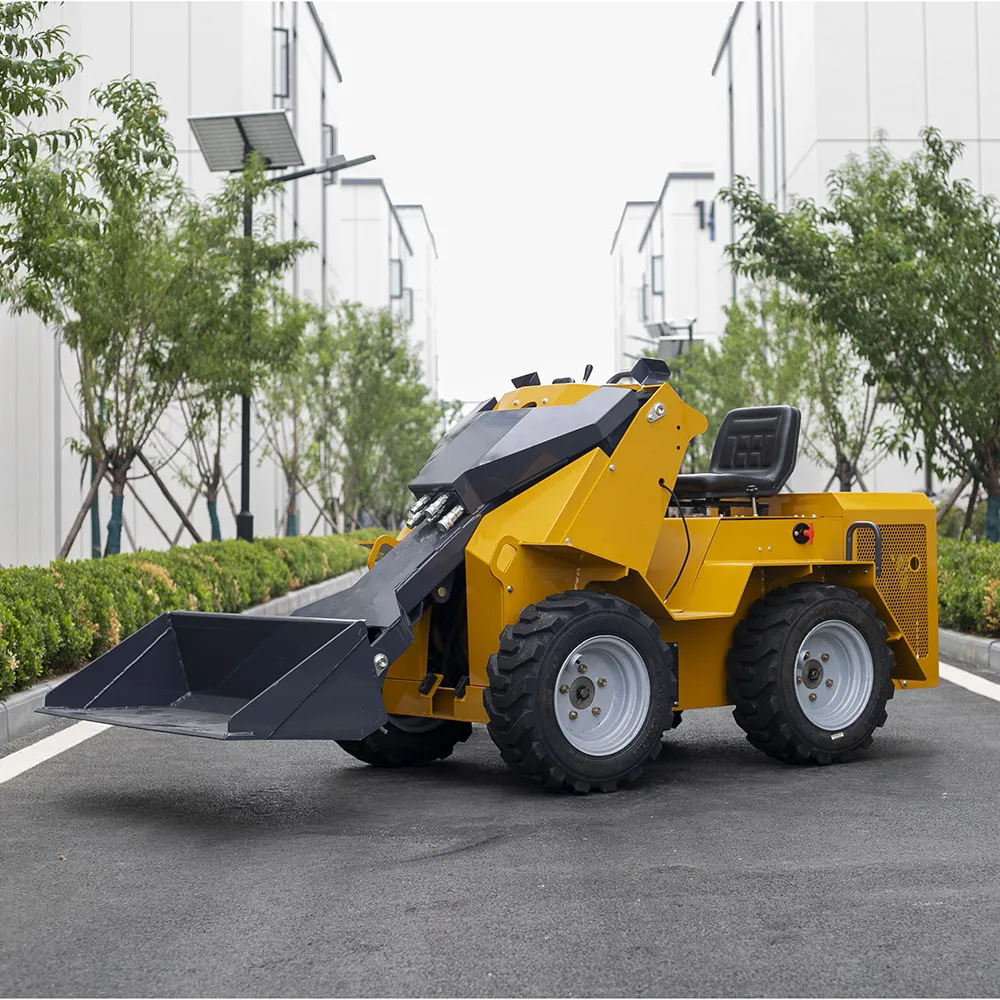

Side-front view of yellow ride-on skid steer loader with level bucket, operator seat and rugged tires

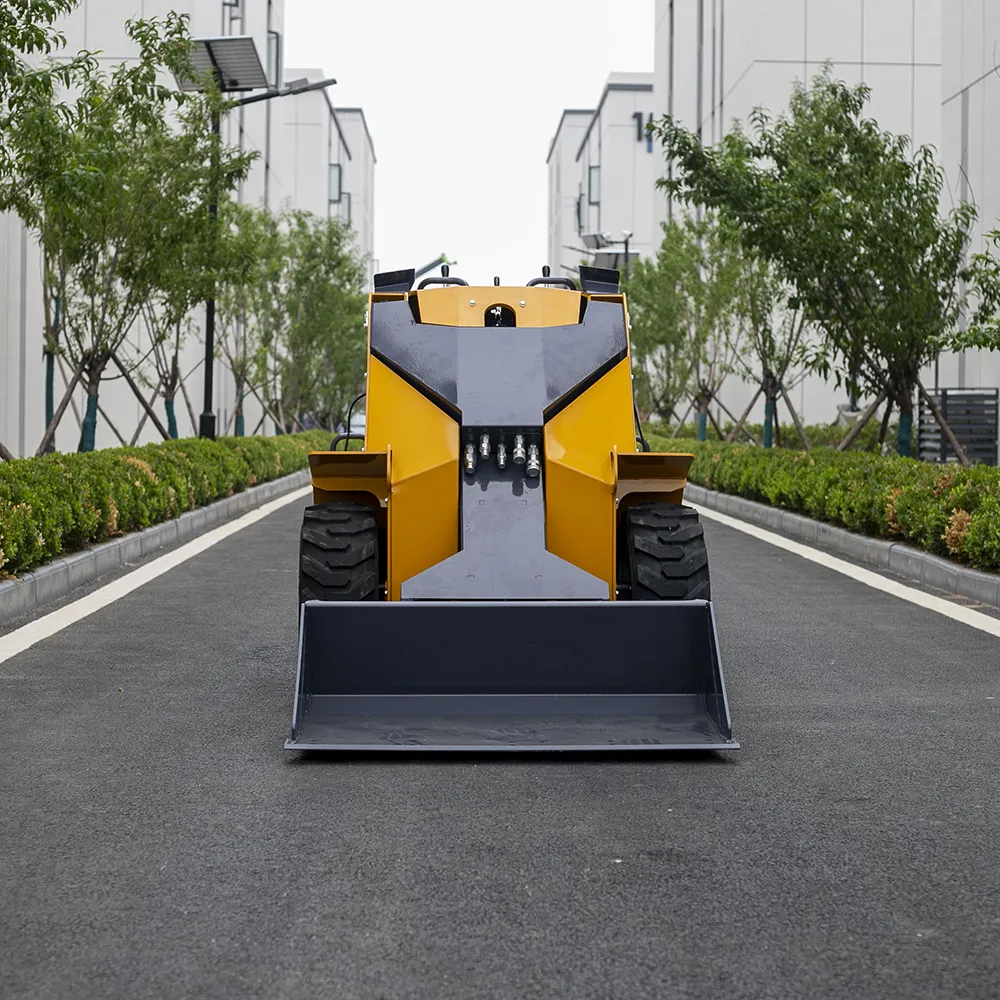

Front view of yellow ride-on skid steer loader with wide bucket, hydraulic fittings and rugged tires

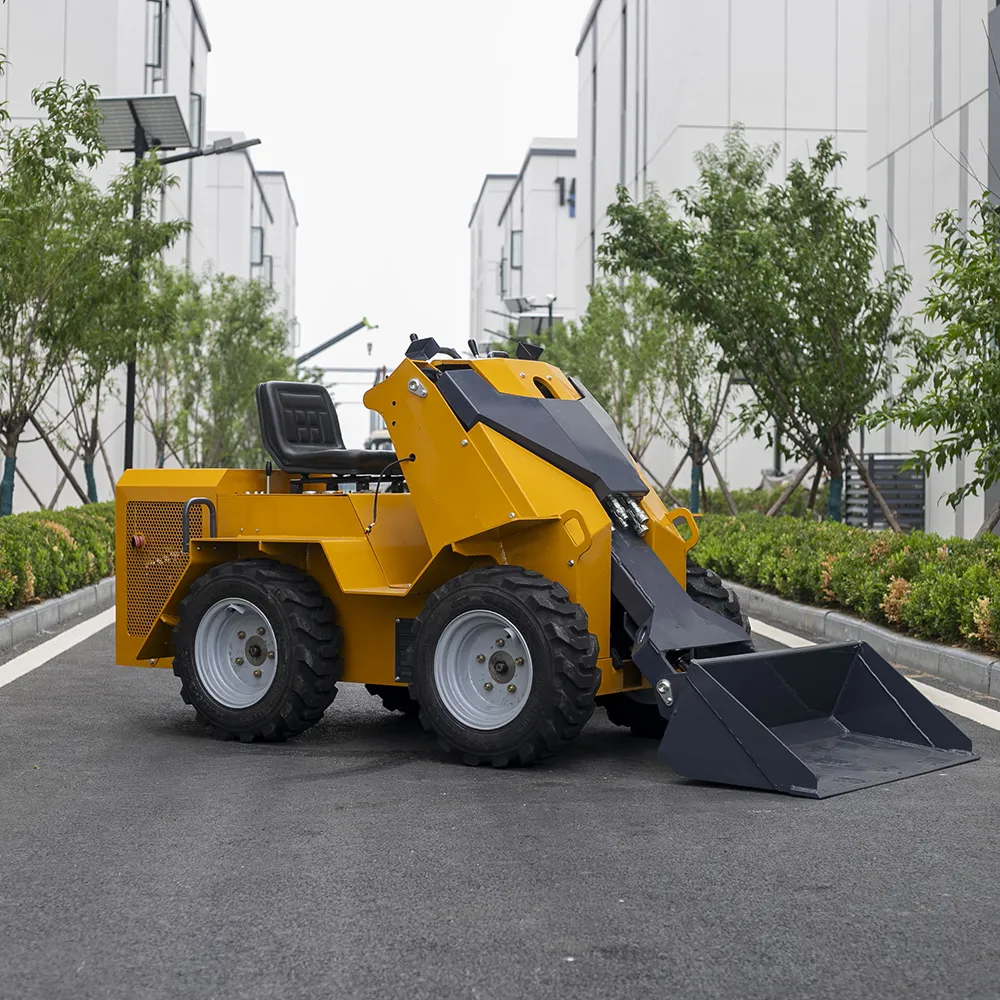

Side view of yellow ride-on skid steer loader with low bucket position, operator seat and rugged tires

SN-S490 High-Load Wheel Skid Steer Loader with High-Flow Pump

SN-S490 high-load wheel skid steer loader features high-flow dual pump system, heavy-duty reinforced tires and strong breakout force. Designed for heavy-duty material handling in small to medium construction and farm work.

Product Description

The SN-S490 is a high-load wheel skid steer loader built for demanding material handling and construction tasks. Equipped with a high-flow dual pump hydraulic system, it delivers responsive power and supports a wide range of attachments. Its heavy-duty reinforced tires ensure stability on rough terrain, while the compact wheelbase allows agile maneuverability in confined spaces. Whether loading trucks, moving bulk materials, or performing site cleanup, the SN-S490 combines high lifting capacity with user-friendly operation, making it ideal for farms, construction sites, and industrial applications.

Performance Characteristics

High-Load Capacity & Strong Breakout Force

Designed for heavy-duty tasks, the SN-S490 features a rated load of 250kg and maximum breakout force of 4.5KN. This power enables it to handle dense materials and challenging digging tasks with ease, outperforming standard loaders in medium-duty applications.

High-Flow Dual Pump Hydraulics

The standard high-flow dual pump system provides enhanced hydraulic power for both travel and attachment use. It ensures smooth, consistent operation even under heavy loads, reducing cycle times and improving work efficiency compared to basic pump configurations.

Heavy-Duty Reinforced Tires

Fitted with heavy-duty reinforced tires, the SN-S490 is built to withstand rough terrain, abrasion, and heavy use. These tires offer excellent traction and durability, ensuring reliable performance on construction sites, farm lanes, and uneven ground without frequent replacements.

B&S Engine for Reliable Power

Powered by a durable B&S engine, the SN-S490 delivers consistent performance with low maintenance requirements. The engine is known for its longevity and ease of service, providing sufficient horsepower to handle maximum workloads efficiently.

Compact & Agile Design

Despite its high-load capabilities, the SN-S490 maintains a compact overall dimension (2644×1089×1264mm). Its 360-degree rotating body and tight turning radius allow it to navigate narrow streets, residential backyards, and busy warehouse docks where larger equipment cannot access.

Product Specifications

Bucket Capacity	0.12 m³
Operating Weight	1200 kg
Climbing Ability	25°
Maximum Breakout Force	4.5 KN
Rated Load	250 kg
Maximum Load	350 kg
Travel Speed	0-6 km/h
Working System Pressure	17-21 bar
Max Loading Height	2570 mm
Max Dumping Height	1933 mm
Max Operating Height	2700 mm
Height to Bucket Pin	1933 mm
Max Bucket Dump Angle	63°
Min Height	1300 mm
Tail Length	500 mm
Ground Clearance	180 mm
Wheelbase	925 mm
Overall Dimensions	2644×1089×1264 mm
Engine Brand	B&S / Lithium Electric
Engine Rated Power	17.5 kw / 23.7 HP
Emission Standard	EURO5 / EPA
Fuel Tank Capacity	10 L

Standard Configuration

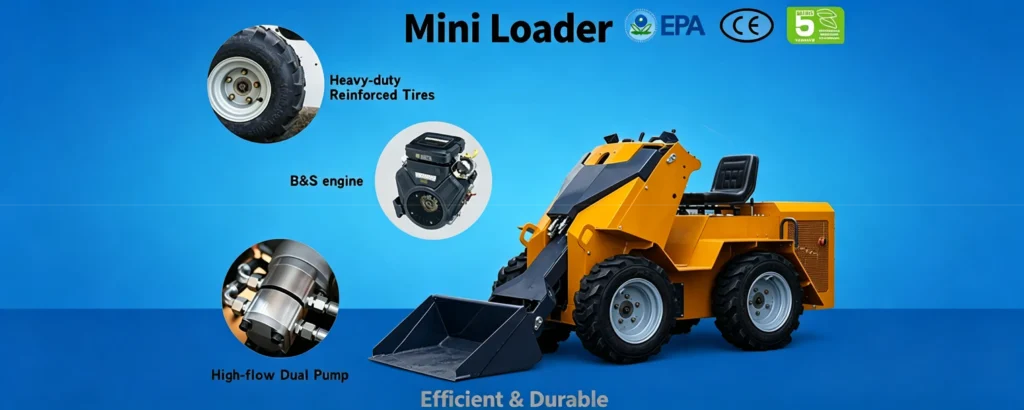

High-flow dual pump hydraulic system for enhanced power
Heavy-duty reinforced tires for durable traction
B&S engine with reliable performance and low maintenance
Standard bucket attachment for general-purpose use
360-degree rotating body for tight-space maneuverability
Anti-rust spray-molded body for long service life
Simple operation system with intuitive controls

Optional Configuration

Lithium electric engine upgrade (48V/72V)
Quick attach system for fast attachment changes
Forks, grapples, augers, sweepers, and snow blowers
Enclosed cabin with heater and wipers for all-weather operation
Enhanced LED lighting packages for night work
Solid tires or turf tires for specific terrain needs

Why Choose SN-S490?

High-Load Capacity: Outperforms standard loaders in lifting and material handling tasks
High-Flow Hydraulics: Dual pump system delivers responsive power for attachments and heavy loads
Rugged Build: Heavy-duty tires and reinforced components stand up to tough conditions
Versatile Attachment Support: Compatible with a wide range of tools to expand functionality
Compact & Agile: Fits in small spaces while delivering professional-grade power
Proven Reliability: B&S engine and durable construction minimize downtime
Factory Direct Pricing: Competitive rates with quality assurance
Global Shipping: Fast delivery to international destinations

👉Contact us today for a quote or more information!
