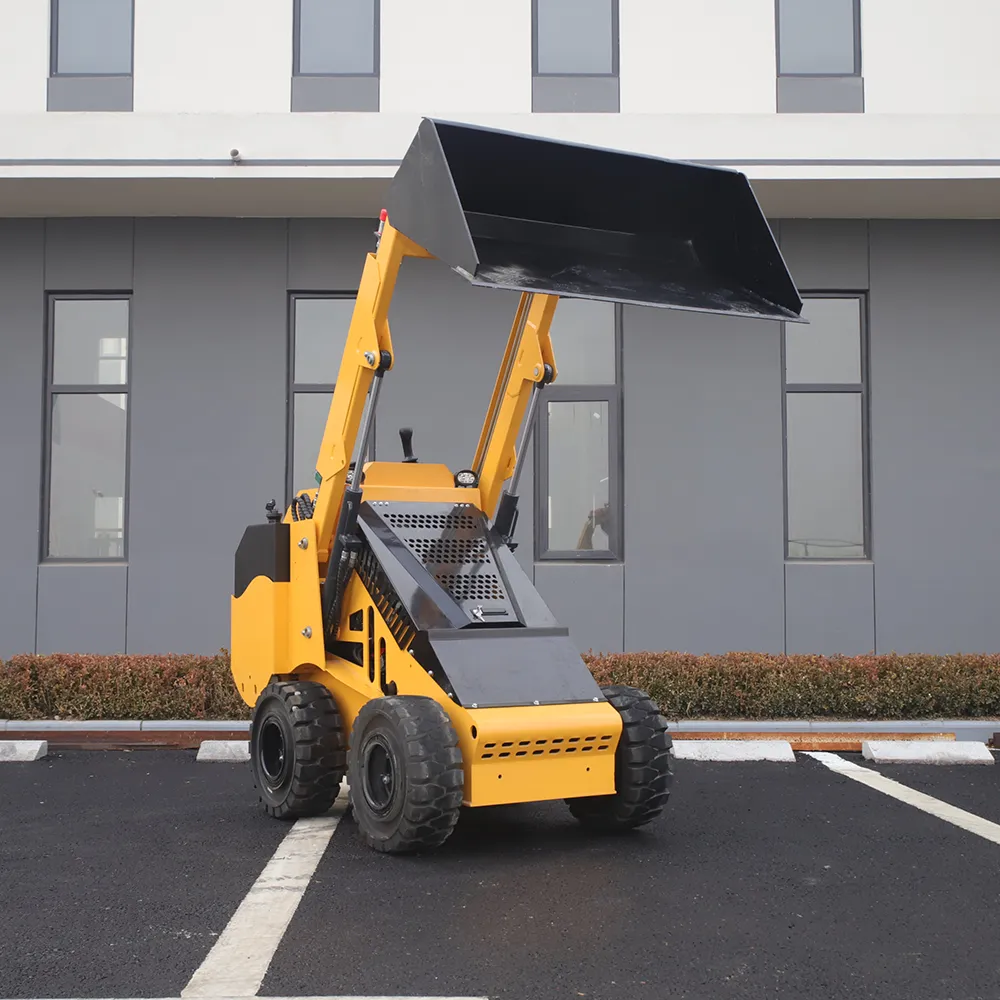

Side-rear view of yellow mini skid steer loader with high-lift bucket, rugged tires and compact body

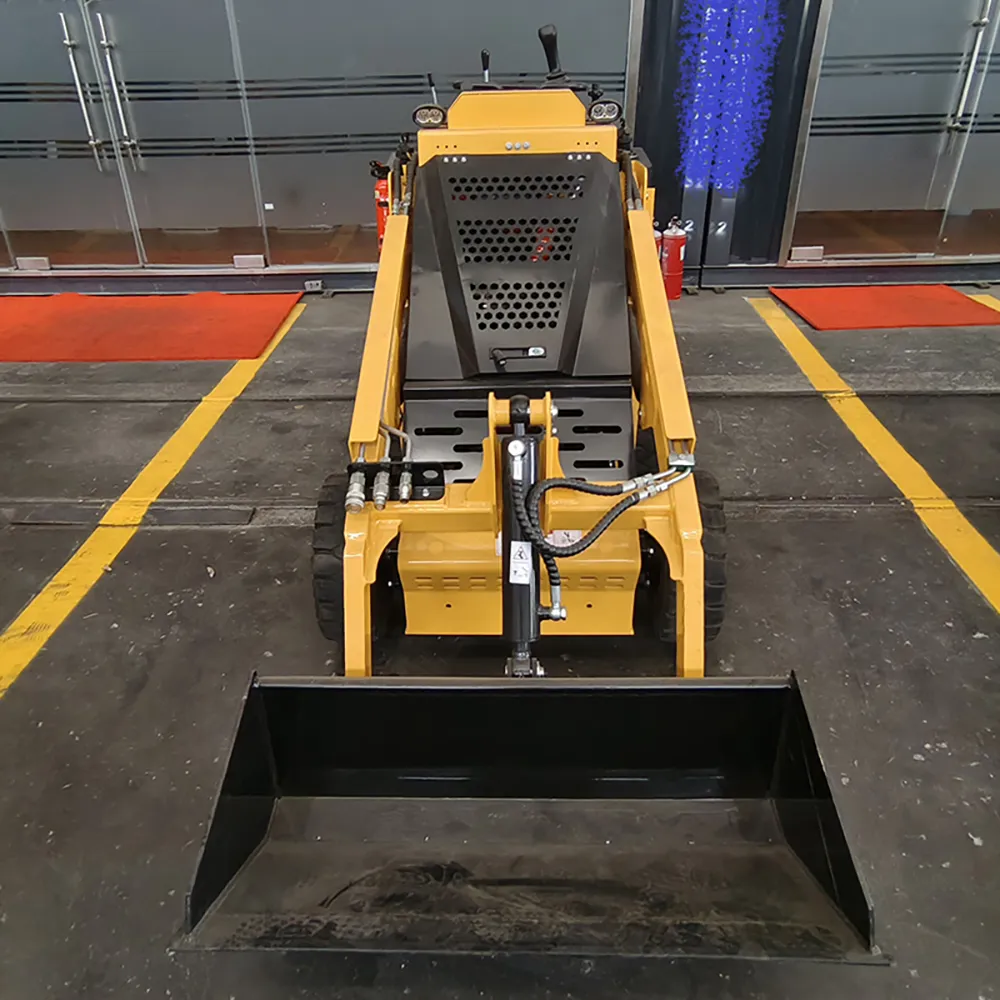

Front view of yellow mini skid steer loader with wide bucket, hydraulic lines and work lights

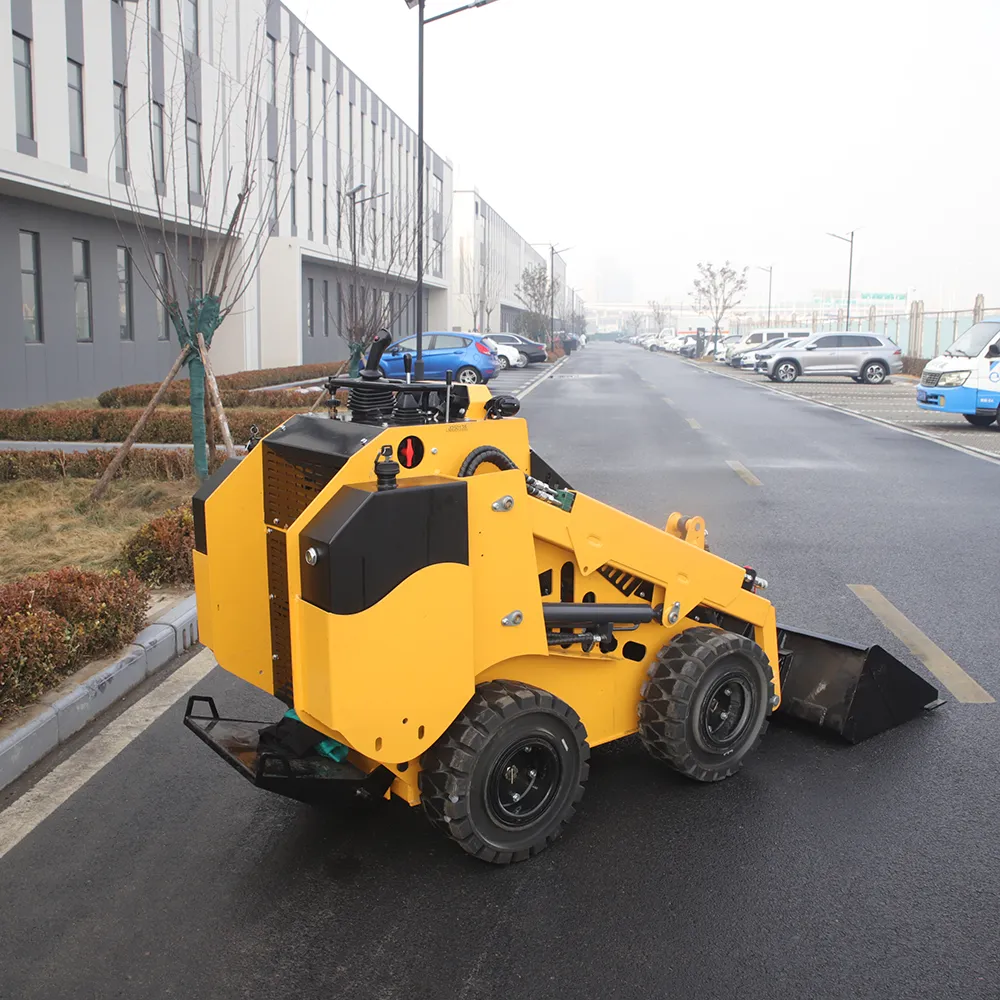

Side-rear view of yellow mini skid steer loader on asphalt road, with parking lot and vehicles in background

Side view of yellow mini skid steer loader with low bucket position, hydraulic lines and red safety components

SN-S750 Heavy-Duty Wheel Skid Steer Loader with Solid Tires

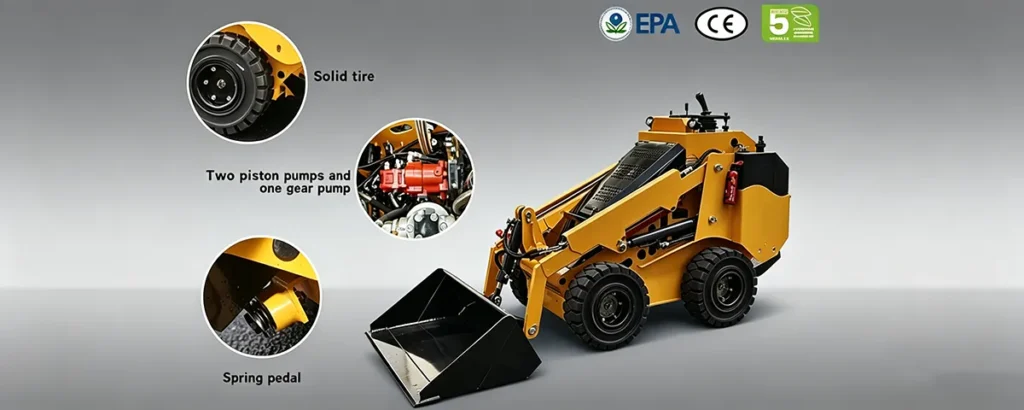

SN-S750 heavy-duty wheel skid steer loader features solid puncture-proof tires, two-piston pump system and spring pedal. Built for long-lasting performance in harsh construction and industrial environments.

Product Description

The SN-S750 is a heavy-duty wheel skid steer loader engineered for tough construction, industrial and demolition applications. Designed to handle debris, sharp materials and non-stop operation, it features solid puncture-proof tires, a robust two-piston pump system and spring pedal. The heavy-duty build and industrial-grade components ensure reliable performance in the harshest conditions, while its compact wheelbase allows maneuverability in tight job sites. Whether for material handling, site cleanup or industrial yard work, the SN-S750 delivers durable, consistent power with minimal downtime.

Performance Characteristics

Solid Puncture-Proof Tires

Fitted with heavy-duty solid tires, the SN-S750 eliminates the risk of flats from debris, nails and sharp materials. These puncture-proof tires are built to withstand harsh construction and demolition environments, ensuring continuous operation without tire-related downtime.

Robust Two-Piston Pump System

Equipped with two piston pumps and one gear pump, the hydraulic system delivers reliable power and responsive performance for lifting, digging and attachment use. The robust pump design is built for heavy loads and long-hour operation, maintaining consistent pressure even under demanding conditions.

Spring Pedal for Smooth Operation

The spring pedal system provides smooth, controlled operation, reducing operator fatigue during long work sessions. The ergonomic design ensures comfortable use while maintaining precise control over the loader’s functions.

Heavy-Duty Industrial Build

Constructed with thick, high-quality steel and anti-corrosion coating, the SN-S750 is built to withstand the rigors of industrial use. The reinforced frame and components are designed for heavy loads and frequent use, ensuring long service life in tough environments.

Compact & Agile Design

Despite its heavy-duty capabilities, the SN-S750 maintains a compact overall dimension (2700×1270×1550mm). Its 360-degree rotating body and tight turning radius allow it to navigate narrow construction sites, industrial yards and demolition areas where larger equipment cannot access.

Product Specifications

Bucket Capacity	0.15 m³
Operating Weight	1400 kg
Climbing Ability	25°
Maximum Breakout Force	4.5 KN
Rated Load	400 kg
Maximum Load	450 kg
Travel Speed	0-6 km/h
Working System Pressure	25 bar
Max Loading Height	2920 mm
Max Dumping Height	2300 mm
Max Operating Height	3100 mm
Height to Bucket Pin	2300 mm
Max Bucket Dump Angle	63°
Min Height	1550 mm
Tail Length	500 mm
Ground Clearance	240 mm
Wheelbase	860 mm
Overall Dimensions	2700×1270×1550 mm
Engine Brand	Yanmar / Kubota / Electric
Engine Rated Power	14 kw / 18.8 HP
Emission Standard	EURO5 / EPA
Fuel Tank Capacity	30 L

Standard Configuration

Solid puncture-proof tires for harsh environments
Robust two-piston pump hydraulic system for heavy-duty performance
Spring pedal system for smooth, comfortable operation
Heavy-duty industrial steel construction with anti-corrosion coating
Standard bucket attachment for debris and material handling
360-degree rotating body for tight-space maneuverability
Simple operation system with intuitive controls

Optional Configuration

Electric engine upgrade (48V/72V)
Quick attach system for fast attachment changes
Forks, grapples, augers, sweepers and other attachments
Enclosed cabin with heater and wipers for all-weather operation
Enhanced LED lighting packages for night work
Additional hydraulic circuits for specialized attachments

Why Choose SN-S750?

Solid Tire Advantage: Puncture-proof tires eliminate downtime in debris-filled environments
Heavy-Duty Hydraulics: Robust pump system handles continuous heavy loads with ease
Industrial-Grade Build: Reinforced construction withstands harsh construction and industrial use
Spring Pedal Comfort: Reduces operator fatigue during long work sessions
Compact & Agile: Fits in tight job sites while delivering heavy-duty power
Versatile Attachment Support: Compatible with a wide range of tools for industrial applications
Low Maintenance: Durable components and easy-access design reduce service time
Factory Direct Supply: Competitive price with reliable quality assurance
