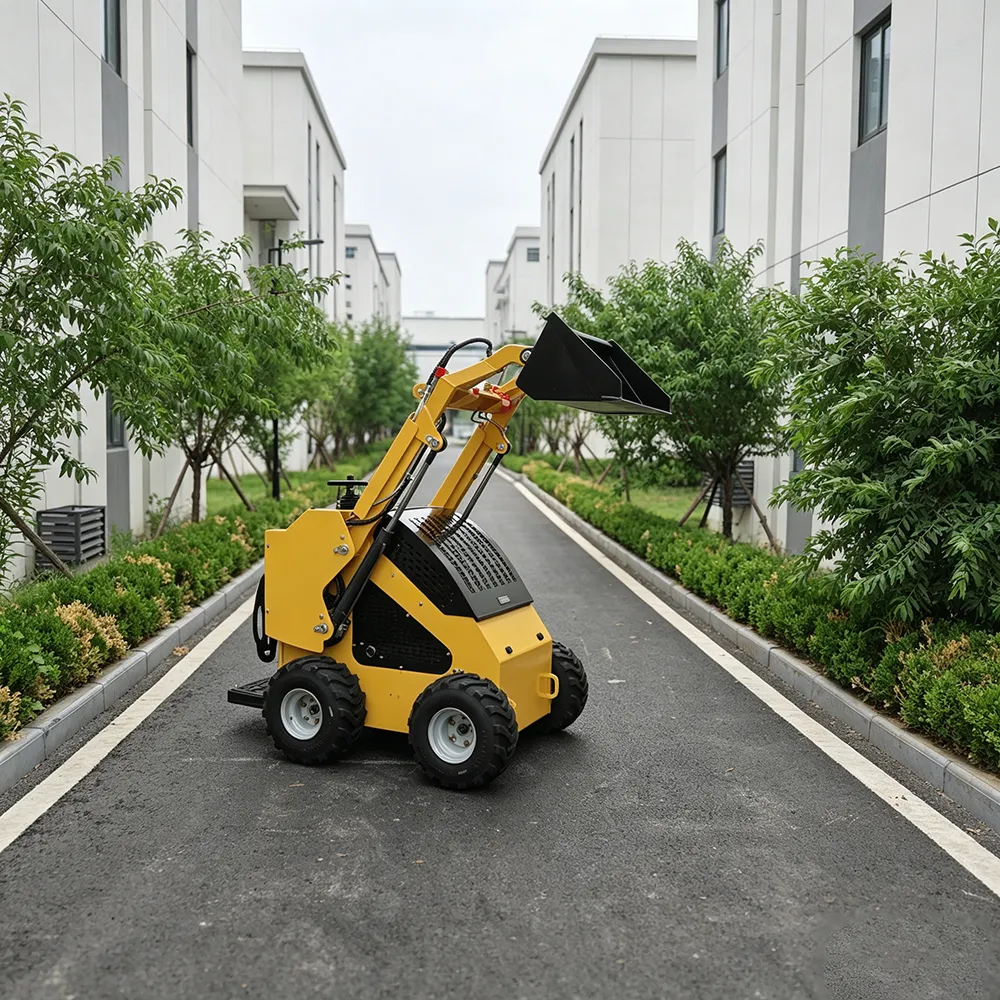

Side view of yellow mini skid steer loader with raised bucket and rugged tires

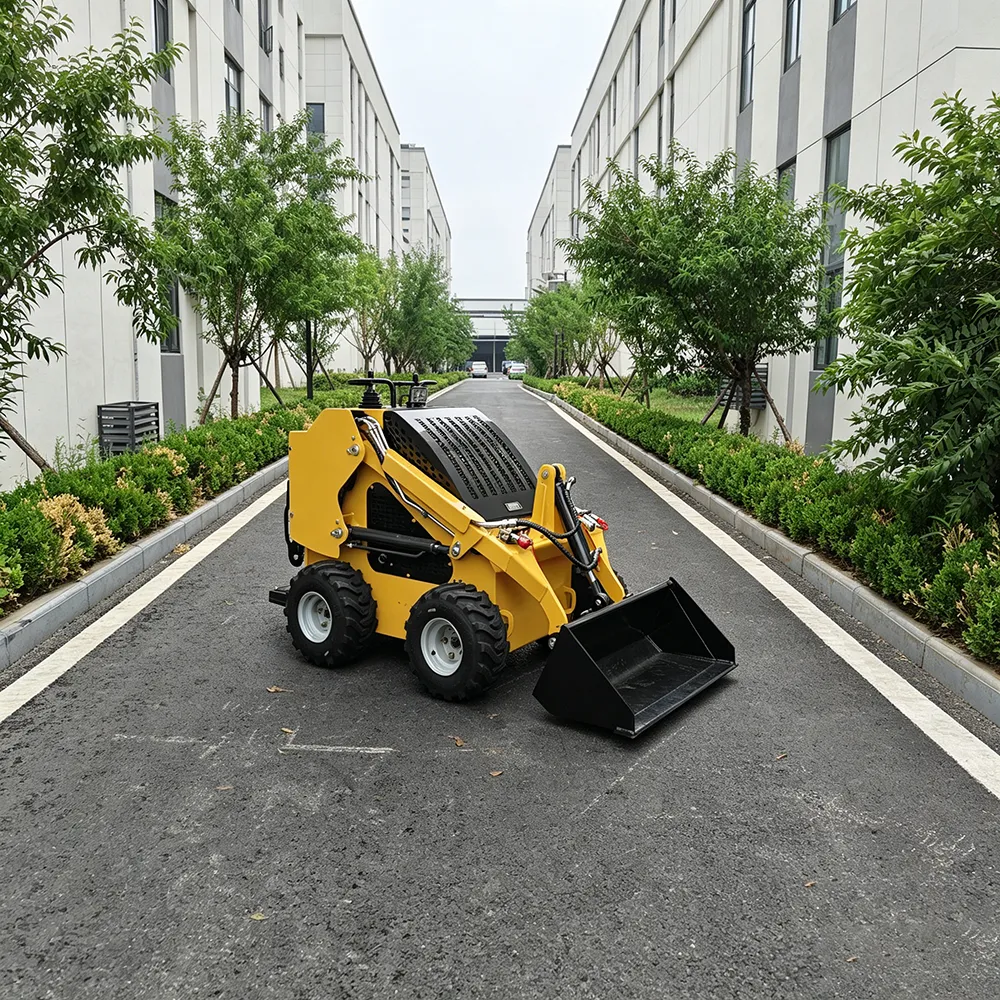

Side-rear view of yellow mini skid steer loader with level bucket and operator controls

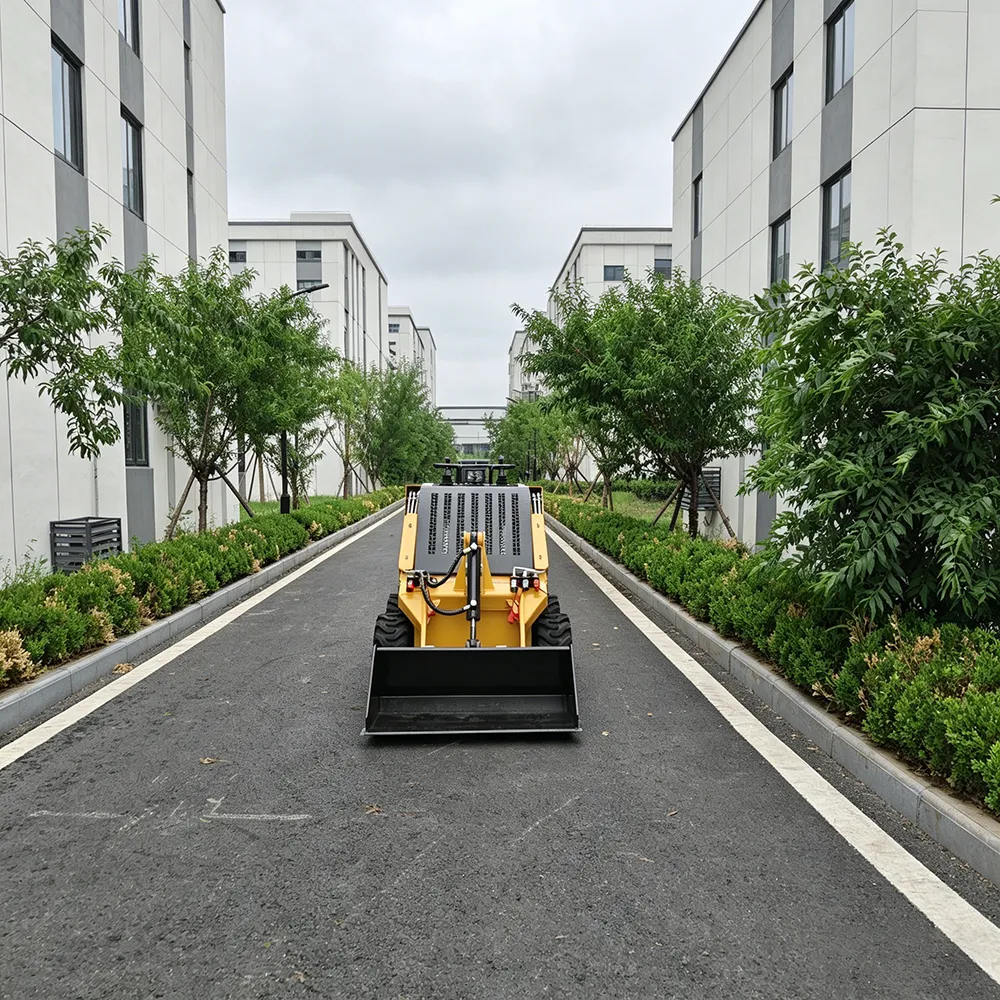

Front view of yellow mini skid steer loader with wide bucket, cooling vents and rugged tires

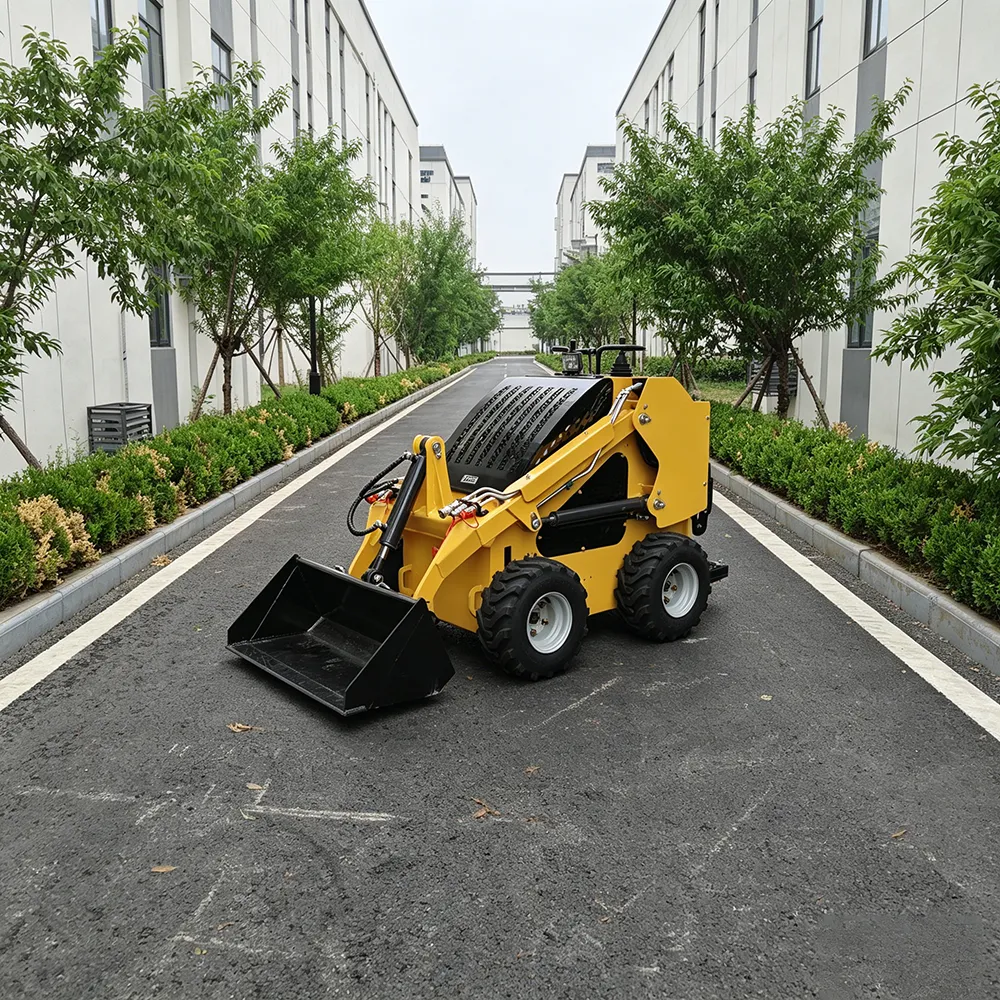

Side view of yellow mini skid steer loader with low bucket position, hydraulic lines and rugged tires

SN-S480 High-Performance Wheel Skid Steer Loader with Hydraulic Cooler

SN-S480 high-performance wheel skid steer loader features hydraulic oil cooler, heavy-duty tires and optional self-balancing arm. Designed for consistent power and long service life in construction and farm work.

Product Description

The SN-S480 is a high-performance wheel skid steer loader engineered for sustained power, heavy-duty operation and long service life. Designed to handle long-hour tasks and demanding conditions, it features a high-efficiency hydraulic oil cooler, Yanmar engine and optional self-balancing arm. The heavy-duty reinforced tires and compact wheel chassis ensure reliable performance in construction sites, farms and industrial applications. Whether for material handling, digging or attachment work, the SN-S480 delivers stable, efficient performance even under continuous use.

Performance Characteristics

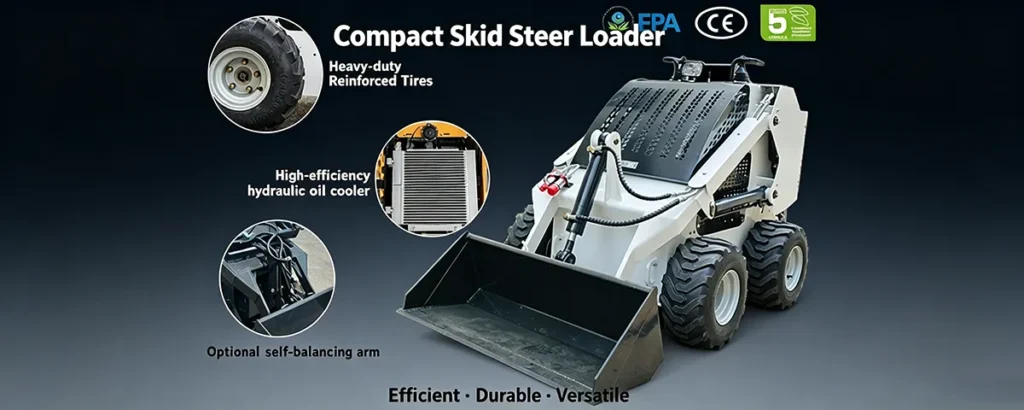

High-Efficiency Hydraulic Oil Cooler

The standard hydraulic oil cooler prevents overheating during long-hour or high-load operation, maintaining consistent hydraulic performance and extending component life. This feature makes the SN-S480 ideal for extended work sessions, reducing downtime caused by overheating.

Optional Self-Balancing Arm

The optional self-balancing arm enhances lifting stability and safety, preventing tipping during heavy load handling. This feature is particularly useful when working at maximum load capacity or on uneven ground, adding confidence to every task.

Yanmar Engine for Reliable Power

Powered by a durable Yanmar engine, the SN-S480 ensures consistent performance and easy maintenance. The engine is renowned for its longevity and low fuel consumption, delivering sufficient horsepower (17.8kW/23.8HP) to handle maximum workloads with minimal service needs.

Heavy-Duty Reinforced Tires

Fitted with heavy-duty reinforced tires, the SN-S480 is built to withstand rough terrain, frequent use and heavy loads. These tires offer excellent grip, durability and puncture resistance, ensuring reliable performance on construction sites, farms and uneven ground.

Compact & Agile Design

Despite its high-performance capabilities, the SN-S480 maintains a compact overall dimension (2169×1130×1300mm). Its 360-degree rotating body and tight turning radius allow it to navigate narrow streets, residential backyards and busy warehouse docks where larger equipment cannot access.

Product Specifications

Bucket Capacity	0.12 m³
Operating Weight	1200 kg
Climbing Ability	25°
Maximum Breakout Force	5.5 KN
Rated Load	350 kg
Maximum Load	450 kg
Travel Speed	0-6 km/h
Working System Pressure	17-21 bar
Max Loading Height	2450 mm
Max Dumping Height	1870 mm
Max Operating Height	2600 mm
Height to Bucket Pin	1870 mm
Max Bucket Dump Angle	63°
Min Height	1300 mm
Tail Length	500 mm
Ground Clearance	160 mm
Wheelbase	800 mm
Overall Dimensions	2169×1130×1300 mm
Engine Brand	Yanmar
Engine Rated Power	17.8 kw / 23.8 HP
Emission Standard	EURO5 / EPA
Fuel Tank Capacity	13 L

Standard Configuration

High-efficiency hydraulic oil cooler for sustained performance
Yanmar engine for reliable power and low maintenance
Heavy-duty reinforced tires for tough terrain
Compact wheel chassis for narrow space maneuverability
Simple operation system with intuitive controls
High-quality thick steel construction, anti-corrosion coating
Standard bucket attachment included

Optional Configuration

Self-balancing arm upgrade for enhanced lifting stability
Quick attach system for fast attachment changes
Forks, grapples, augers, sweepers and other attachments
Enclosed cabin with heater and wipers for all-weather operation
Enhanced LED lighting packages for night work
Solid tires or turf tires for specific terrain needs

Why Choose SN-S480?

Hydraulic Cooling Advantage: Built-in oil cooler prevents overheating during long-hour use
Reliable Yanmar Power: Proven engine performance for consistent work
Optional Self-Balancing Arm: Enhances safety and stability for heavy loads
Heavy-Duty Durability: Reinforced tires and robust build withstand tough conditions
Compact & Agile: Fits in small spaces while delivering high-performance power
Versatile Attachment Support: Compatible with a wide range of tools to expand functionality
Low Maintenance: Durable components and easy-access design reduce service time
Factory Direct Supply: Competitive price with reliable quality assurance
