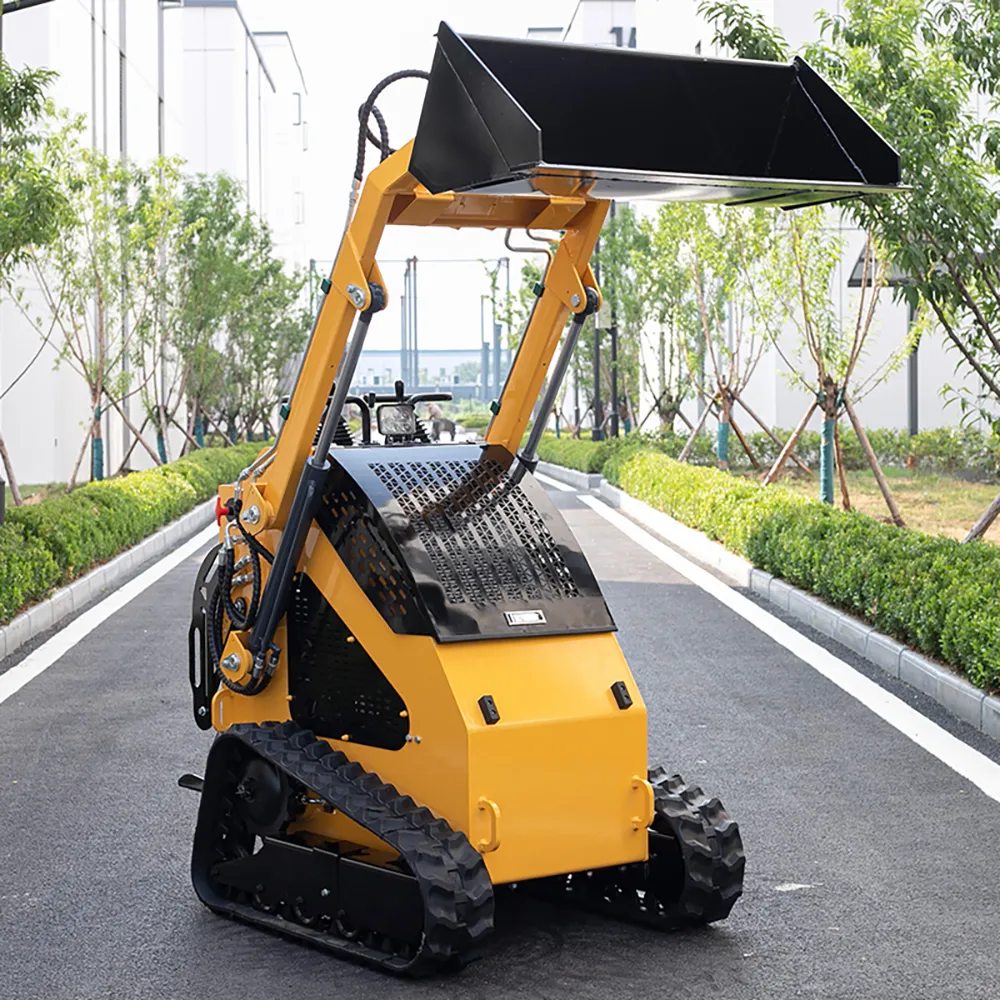

Front view of yellow tracked mini skid steer loader with high-lift bucket and rugged rubber tracks

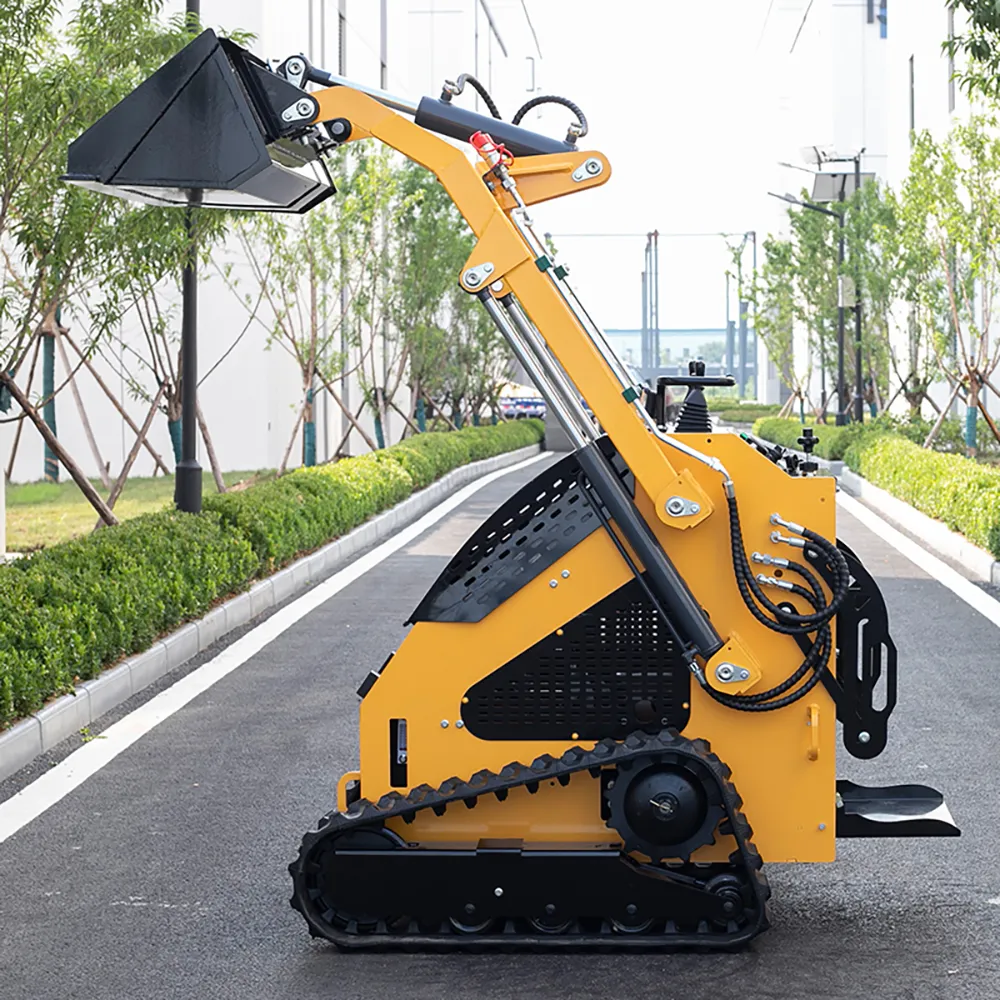

Side view of yellow tracked mini skid steer loader with raised bucket, hydraulic lines and tracks

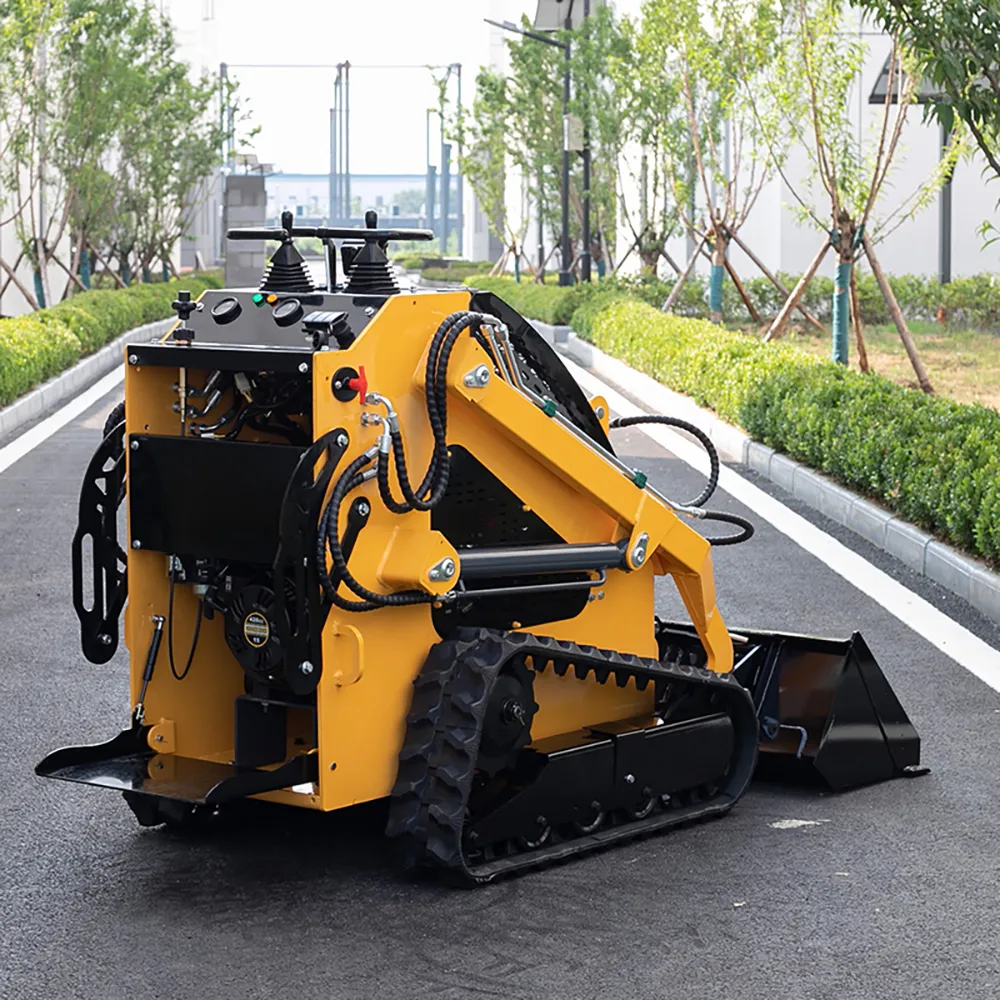

Side-rear view of yellow tracked mini skid steer loader showing joystick controls, engine compartment and tracks

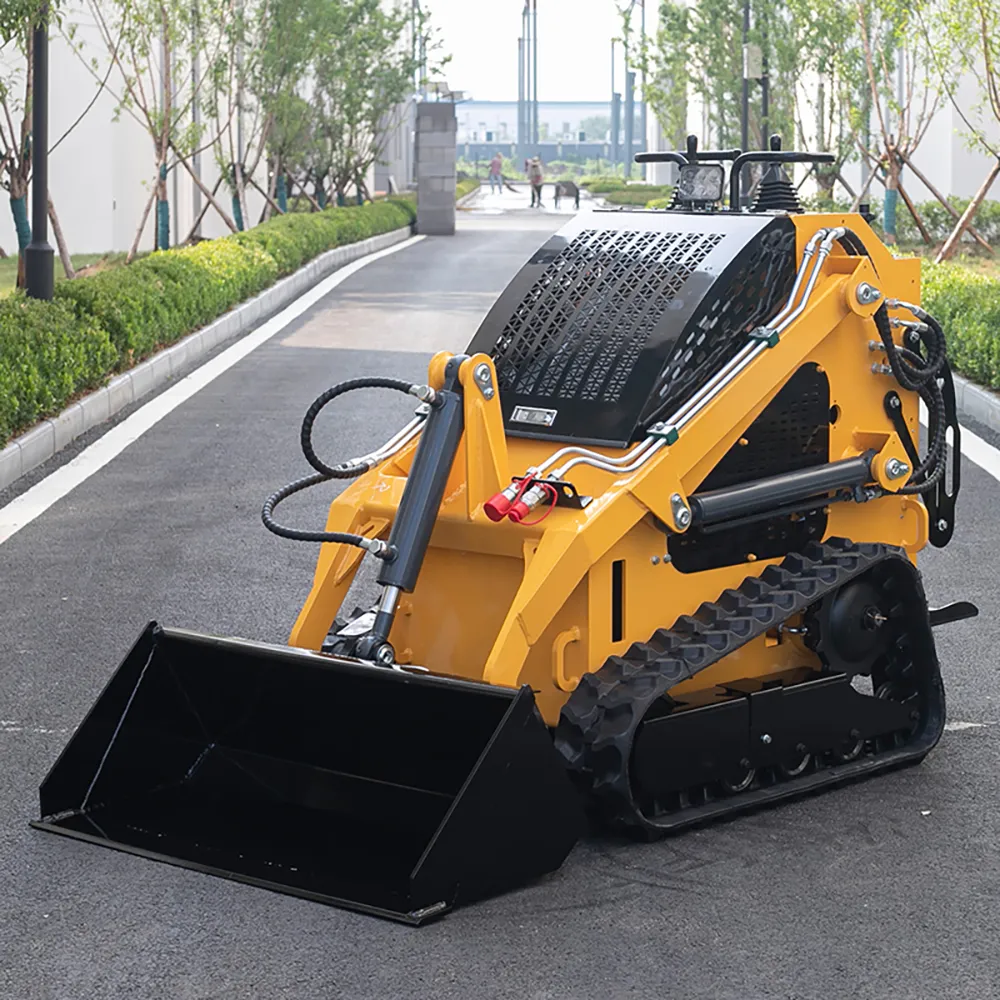

yellow-tracked-mini-skid-steer-loader-side-front-view-with-level-bucket

SN-T360 Compact Track Skid Steer Loader with Triangular Rubber Tracks

SN-T360 compact track skid steer loader features high-stability triangular rubber tracks, hydraulic oil cooler and durable travel motor. Built for reliable performance on uneven ground, it’s perfect for landscaping, construction and farm work.

Product Description

The SN-T360 is a compact track skid steer loader designed for reliable performance on uneven terrain and challenging ground conditions. Equipped with high-stability triangular rubber tracks, it delivers superior traction and stability compared to wheeled models, making it ideal for landscaping, construction and farm work. The hydraulic oil cooler prevents overheating during long-hour use, while the durable travel motor ensures smooth, consistent operation. Whether working on slopes, mud or rough ground, the SN-T360 provides agile maneuverability and dependable power in confined spaces.

Performance Characteristics

High-Stability Triangular Rubber Tracks

Fitted with high-stability triangular rubber tracks, the SN-T360 offers superior traction, low ground pressure and enhanced stability on uneven, muddy or sloped terrain. The track design reduces slippage and provides a smoother ride, making it ideal for sensitive surfaces like lawns and landscaping projects.

High-Efficiency Hydraulic Oil Cooler

The standard hydraulic oil cooler prevents overheating during long-hour or continuous operation, maintaining consistent hydraulic performance and extending component life. This feature ensures reliable performance even in warm climates or extended work sessions.

High-Quality Travel Motor

Equipped with a durable travel motor, the SN-T360 delivers smooth, powerful movement across various terrains. The motor is built for long service life and low maintenance, ensuring reliable operation in demanding conditions.

Compact & Agile Design

Despite its track configuration, the SN-T360 maintains a compact overall dimension (2070×1050×1300mm). Its 360-degree rotating body and tight turning radius allow it to navigate narrow spaces, residential backyards and confined job sites where larger equipment cannot access.

Simple & Intuitive Operation

Designed with user-friendly controls and an ergonomic layout, the SN-T360 is easy to operate even for new users. The control interface reduces the learning curve and operator fatigue, making long working hours more comfortable.

Product Specifications

Bucket Capacity	0.12 m³
Operating Weight	900 kg
Climbing Ability	25°
Maximum Breakout Force	3.5 KN
Rated Load	200 kg
Maximum Load	300 kg
Travel Speed	0-6 km/h
Working System Pressure	17-21 bar
Max Loading Height	2400 mm
Max Dumping Height	1870 mm
Max Operating Height	2600 mm
Height to Bucket Pin	1870 mm
Max Bucket Dump Angle	63°
Min Height	1300 mm
Tail Length	500 mm
Ground Clearance	130 mm
Track Contact Length	900 mm
Overall Dimensions	2070×1050×1300 mm
Engine Brand	B&S / Lithium Electric
Engine Rated Power	9.9 kw / 13.3 HP
Emission Standard	EURO5 / EPA
Fuel Tank Capacity	5 L

Standard Configuration

High-stability triangular rubber tracks for superior traction
High-efficiency hydraulic oil cooler for sustained performance
Durable travel motor for smooth, reliable movement
Standard bucket attachment for general-purpose use
360-degree rotating body for tight-space maneuverability
Anti-rust spray-molded body for long service life
Simple operation system with intuitive controls

Optional Configuration

Lithium electric engine upgrade (48V/72V)
Quick attach system for fast attachment changes
Forks, grapples, augers, sweepers and other attachments
Enclosed cabin with heater and wipers for all-weather operation
Enhanced LED lighting packages for night work
Heavy-duty track pads for specific terrain needs

Why Choose SN-T360?

Superior Traction on Uneven Ground: Triangular rubber tracks provide stability and low slippage
Hydraulic Cooling Advantage: Built-in oil cooler prevents overheating during long use
Compact & Agile: Fits in small spaces while delivering track-equipped stability
Low Ground Pressure: Gentle on sensitive surfaces like lawns and landscaping projects
Versatile Attachment Support: Compatible with a wide range of tools to expand functionality
Proven Reliability: Durable components and low-maintenance design minimize downtime
Factory Direct Supply: Competitive price with reliable quality assurance
Global Shipping: Fast delivery to international destinations
