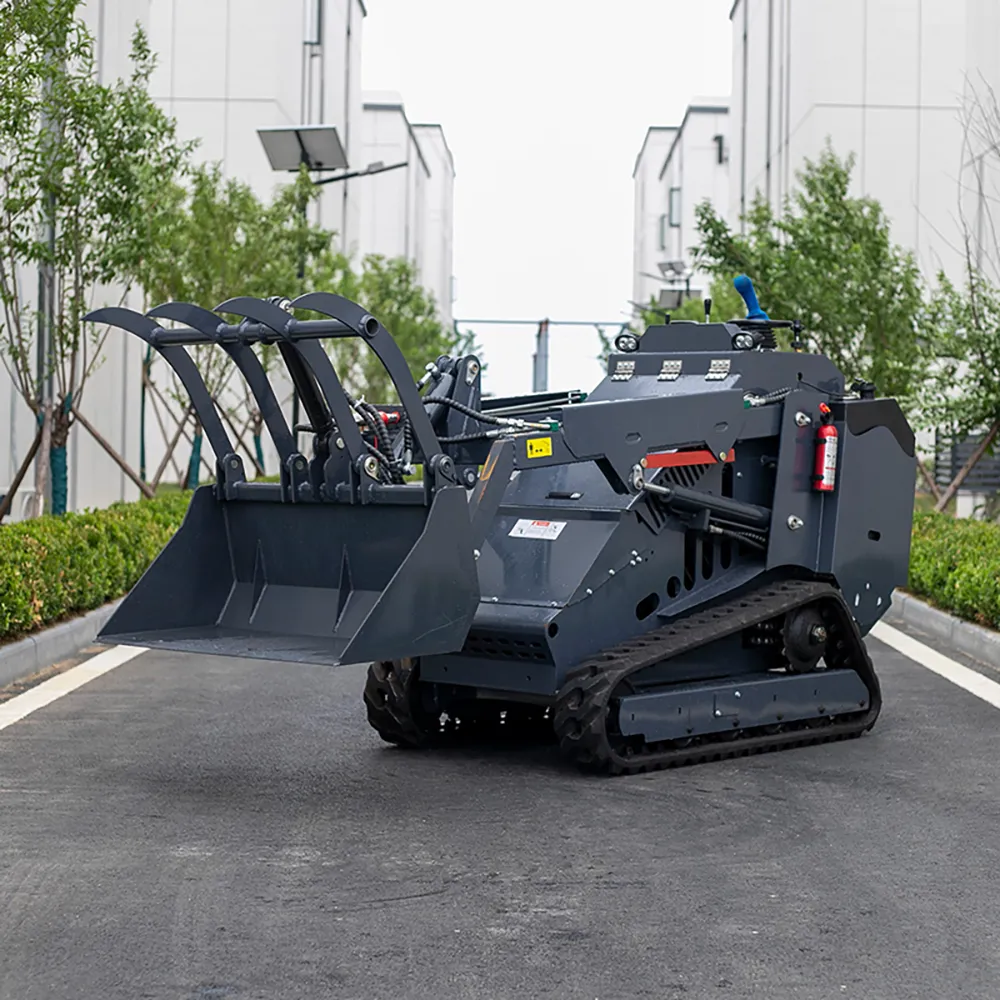

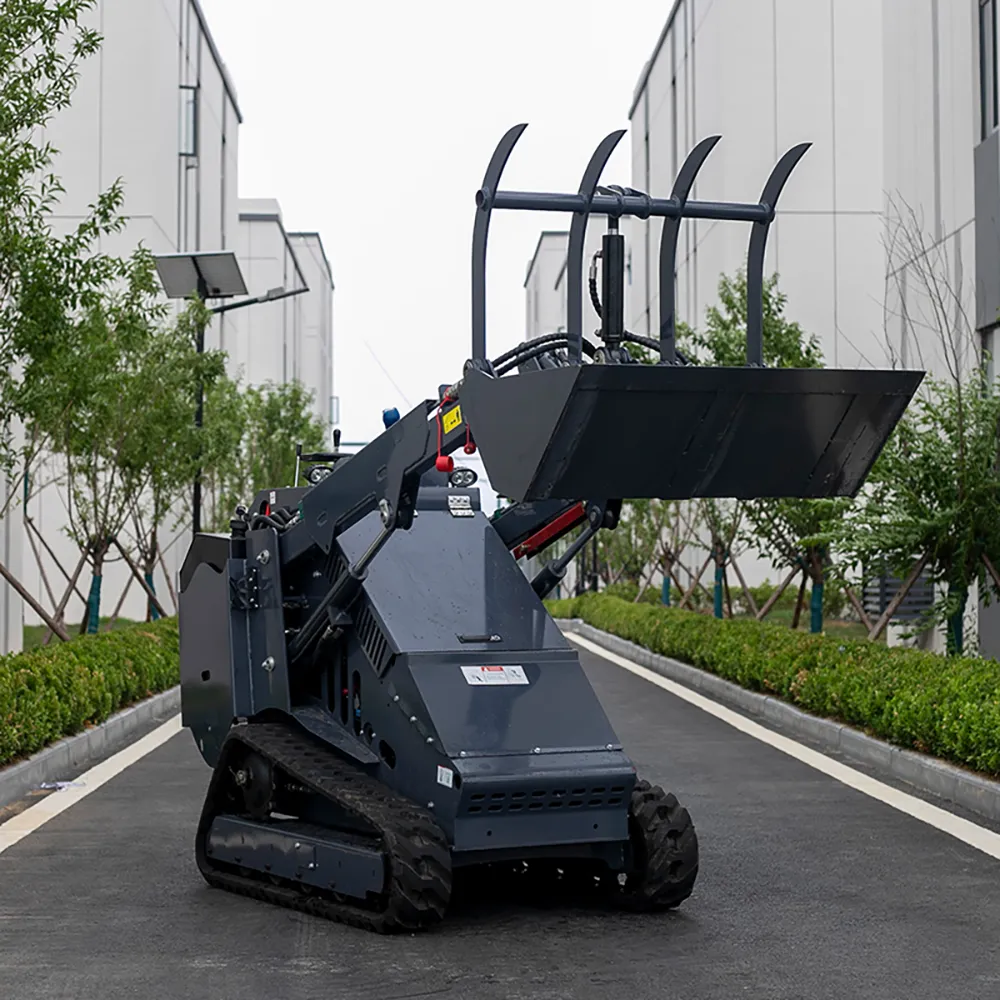

Side-front view of dark gray tracked skid steer loader with raised grapple bucket and rugged rubber tracks

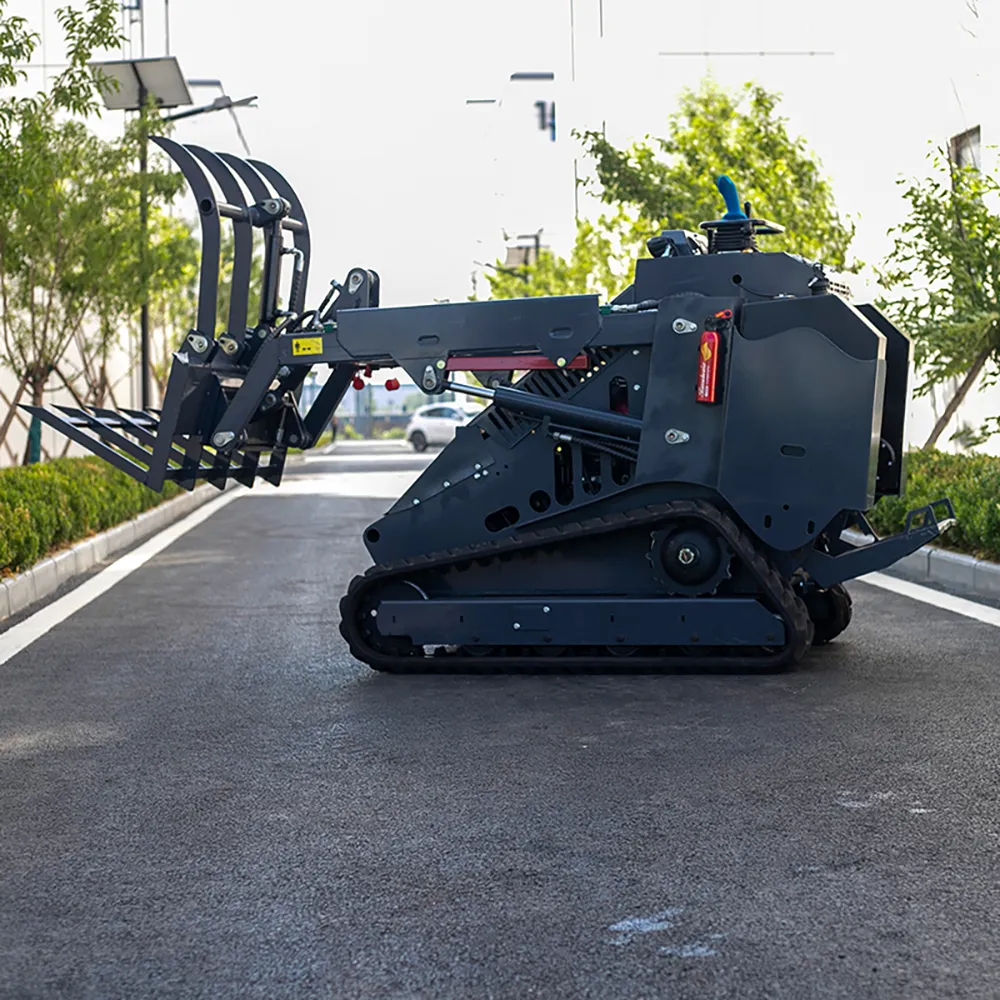

Side view of dark gray tracked skid steer loader with grapple attachment, joystick controls and tracks

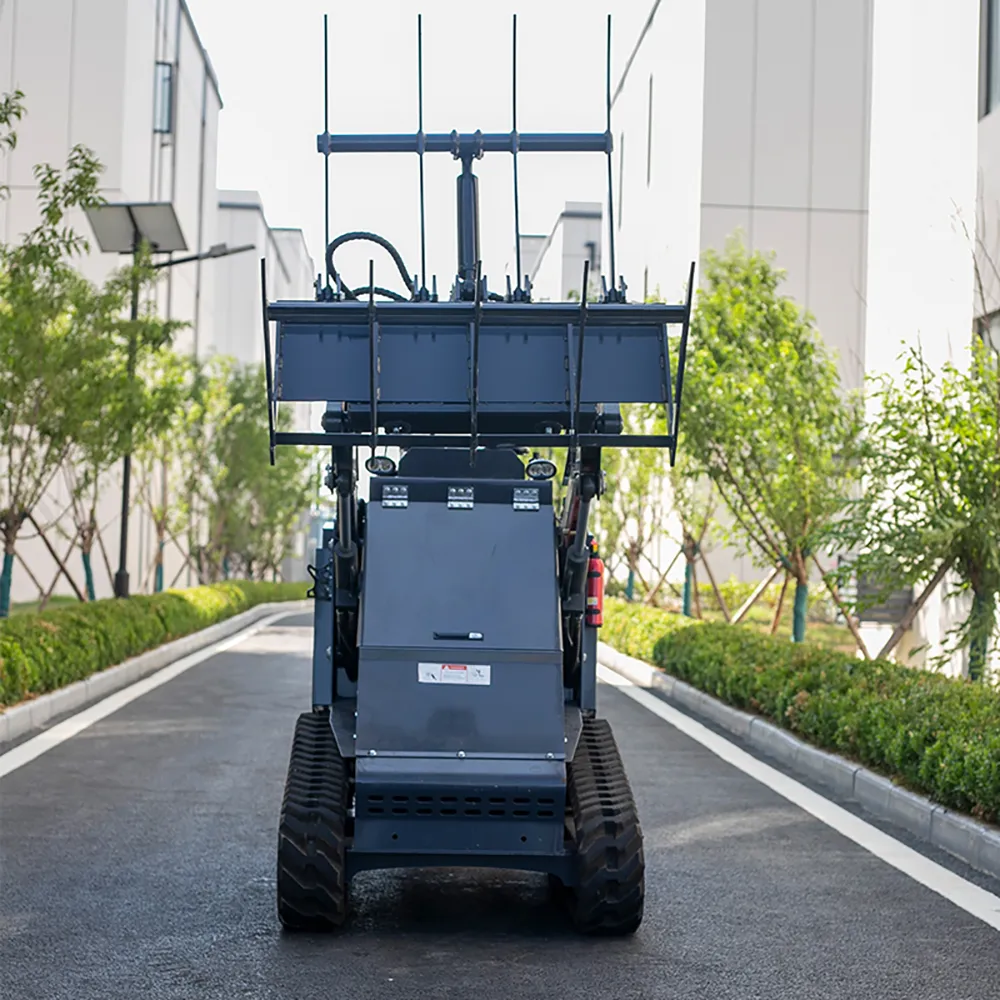

Rear view of dark gray tracked skid steer loader with raised grapple bucket, operator controls and tracks

Side-front view of dark gray tracked skid steer loader with low grapple bucket, rugged tracks and hydraulic lines

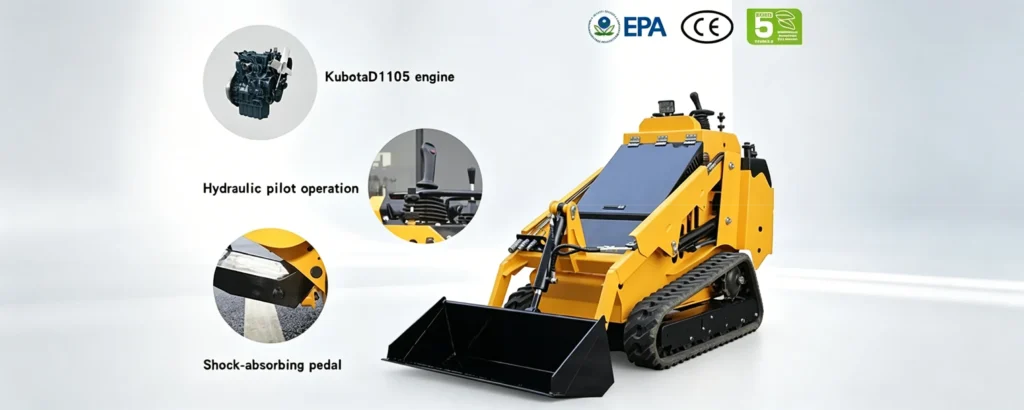

SN-T750 Compact Track Skid Steer Loader with Kubota Engine Pilot Control

SN-T750 compact track skid steer loader features Kubota D1105 engine, hydraulic pilot control and shock-absorbing pedal. Built for heavy-duty performance and operator comfort on uneven terrain, ideal for construction, industrial and farm tasks.

Product Description

The SN-T750 is a premium flagship compact track skid steer loader engineered for max power, precise control and all-day operator comfort in the toughest conditions. Designed to handle heavy loads, continuous use and challenging terrain, it features a Kubota D1105 engine, hydraulic pilot control system and shock-absorbing pedal. The Kubota engine delivers proven reliability and consistent power, while the pilot controls offer smooth, responsive operation. With superior traction on uneven, muddy or sloped ground, the SN-T750 excels in construction, industrial and farm applications where performance, durability and operator comfort are non-negotiable.

Performance Characteristics

Kubota D1105 Engine for Proven Power & Reliability

Powered by the renowned Kubota D1105 engine, the SN-T750 delivers robust performance, low fuel consumption and long service life. The engine is engineered for heavy-duty use, with minimal maintenance requirements and proven durability in demanding environments.

Hydraulic Pilot Control System

The hydraulic pilot control system offers smooth, precise and low-effort operation. This intuitive control reduces operator fatigue during long work sessions, while providing responsive handling for lifting, digging and attachment work.

Shock-Absorbing Pedal

The built-in shock-absorbing pedal reduces vibration and impact, enhancing operator comfort during extended use. This feature minimizes fatigue, allowing operators to work longer with less strain on rough terrain.

High-Stability Triangular Rubber Tracks

Fitted with high-stability triangular rubber tracks, the SN-T750 offers superior traction, low ground pressure and enhanced stability on uneven, muddy or sloped terrain. The track design reduces slippage and protects sensitive surfaces like lawns and landscaping projects, making it versatile for both construction and residential applications.

Compact & Agile Design

Despite its heavy-duty components, the SN-T750 maintains a compact overall dimension (2700×1270×1550mm). Its 360-degree rotating body and tight turning radius allow it to navigate narrow streets, residential backyards and confined job sites where larger equipment cannot access.

Durable Construction & Low Maintenance

Built with high-quality thick steel and anti-corrosion coating, the SN-T750 is rust-resistant and durable for long-term use. The simple structure and easy-access components reduce maintenance time and costs, ensuring maximum uptime for your operations.

Product Specifications

Bucket Capacity	0.15 m³
Operating Weight	1400 kg
Climbing Ability	25°
Maximum Breakout Force	4.5 KN
Rated Load	400 kg
Maximum Load	450 kg
Travel Speed	0-6 km/h
Working System Pressure	25 bar
Max Loading Height	2920 mm
Max Dumping Height	2300 mm
Max Operating Height	3100 mm
Height to Bucket Pin	2300 mm
Max Bucket Dump Angle	63°
Min Height	1550 mm
Tail Length	500 mm
Ground Clearance	240 mm
Track Contact Length	1300 mm
Overall Dimensions	2700×1270×1550 mm
Engine Brand	Kubota / Electric
Engine Rated Power	18.5 kw / 24.8 HP
Emission Standard	EURO5 / EPA
Fuel Tank Capacity	30 L

Standard Configuration

Kubota D1105 engine for proven power and reliability
Hydraulic pilot control system for smooth, precise operation
Shock-absorbing pedal for enhanced operator comfort
High-stability triangular rubber tracks for superior traction
Standard bucket attachment for general-purpose use
360-degree rotating body for tight-space maneuverability
Anti-rust spray-molded body for long service life

Optional Configuration

Lithium electric engine upgrade (48V/72V)
Quick attach system for fast attachment changes
Forks, grapples, augers, sweepers and other attachments
Enclosed cabin with heater and wipers for all-weather operation
Enhanced LED lighting packages for night work
Heavy-duty track pads for specific terrain needs

Why Choose SN-T750?

Kubota Engine Reliability: Proven power and durability for heavy-duty use
Hydraulic Pilot Control: Smooth, low-effort operation reduces fatigue
Shock-Absorbing Comfort: Reduces vibration for all-day operator comfort
High-Load Capacity: Rated for 400kg loads, ideal for demanding material handling
Superior Traction: Triangular rubber tracks provide stability on rough, muddy or sloped terrain
Low Ground Pressure: Gentle on sensitive surfaces like lawns and landscaping projects
Versatile Attachment Support: Compatible with a wide range of tools to expand functionality
Factory Direct Supply: Competitive price with reliable quality assurance
