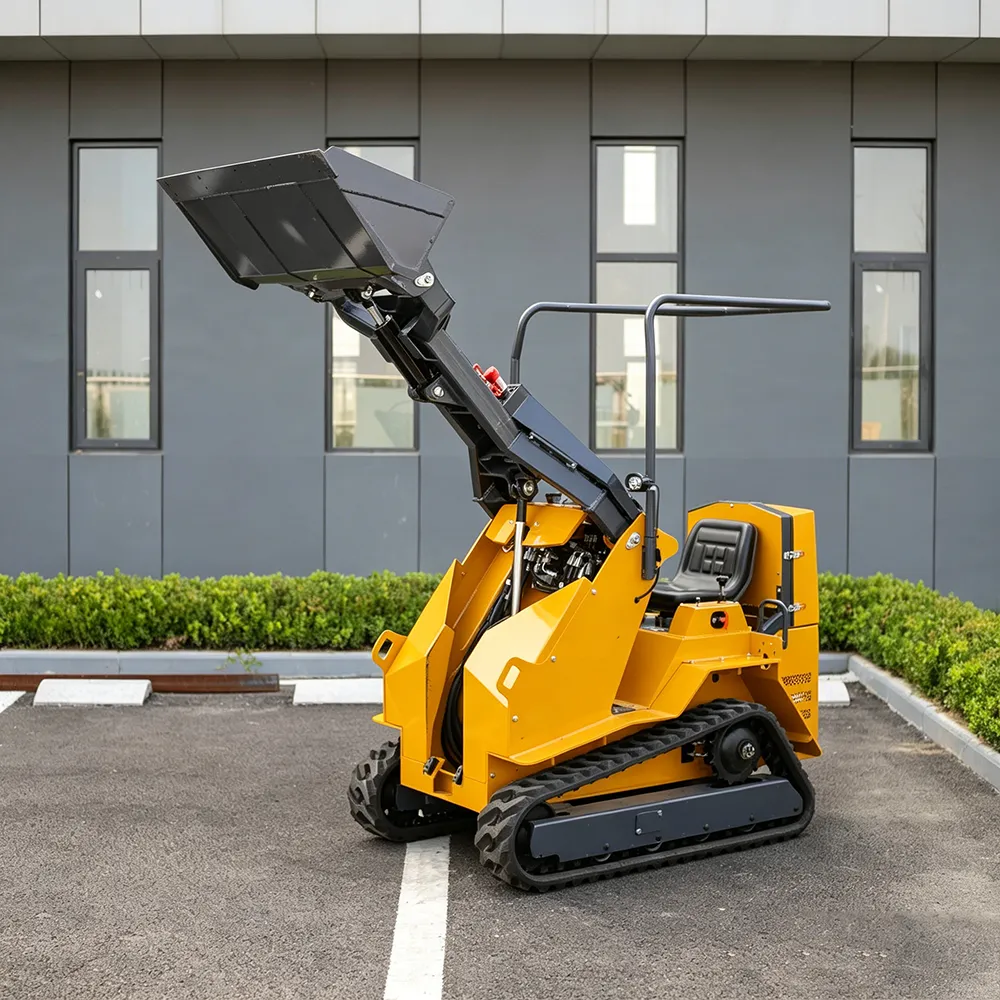

Side-front view of yellow ride-on tracked mini skid steer loader with raised bucket and operator seat

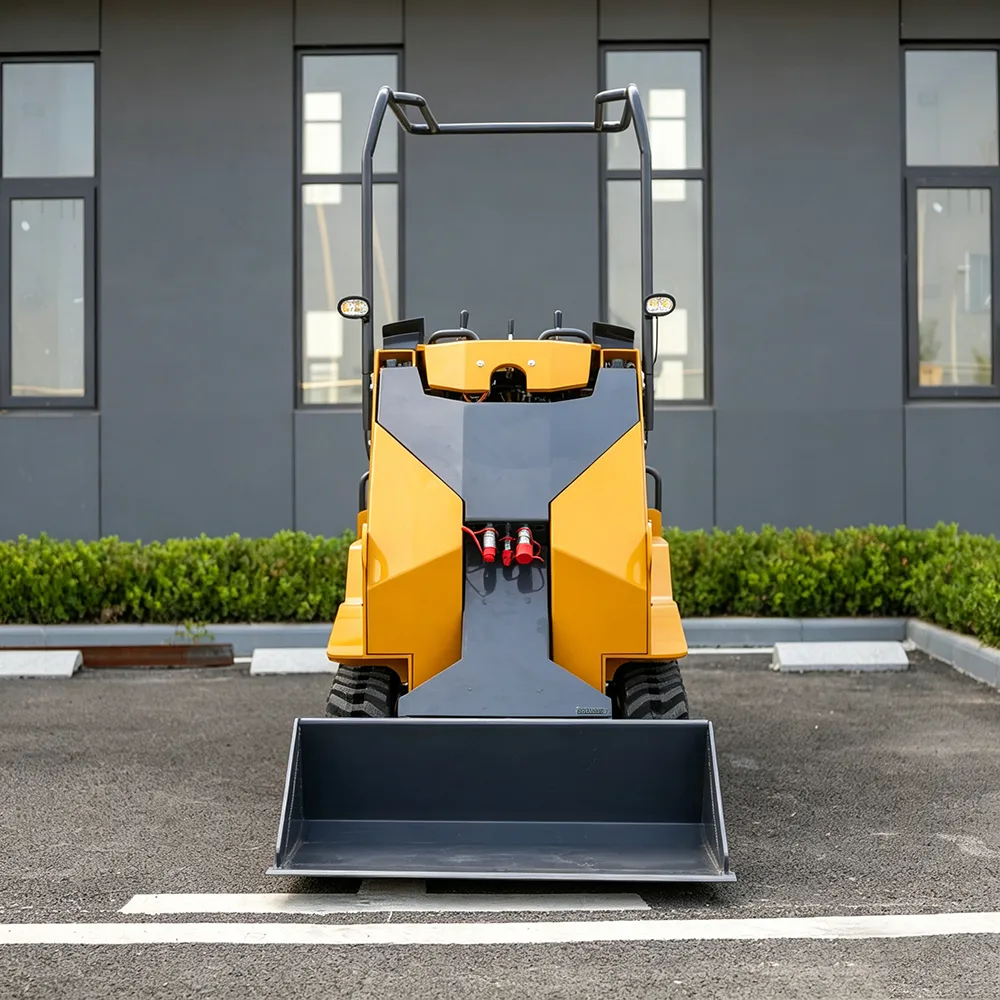

Front view of yellow ride-on tracked mini skid steer loader with level bucket and hydraulic fittings

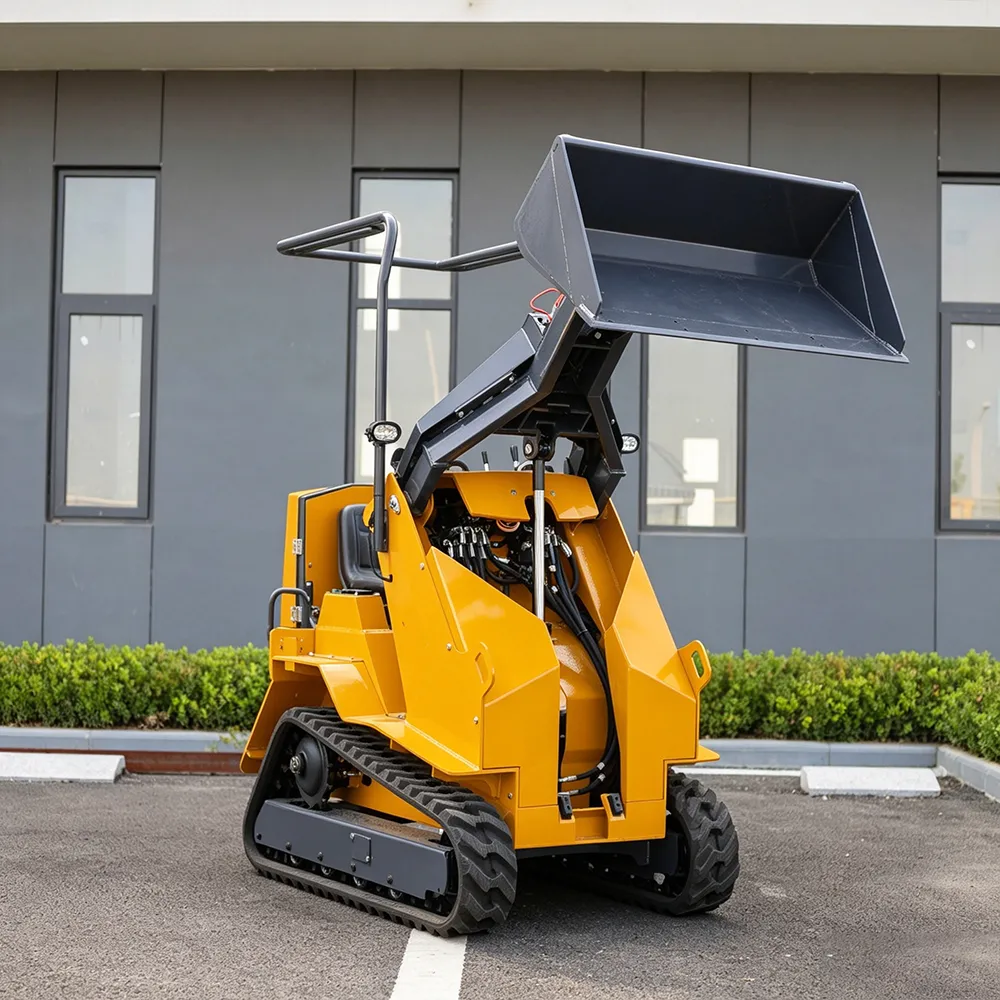

Side-rear view of yellow ride-on tracked mini skid steer loader with raised bucket, operator seat and canopy

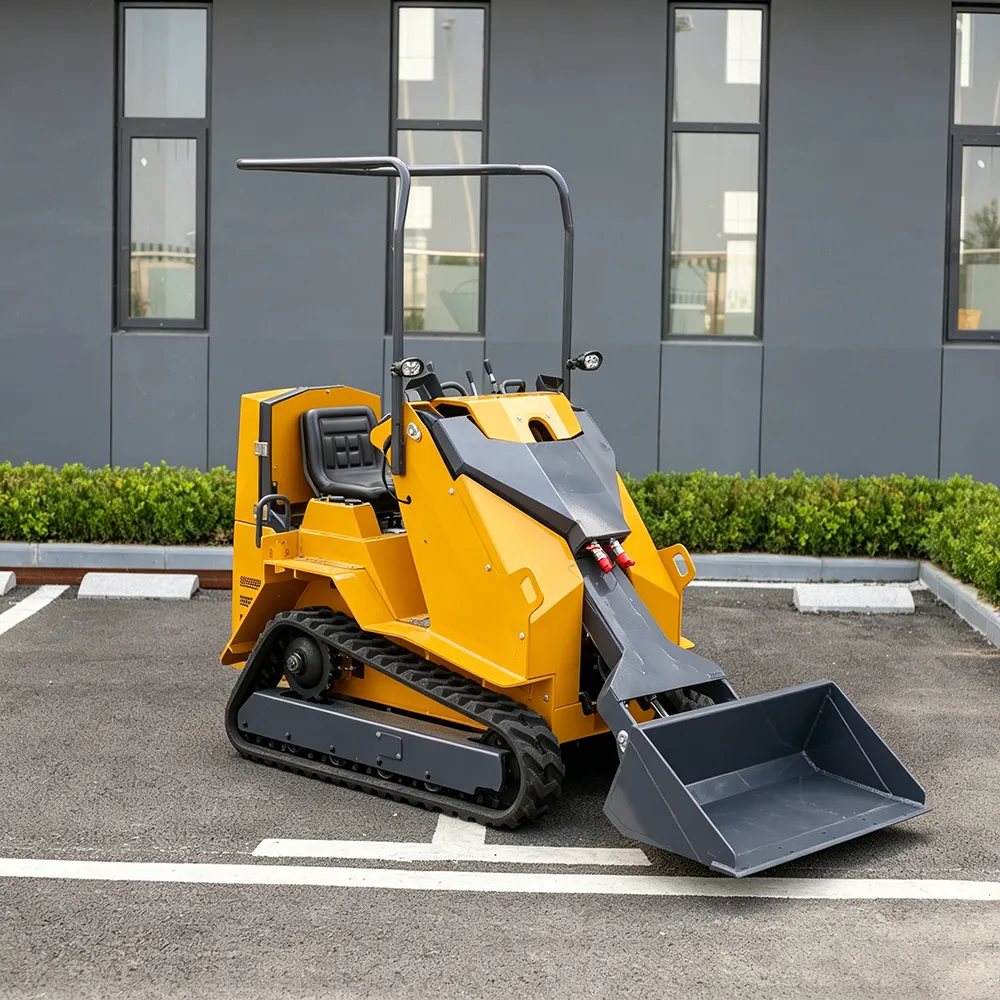

Side view of yellow ride-on tracked mini skid steer loader with low bucket position, operator seat and rugged tracks

SN-T390 Compact Track Skid Steer Loader with Reinforced Boom

SN-T390 compact track skid steer loader features reinforced one-piece boom, ergonomic seat and high-stability triangular tracks. Built for enhanced durability and comfort on uneven ground, perfect for construction and farm work.

Product Description

The SN-T390 is a compact track skid steer loader designed for enhanced durability, comfort and performance on uneven terrain. Building on the T360 platform, it features a reinforced one-piece boom, ergonomic seat and high-stability triangular rubber tracks. The reinforced boom delivers greater lifting strength and structural rigidity, while the ergonomic seat reduces operator fatigue during long work sessions. With superior traction and stability on rough, muddy or sloped ground, the SN-T390 excels in landscaping, construction and farm applications where wheeled models struggle.

Performance Characteristics

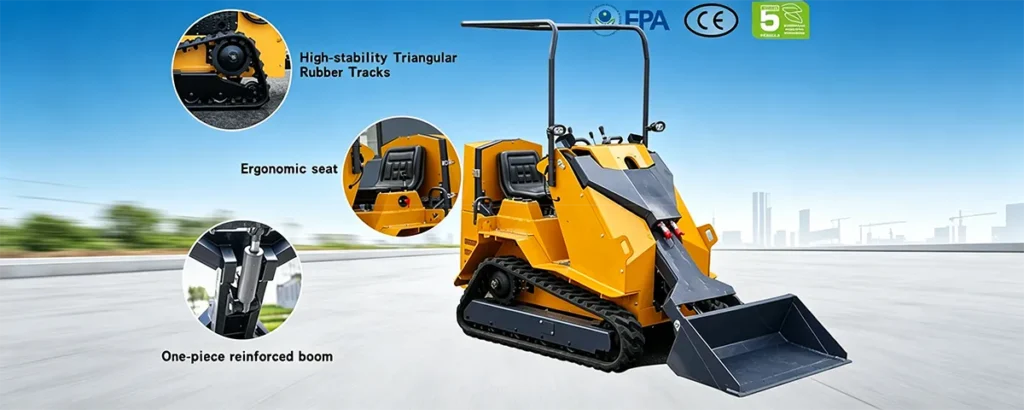

Reinforced One-Piece Boom

The integrated reinforced boom is built with heavy-duty steel for enhanced structural strength and lifting capacity. This one-piece design reduces stress points and improves durability, making it ideal for heavy loads and frequent use.

Ergonomic Operator Seat

Designed with an ergonomic seat, the SN-T390 prioritizes operator comfort during extended work hours. The supportive design reduces fatigue, allowing operators to work longer with less strain.

High-Stability Triangular Rubber Tracks

Fitted with high-stability triangular rubber tracks, the SN-T390 offers superior traction, low ground pressure and enhanced stability on uneven, muddy or sloped terrain. The track design reduces slippage and protects sensitive surfaces like lawns and landscaping.

Compact & Agile Design

Despite its reinforced components, the SN-T390 maintains a compact overall dimension (2244×1150×1280mm). Its 360-degree rotating body and tight turning radius allow it to navigate narrow spaces, residential backyards and confined job sites.

Simple & Intuitive Operation

The user-friendly control system features intuitive joysticks and clear interfaces, making the SN-T390 easy to operate even for new users. The layout is designed to reduce operator fatigue and improve efficiency.

Product Specifications

Bucket Capacity	0.12 m³
Operating Weight	1070 kg
Climbing Ability	25°
Maximum Breakout Force	3.5 KN
Rated Load	200 kg
Maximum Load	300 kg
Travel Speed	0-6 km/h
Working System Pressure	17 bar
Max Loading Height	2425 mm
Max Dumping Height	2000 mm
Max Operating Height	2600 mm
Height to Bucket Pin	2000 mm
Max Bucket Dump Angle	63°
Min Height	1250 mm
Tail Length	220 mm
Ground Clearance	225 mm
Track Contact Length	1300 mm
Overall Dimensions	2244×1150×1280 mm
Engine Brand	B&S / Lithium Electric
Engine Rated Power	9.9 kw / 13.3 HP
Emission Standard	EURO5 / EPA
Fuel Tank Capacity	5 L

Standard Configuration

Reinforced one-piece boom for enhanced strength and durability
Ergonomic operator seat for reduced fatigue
High-stability triangular rubber tracks for superior traction
Standard bucket attachment for general-purpose use
360-degree rotating body for tight-space maneuverability
Anti-rust spray-molded body for long service life
Simple operation system with intuitive controls

Optional Configuration

Lithium electric engine upgrade (48V/72V)
Quick attach system for fast attachment changes
Forks, grapples, augers, sweepers and other attachments
Enclosed cabin with heater and wipers for all-weather operation
Enhanced LED lighting packages for night work
Heavy-duty track pads for specific terrain needs

Why Choose SN-T390?

Reinforced Boom Strength: One-piece design delivers enhanced durability and lifting power
Operator Comfort: Ergonomic seat reduces fatigue during long work sessions
Superior Traction: Triangular rubber tracks provide stability on uneven, muddy or sloped terrain
Low Ground Pressure: Gentle on sensitive surfaces like lawns and landscaping projects
Compact & Agile: Fits in small spaces while delivering track-equipped stability
Versatile Attachment Support: Compatible with a wide range of tools to expand functionality
Proven Reliability: Durable components and low-maintenance design minimize downtime
Factory Direct Supply: Competitive price with reliable quality assurance

👉Contact us today for a quote or more information!
