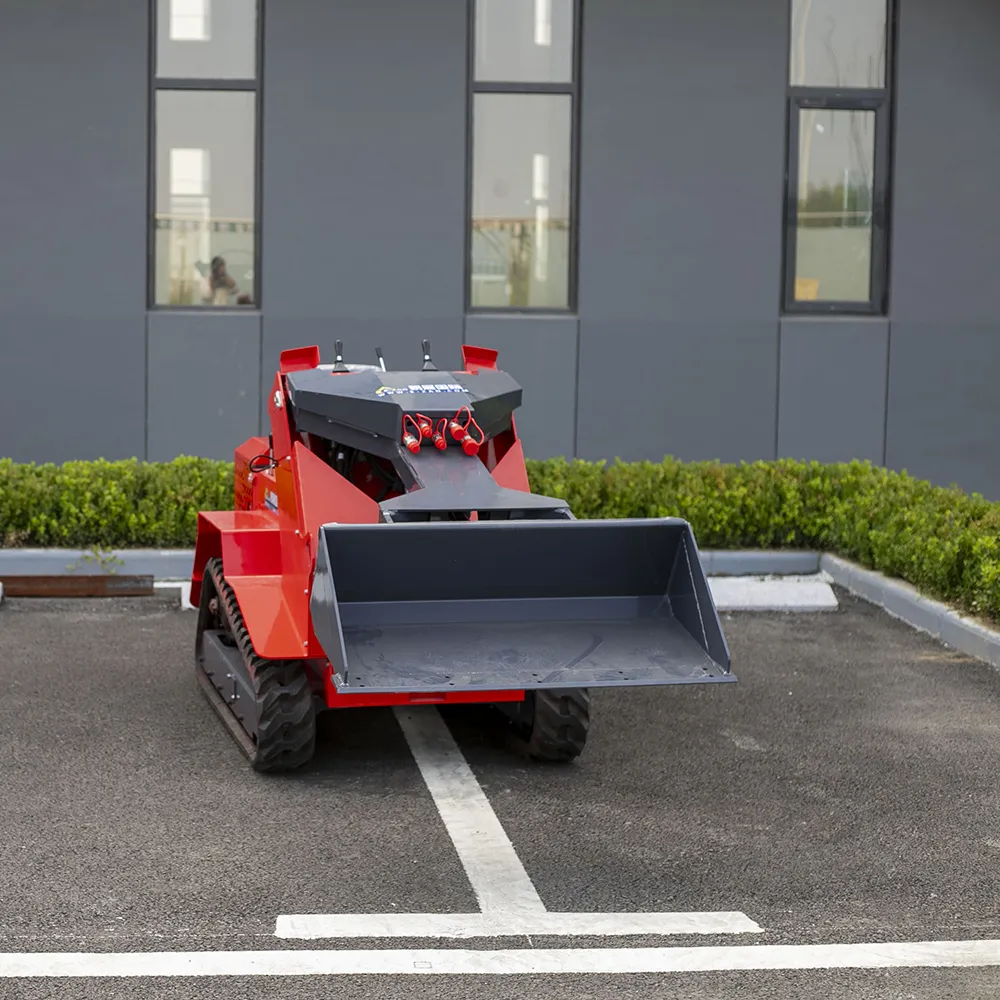

Front view of red ride-on tracked skid steer loader with level bucket, hydraulic fittings and rugged tracks

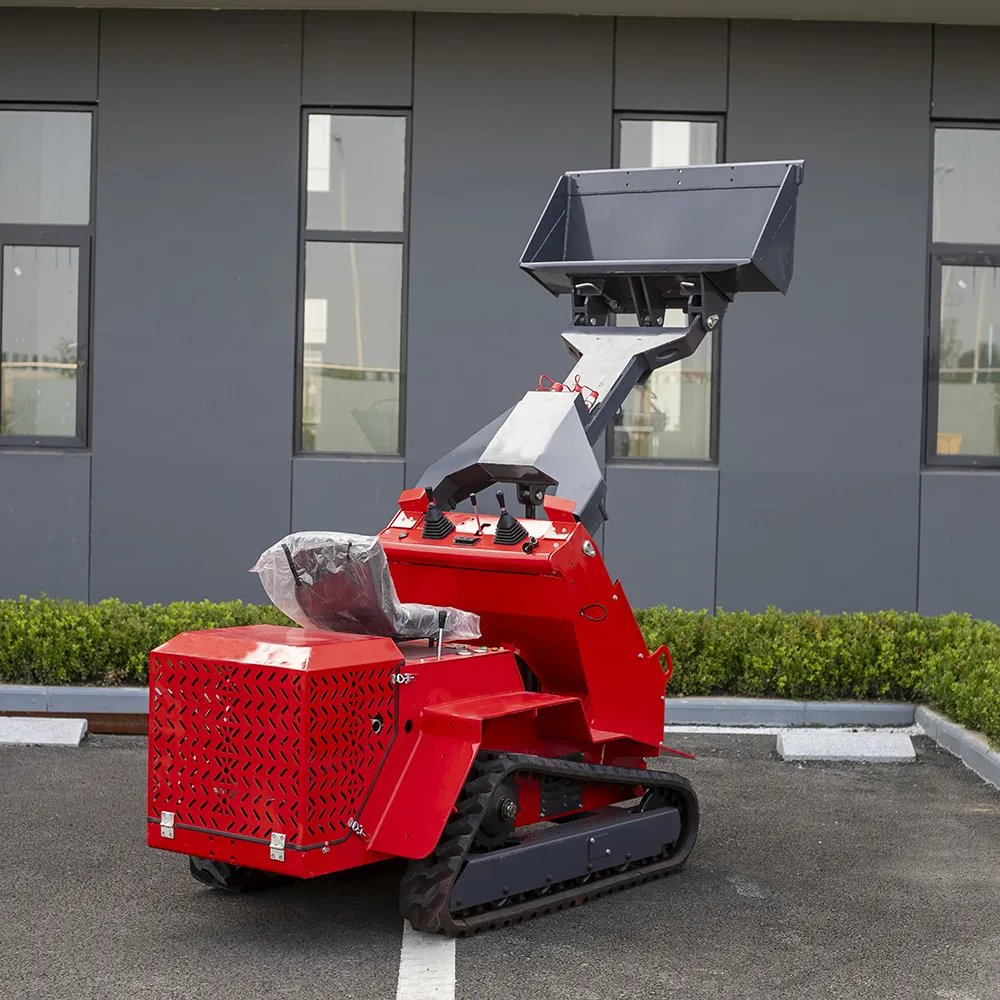

Side-rear view of red ride-on tracked skid steer loader with raised bucket, operator seat and joystick controls

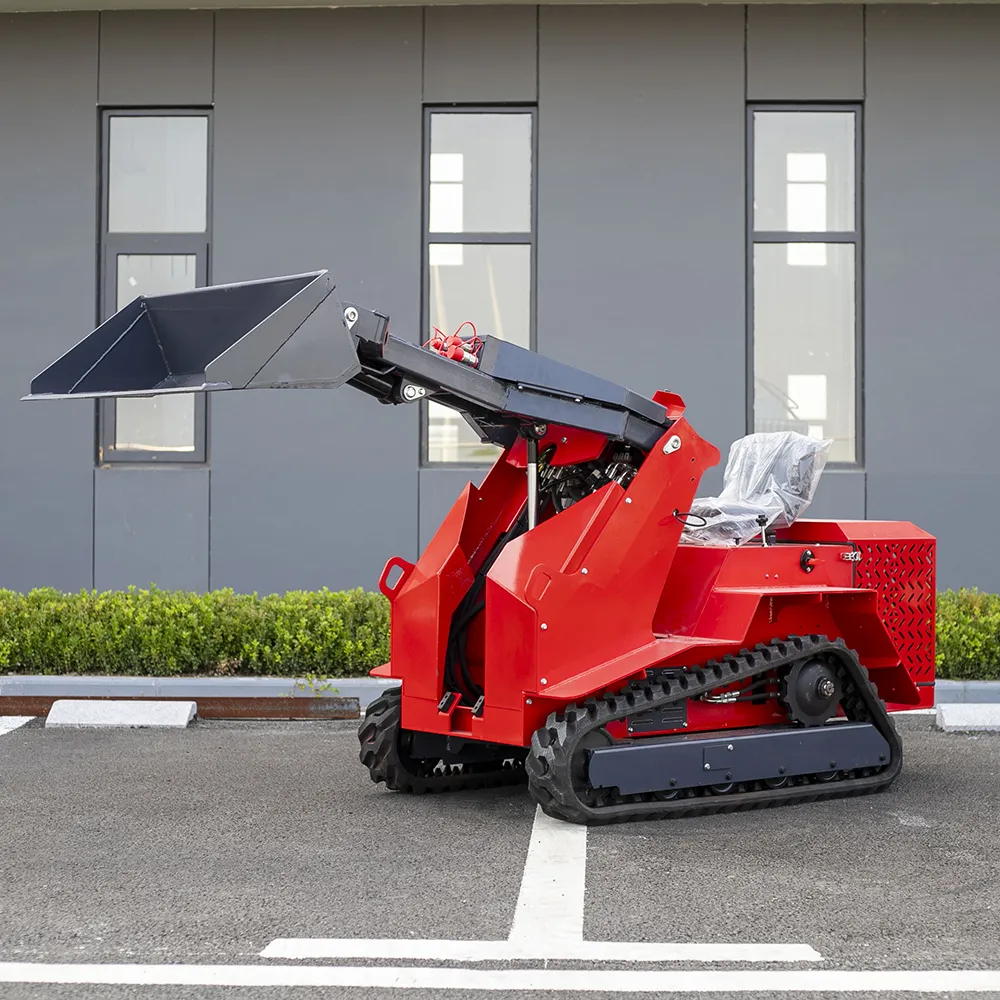

Side-front view of red ride-on tracked skid steer loader with raised bucket, operator seat and rugged rubber tracks

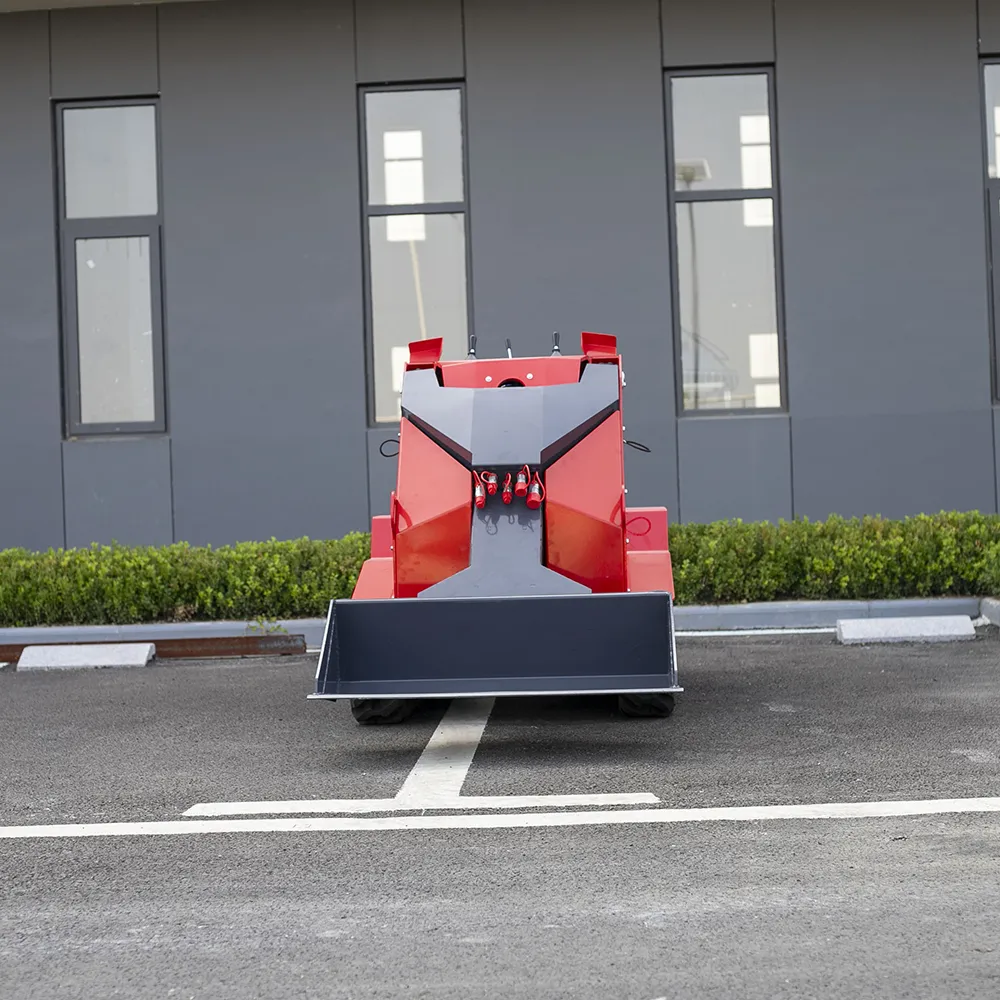

Rear view of red ride-on tracked skid steer loader with level bucket, hydraulic fittings and rear bodywork

SN-T490 Compact Track Skid Steer Loader with Rear Hatch Engine

SN-T490 compact track skid steer loader features rear hatch engine compartment, high-quality travel motor and triangular rubber tracks. Built for easy maintenance and reliable performance on uneven ground, ideal for construction and farm tasks.

Product Description

The SN-T490 is a compact track skid steer loader engineered for low downtime, easy maintenance and reliable performance in high-frequency work environments. Designed to simplify servicing and extend operational life, it features a rear hatch engine compartment for quick access, high-quality travel motor and high-stability triangular rubber tracks. The rear hatch design eliminates the need for complex disassembly during maintenance, reducing service time and keeping your projects on schedule. With superior traction on uneven, muddy or sloped ground, the SN-T490 excels in construction, farm and landscaping applications where frequent use and quick maintenance are critical.

Performance Characteristics

Rear Hatch Engine Compartment

The rear hatch engine compartment provides unobstructed access to key components, enabling quick and easy maintenance. This design eliminates the need for major disassembly during servicing, reducing downtime and lowering long-term maintenance costs.

High-Quality Travel Motor

Equipped with a durable, high-quality travel motor, the SN-T490 delivers smooth, reliable movement across various terrains. Built for frequent use and long service life, the motor reduces the risk of breakdowns and ensures consistent performance in demanding conditions.

High-Stability Triangular Rubber Tracks

Fitted with high-stability triangular rubber tracks, the SN-T490 offers superior traction, low ground pressure and enhanced stability on uneven, muddy or sloped terrain. The track design reduces slippage and protects sensitive surfaces like lawns and landscaping projects, making it versatile for both construction and residential applications.

Compact & Agile Design

Despite its heavy-duty components, the SN-T490 maintains a compact overall dimension (2700×1100×1300mm). Its 360-degree rotating body and tight turning radius allow it to navigate narrow streets, residential backyards and confined job sites where larger equipment cannot access.

Durable Construction & Low Maintenance

Built with high-quality thick steel and anti-corrosion coating, the SN-T490 is rust-resistant and durable for long-term use. The simple structure and easy-access components reduce maintenance time and costs, ensuring maximum uptime for your operations.

Product Specifications

Bucket Capacity	0.12 m³
Operating Weight	1200 kg
Climbing Ability	25°
Maximum Breakout Force	4.5 KN
Rated Load	250 kg
Maximum Load	350 kg
Travel Speed	0-6 km/h
Working System Pressure	17-21 bar
Max Loading Height	2530 mm
Max Dumping Height	1933 mm
Max Operating Height	2700 mm
Height to Bucket Pin	1933 mm
Max Bucket Dump Angle	63°
Min Height	1300 mm
Tail Length	500 mm
Ground Clearance	230 mm
Track Contact Length	1350 mm
Overall Dimensions	2700×1100×1300 mm
Engine Brand	B&S / Lithium Electric
Engine Rated Power	17.5 kw / 23.7 HP
Emission Standard	EURO5 / EPA
Fuel Tank Capacity	10 L

Standard Configuration

Rear hatch engine compartment for quick, easy maintenance
High-quality travel motor for long-lasting, reliable movement
High-stability triangular rubber tracks for superior traction
Standard bucket attachment for general-purpose use
360-degree rotating body for tight-space maneuverability
Anti-rust spray-molded body for long service life
Simple operation system with intuitive controls

Optional Configuration

Lithium electric engine upgrade (48V/72V)
Quick attach system for fast attachment changes
Forks, grapples, augers, sweepers and other attachments
Enclosed cabin with heater and wipers for all-weather operation
Enhanced LED lighting packages for night work
Heavy-duty track pads for specific terrain needs

Why Choose SN-T490?

Rear Hatch Maintenance Access: Eliminates complex disassembly for quick servicing
Durable Travel Motor: Built for frequent use and long service life
Low Downtime Design: Easy maintenance keeps your operations running smoothly
Superior Traction: Triangular rubber tracks provide stability on rough, muddy or sloped terrain
Low Ground Pressure: Gentle on sensitive surfaces like lawns and landscaping projects
Compact & Agile: Fits in small spaces while delivering track-equipped stability
Versatile Attachment Support: Compatible with a wide range of tools to expand functionality
Factory Direct Supply: Competitive price with reliable quality assurance
