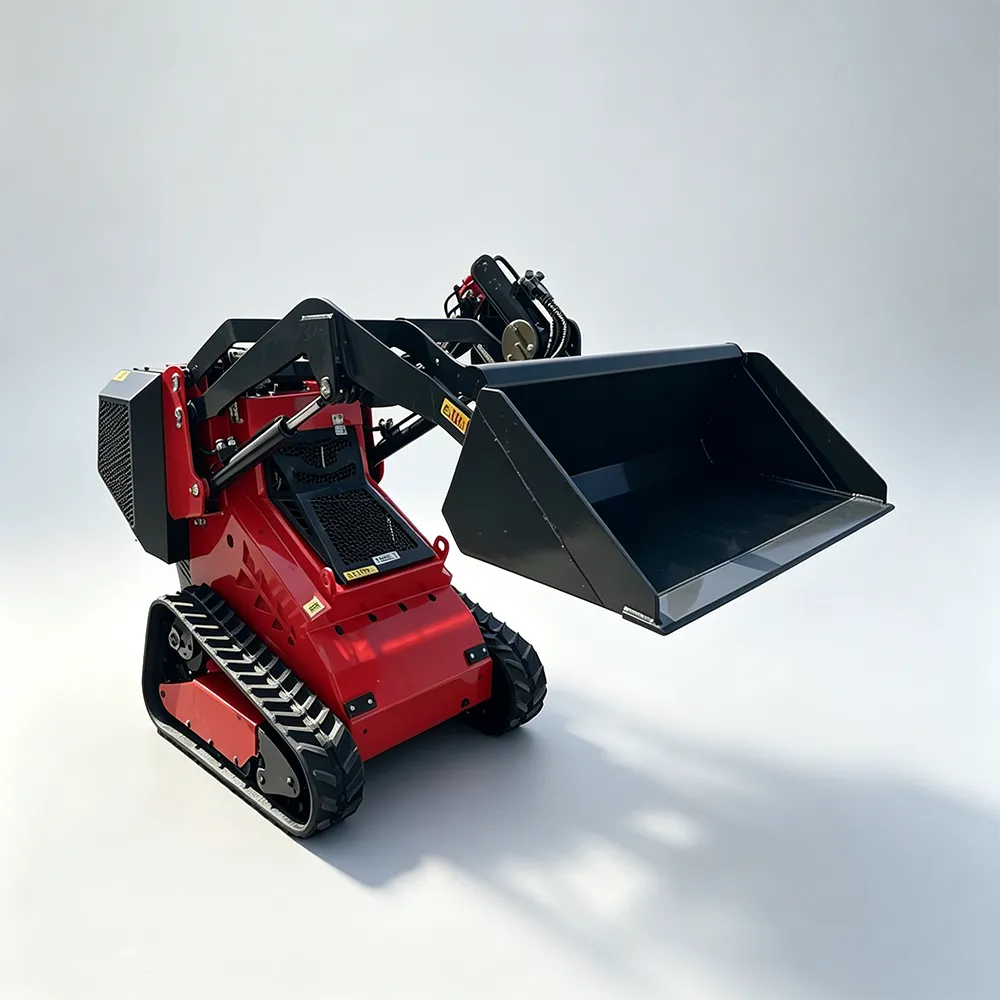

Side-front view of red compact tracked skid steer loader with raised bucket and rugged rubber tracks

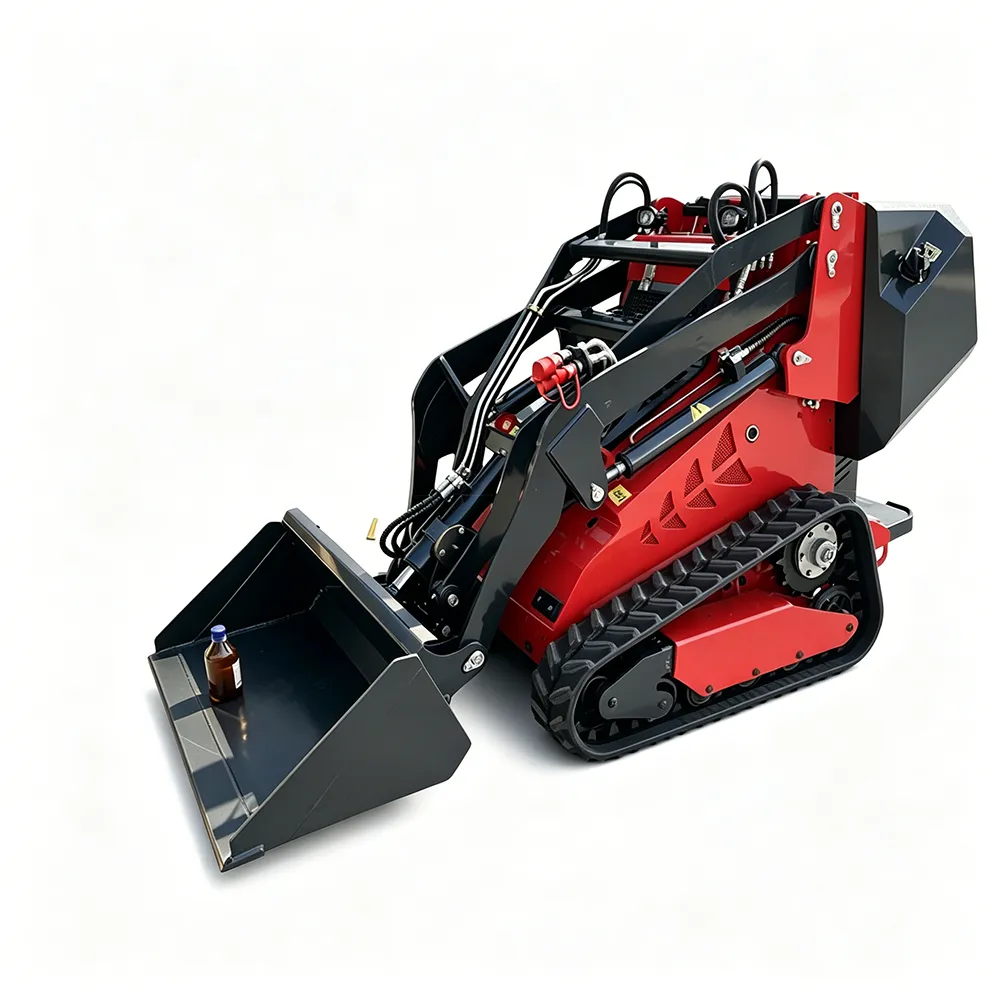

Side-rear view of red compact tracked skid steer loader with level bucket, hydraulic lines and tracks

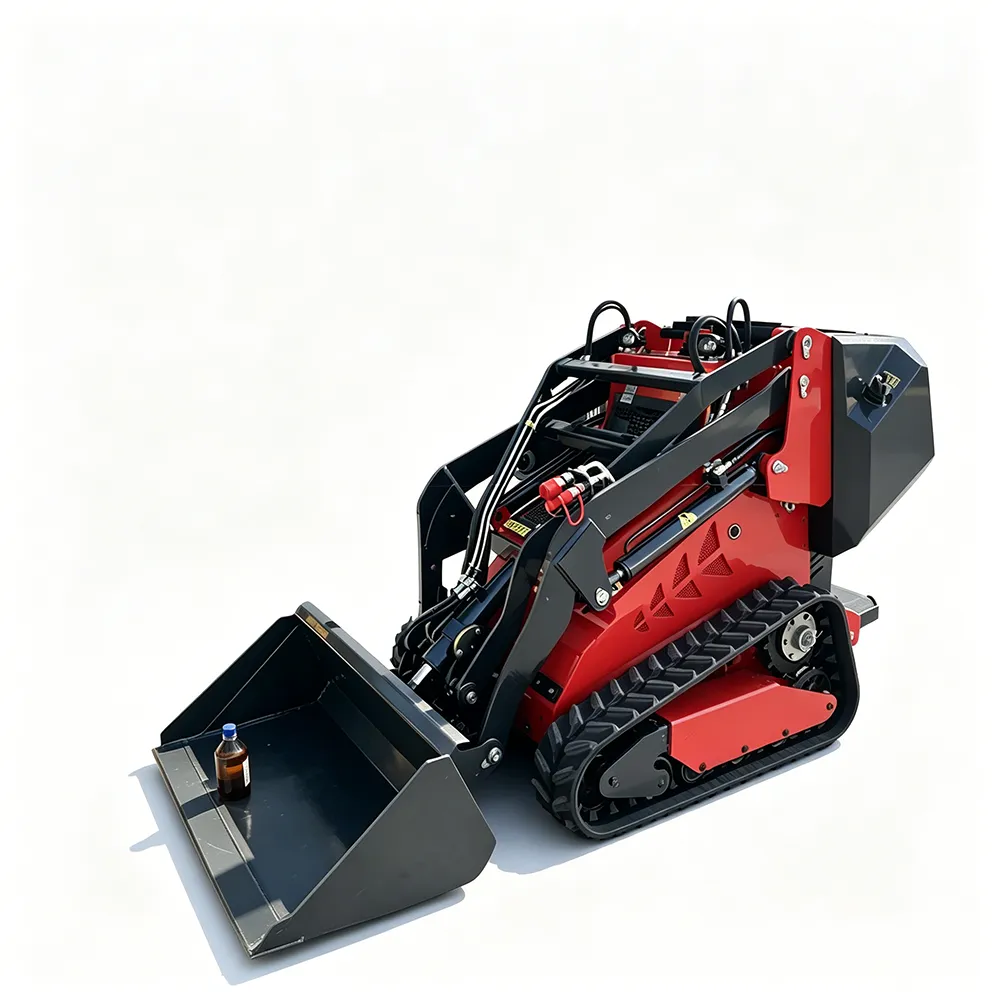

Side view of red compact tracked skid steer loader with low bucket position, hydraulic fittings and rugged tracks

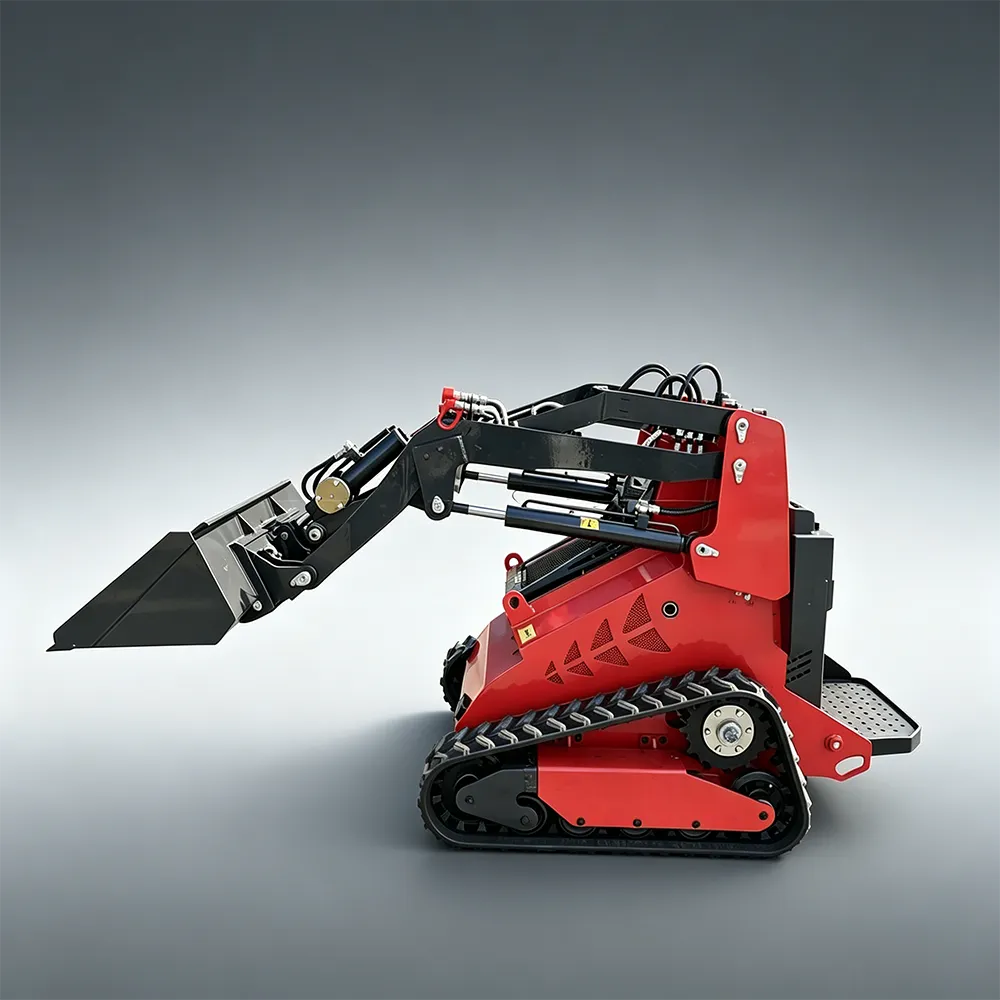

Side view of red compact tracked skid steer loader with tipped bucket, showing operator platform and rugged tracks

SN-T470 Compact Track Skid Steer Loader with Counterbalance Arm

SN-T470 compact track skid steer loader features counterbalance arm design, dual pump system and intuitive controls. Built for stable high-load performance on uneven ground, ideal for construction and industrial tasks.

Send Inquiry

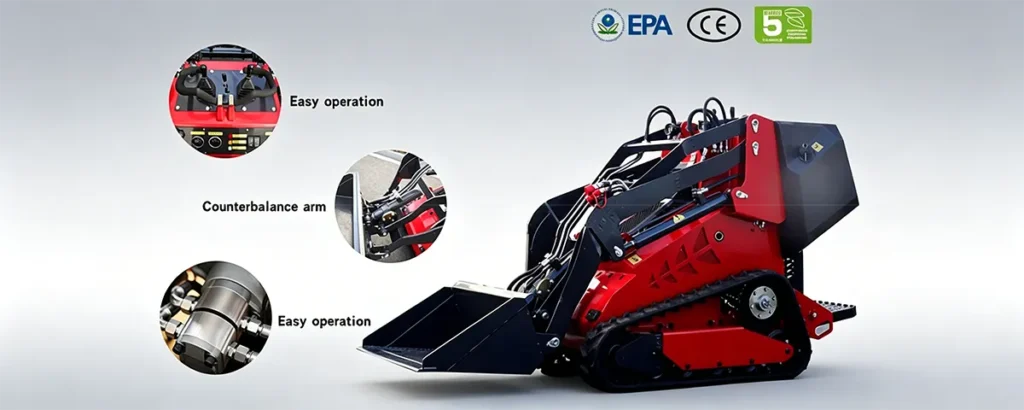

Red compact tracked skid steer loader with bucket, featuring easy controls, counterbalance arm, hydraulic components and EPA/CE/Euro 5 certifications

Product Description

The SN-T470 is a compact track skid steer loader engineered for high-load stability, reliable power and user-friendly operation on uneven terrain. Designed to handle heavy material handling and challenging conditions, it features a counterbalance arm for enhanced stability, dual pump hydraulic system and intuitive controls. The durable build and industrial-grade components ensure consistent performance in construction sites, industrial yards and farm applications, even when working at full rated capacity. Whether loading trucks, moving bulk materials or performing site cleanup, the SN-T470 delivers stable, efficient power with safety-focused design.

Performance Characteristics

Counterbalance Arm for Enhanced Stability


The built-in counterbalance arm design optimizes weight distribution, preventing tipping during high-load lifting or work on uneven ground. This safety-focused feature boosts confidence during heavy-duty tasks, making the SN-T470 ideal for maximum rated load applications.


Dual Pump Hydraulic System


Equipped with a dual pump hydraulic system, the SN-T470 delivers responsive power and smooth operation for lifting, digging and attachment use. The dual pump design provides consistent pressure even under heavy loads, improving work efficiency and reducing cycle times.


Simple & Intuitive Operation


Designed with user-friendly controls and an ergonomic layout, the SN-T470 is easy to operate even for new users. The intuitive control system reduces the learning curve and operator fatigue, making long work sessions more comfortable and productive.


High-Stability Triangular Rubber Tracks


Fitted with high-stability triangular rubber tracks, the SN-T470 offers superior traction, low ground pressure and enhanced stability on uneven, muddy or sloped terrain. The track design reduces slippage and protects sensitive surfaces like lawns and landscaping projects.


Compact & Agile Design


Despite its high-load capabilities, the SN-T470 maintains a compact overall dimension (2337×1070×1300mm). Its 360-degree rotating body and tight turning radius allow it to navigate narrow streets, residential backyards and confined job sites where larger equipment cannot access.


Durable Construction & Low Maintenance


Built with high-quality thick steel and anti-corrosion coating, the SN-T470 is rust-resistant and durable for long-term use. The simple structure and easy-access components reduce maintenance time and costs, ensuring maximum uptime.

Product Specifications

Bucket Capacity0.12 m³
Operating Weight1176 kg
Climbing Ability25°
Maximum Breakout Force5.5 KN
Rated Load350 kg
Maximum Load480 kg
Travel Speed0-4 km/h
Working System Pressure16 bar
Max Loading Height2561 mm
Max Dumping Height2073 mm
Max Operating Height2650 mm
Height to Bucket Pin2073 mm
Max Bucket Dump Angle63°
Min Height1300 mm
Tail Length220 mm
Ground Clearance195 mm
Track Contact Length1300 mm
Overall Dimensions2337×1070×1300 mm
Engine BrandB&S / Yanmar / Kubota / Electric
Engine Rated Power16.8-18.5 kw / 22.5-24.8 HP
Emission StandardEURO5 / EPA
Fuel Tank Capacity21 L

Standard Configuration

  • Counterbalance arm design for enhanced high-load stability
  • Dual pump hydraulic system for responsive power delivery
  • High-stability triangular rubber tracks for superior traction
  • Standard bucket attachment for general-purpose use
  • 360-degree rotating body for tight-space maneuverability
  • Anti-rust spray-molded body for long service life
  • Simple operation system with intuitive controls

Optional Configuration

  • Lithium electric engine upgrade (48V/72V)
  • Quick attach system for fast attachment changes
  • Forks, grapples, augers, sweepers and other attachments
  • Enclosed cabin with heater and wipers for all-weather operation
  • Enhanced LED lighting packages for night work
  • Heavy-duty track pads for specific terrain needs

Why Choose SN-T470?

  • Counterbalance Stability: Optimized weight distribution prevents tipping during high-load tasks
  • Dual Pump Hydraulics: Responsive power delivery for heavy lifting and attachment use
  • High-Load Capacity: Rated for 350kg loads, ideal for demanding material handling
  • Easy Operation: Intuitive controls reduce learning curve and operator fatigue
  • Superior Traction: Triangular rubber tracks provide stability on rough, muddy or sloped terrain
  • Low Ground Pressure: Gentle on sensitive surfaces like lawns and landscaping projects
  • Versatile Attachment Support: Compatible with a wide range of tools to expand functionality
  • Factory Direct Supply: Competitive price with reliable quality assurance
