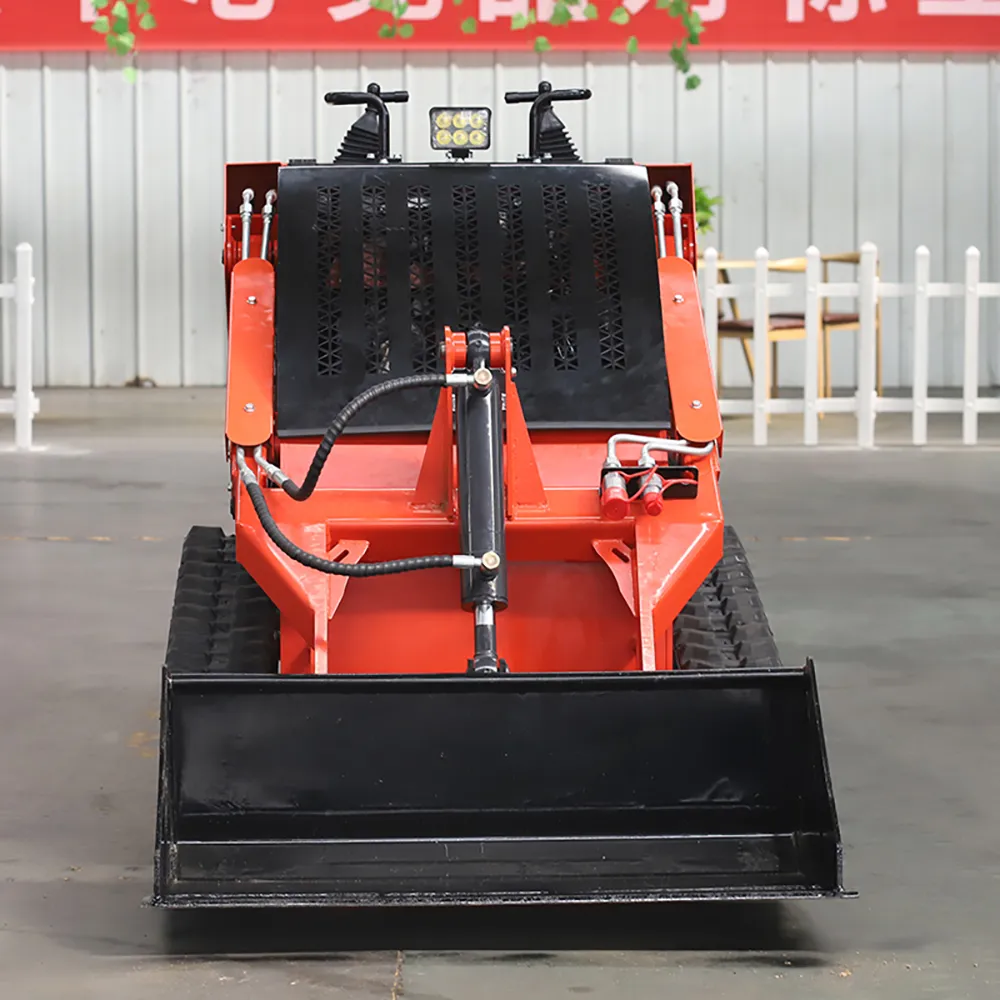

Front view of orange walk-behind tracked skid steer loader with level bucket, joystick controls and work light

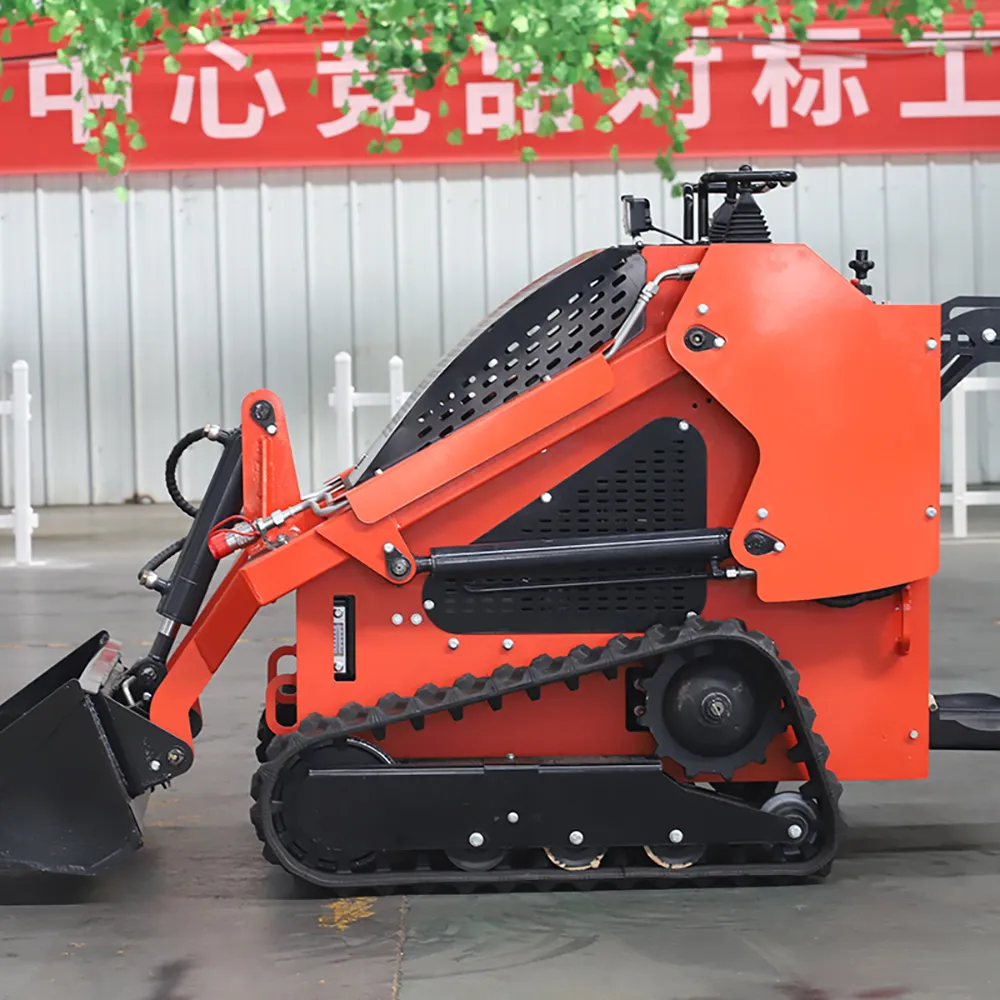

Side view of orange walk-behind tracked skid steer loader with low bucket position, rugged tracks and hydraulic lines

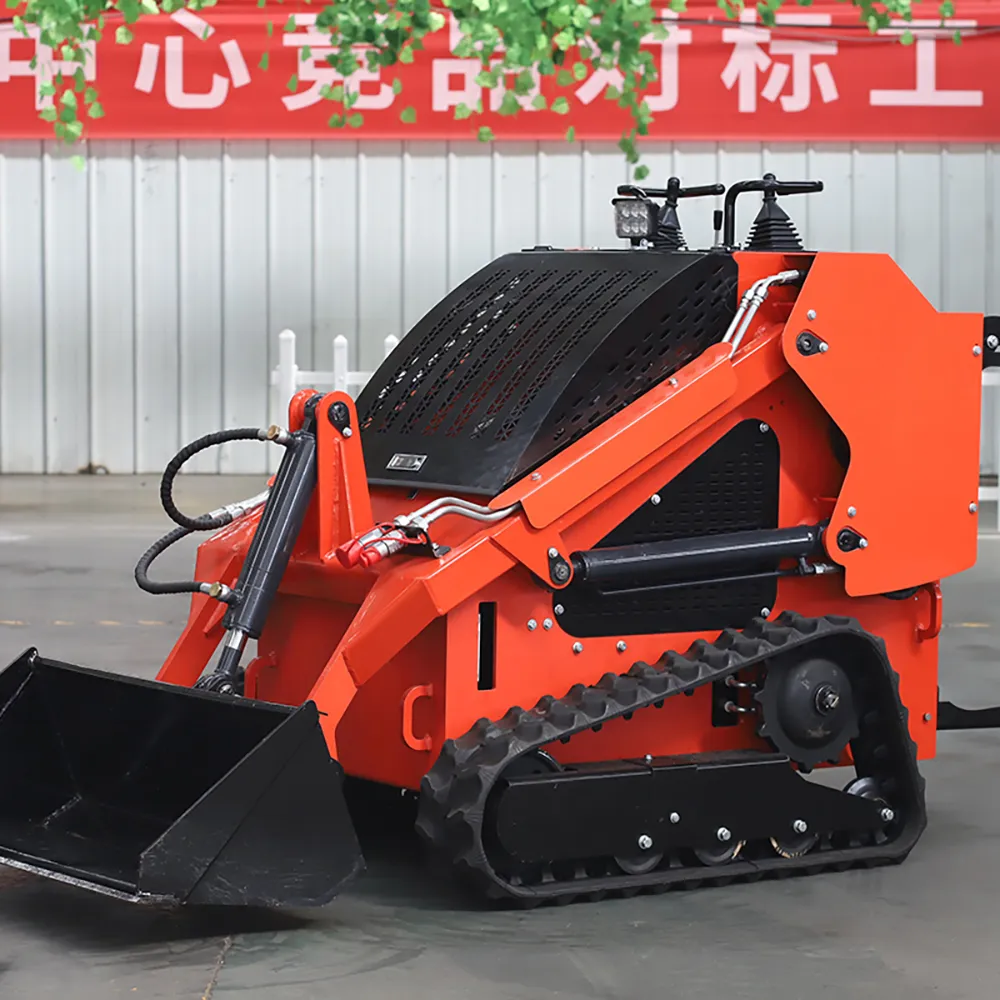

Side-front view of orange walk-behind tracked skid steer loader with low bucket, hydraulic fittings and rugged rubber tracks

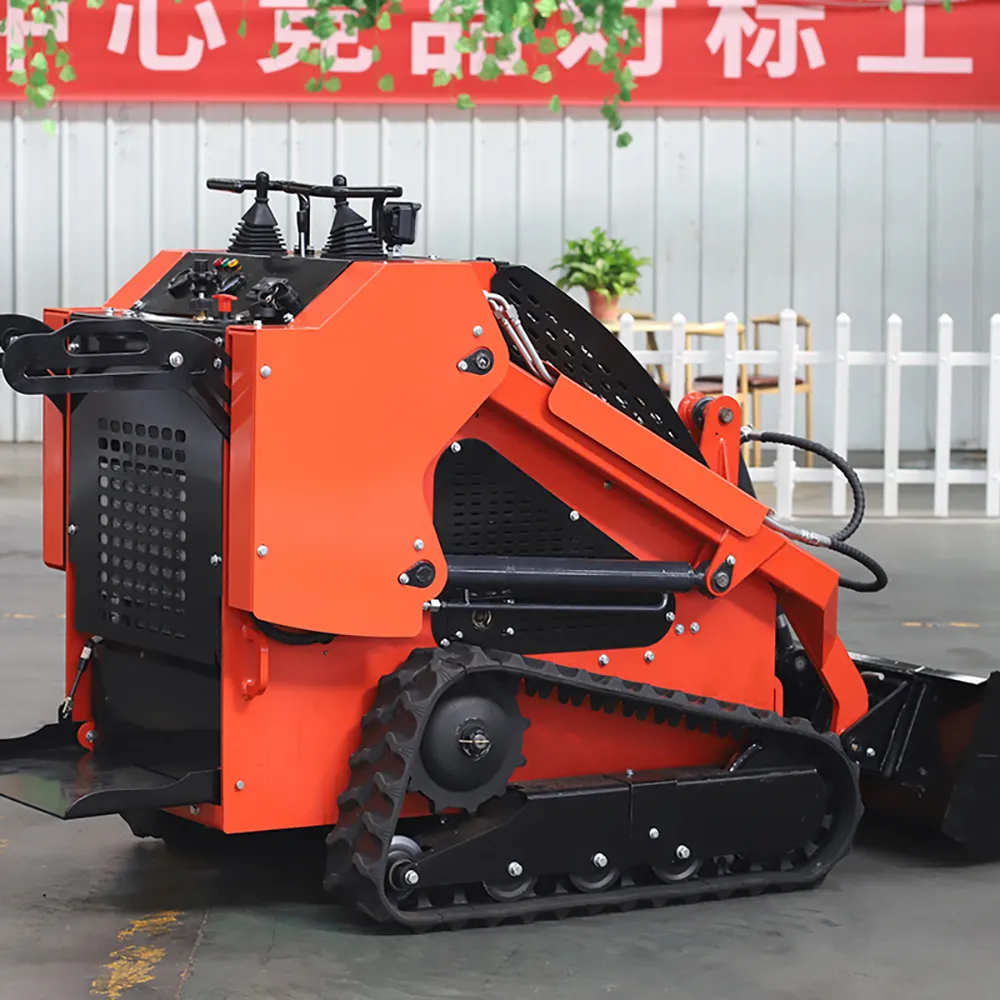

Side-rear view of orange walk-behind tracked skid steer loader showing joystick controls, engine compartment and tracks

SN-T480 Compact Track Skid Steer Loader with Hydraulic Cooler Yanmar Engine

SN-T480 compact track skid steer loader features high-efficiency hydraulic oil cooler, reliable Yanmar engine and optional self-balancing arm. Designed for sustained power and stability on uneven ground, ideal for construction and farm tasks.

Product Description

The SN-T480 is a premium compact track skid steer loader engineered for long-hour performance, heavy-duty operation and proven reliability on uneven terrain. Designed to handle continuous use and demanding conditions, it features a Yanmar engine, high-efficiency hydraulic oil cooler and optional self-balancing arm. The Yanmar engine delivers consistent power with low fuel consumption, while the hydraulic cooler prevents overheating during extended work sessions. With superior traction and stability on rough, muddy or sloped ground, the SN-T480 excels in construction, industrial and farm applications where reliability and uptime are critical. Whether for material handling, digging or attachment work, the SN-T480 delivers durable, efficient power with optional safety features to meet your needs.

Performance Characteristics

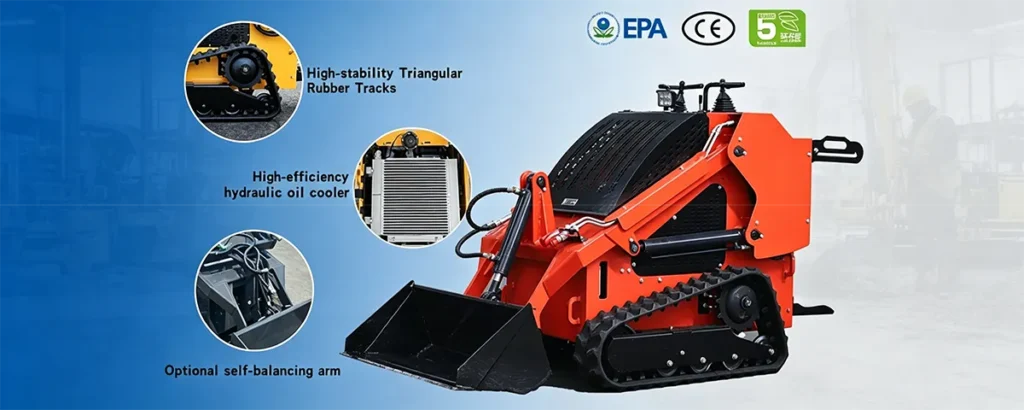

High-Efficiency Hydraulic Oil Cooler

The standard hydraulic oil cooler prevents overheating during long-hour or high-load operation, maintaining consistent hydraulic performance and extending component life. This feature ensures reliable power in warm climates or continuous use, reducing downtime caused by overheating and improving overall efficiency.

Yanmar Engine for Proven Reliability

Powered by a durable Yanmar engine, the SN-T480 delivers consistent performance with low fuel consumption and long service life. The engine is renowned for its reliability and ease of maintenance, providing sufficient horsepower (17.8kW/23.8HP) to handle maximum workloads with minimal servicing.

Optional Self-Balancing Arm

The optional self-balancing arm enhances lifting stability and safety, preventing tipping during heavy load handling or work on uneven ground. This feature is particularly useful when working at maximum load capacity or on sloped terrain, adding confidence and safety to every task.

High-Stability Triangular Rubber Tracks

Fitted with high-stability triangular rubber tracks, the SN-T480 offers superior traction, low ground pressure and enhanced stability on uneven, muddy or sloped terrain. The track design reduces slippage and protects sensitive surfaces like lawns and landscaping projects, making it versatile for both construction and residential applications.

Compact & Agile Design

Despite its premium components, the SN-T480 maintains a compact overall dimension (2169×1130×1300mm). Its 360-degree rotating body and tight turning radius allow it to navigate narrow streets, residential backyards and confined job sites where larger equipment cannot access.

Durable Construction & Low Maintenance

Built with high-quality thick steel and anti-corrosion coating, the SN-T480 is rust-resistant and durable for long-term use. The simple structure and easy-access components reduce maintenance time and costs, ensuring maximum uptime for your operations.

Product Specifications

Bucket Capacity	0.12 m³
Operating Weight	1200 kg
Climbing Ability	25°
Maximum Breakout Force	5.5 KN
Rated Load	350 kg
Maximum Load	450 kg
Travel Speed	0-6 km/h
Working System Pressure	17-21 bar
Max Loading Height	2450 mm
Max Dumping Height	1870 mm
Max Operating Height	2600 mm
Height to Bucket Pin	1870 mm
Max Bucket Dump Angle	63°
Min Height	1300 mm
Tail Length	500 mm
Ground Clearance	160 mm
Track Contact Length	900 mm
Overall Dimensions	2169×1130×1300 mm
Engine Brand	Yanmar
Engine Rated Power	17.8 kw / 23.8 HP
Emission Standard	EURO5 / EPA
Fuel Tank Capacity	13 L

Standard Configuration

High-efficiency hydraulic oil cooler for sustained long-hour performance
Yanmar engine for proven reliability and low fuel consumption
High-stability triangular rubber tracks for superior traction
Standard bucket attachment for general-purpose use
360-degree rotating body for tight-space maneuverability
Anti-rust spray-molded body for long service life
Simple operation system with intuitive controls

Optional Configuration

Self-balancing arm upgrade for enhanced lifting stability
Lithium electric engine upgrade (48V/72V)
Quick attach system for fast attachment changes
Forks, grapples, augers, sweepers and other attachments
Enclosed cabin with heater and wipers for all-weather operation
Enhanced LED lighting packages for night work
Heavy-duty track pads for specific terrain needs

Why Choose SN-T480?

Yanmar Engine Reliability: Proven performance and low maintenance for long-term use
Hydraulic Cooling Advantage: Prevents overheating during extended work sessions
Optional Self-Balancing Arm: Enhances safety and stability for heavy loads on uneven ground
Superior Traction: Triangular rubber tracks provide stability on rough, muddy or sloped terrain
Low Ground Pressure: Gentle on sensitive surfaces like lawns and landscaping projects
Compact & Agile: Fits in small spaces while delivering track-equipped stability
Versatile Attachment Support: Compatible with a wide range of tools to expand functionality
Factory Direct Supply: Competitive price with reliable quality assurance
