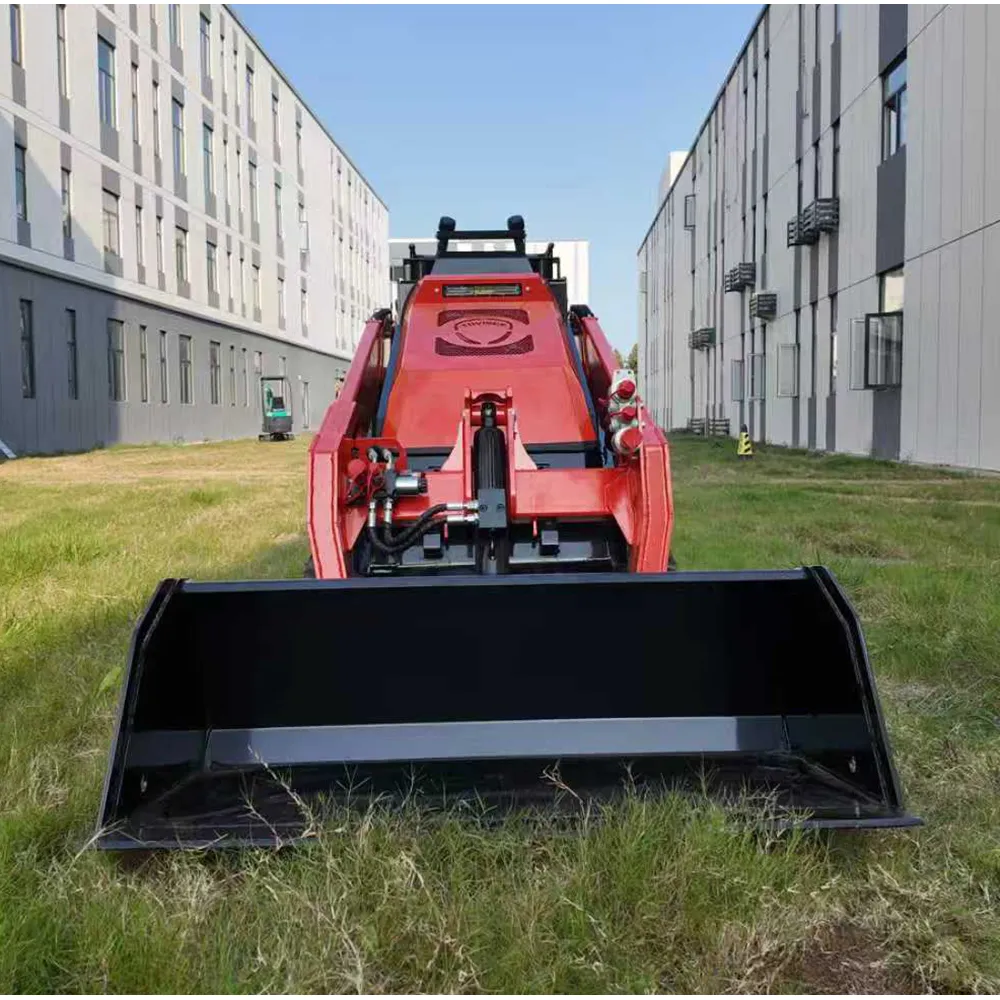

Front view of red ride-on tracked skid steer loader with level bucket, hydraulic fittings and rugged rubber tracks

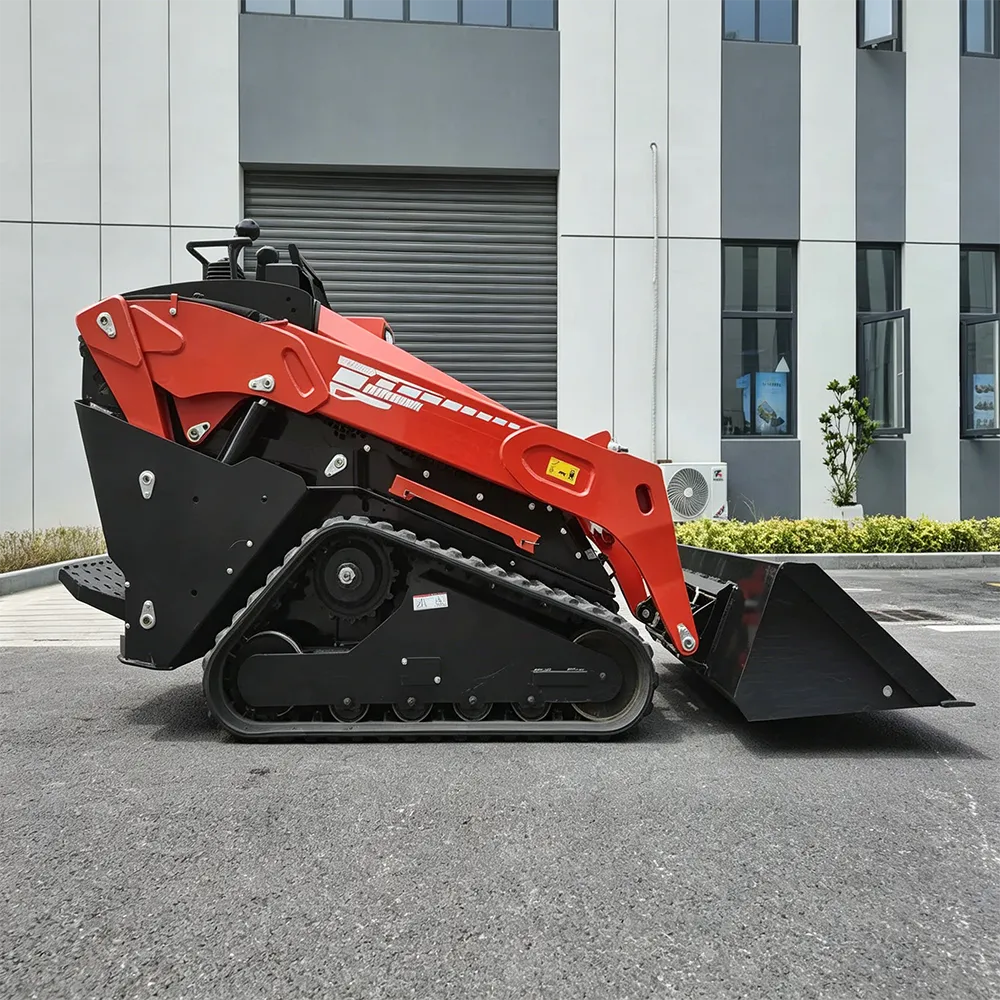

Side view of red ride-on tracked skid steer loader with low bucket position, rugged tracks and joystick controls

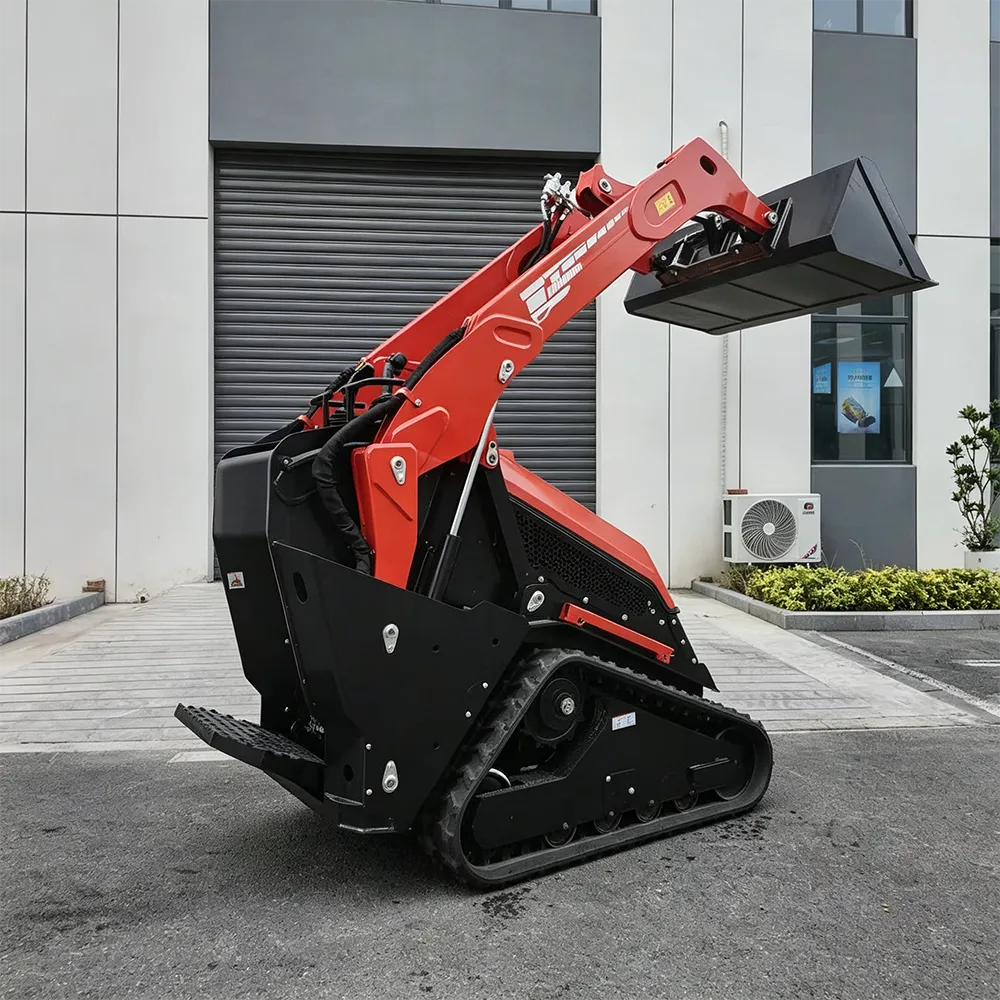

Side-front view of red ride-on tracked skid steer loader with raised bucket, rugged tracks and operator controls

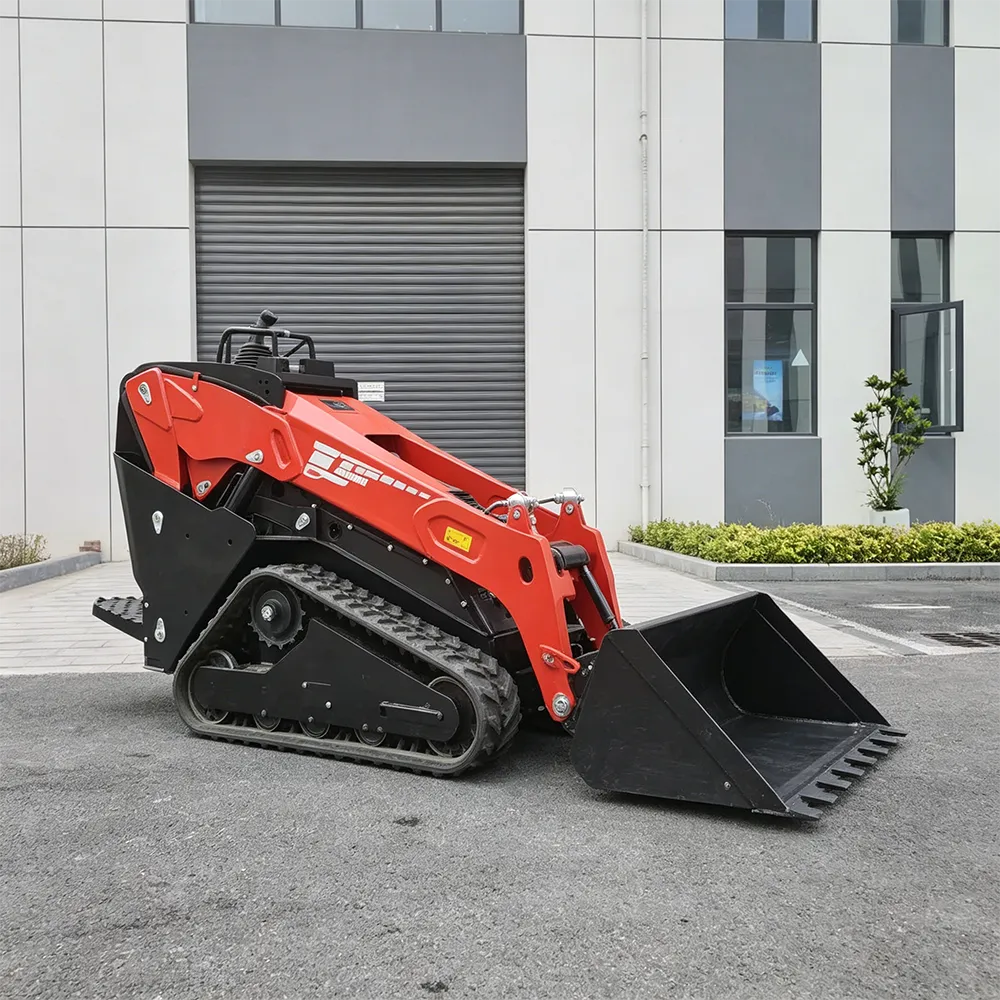

Side view of red ride-on tracked skid steer loader with tooth bucket, rugged tracks and ergonomic controls

SN-V1000 High-Load Skid Steer Loader with Vertical LiftingSN-V1000 High-Load Skid Steer Loader with Vertical Lifting

SN-V1000 high-load track skid steer loader features vertical lifting design, hydraulic pilot control and vehicle exit safety lock. Built for heavy-duty performance, precise operation and enhanced safety on uneven terrain, ideal for construction, industrial and farm material handling tasks.

Product Description

The SN-V1000 is the flagship high-load compact track skid steer loader engineered for superior lifting efficiency, maximum payload and enhanced safety in demanding environments. Designed specifically for high-bar loading/unloading and heavy-duty material handling, it features a vertical lifting structure, hydraulic pilot control system and vehicle exit safety lock. The vertical lifting design delivers higher lift heights with minimal side-to-side movement, reducing material spillage and improving loading efficiency. With a 500kg rated load (series maximum) and proven Kubota/Yanmar engine, the SN-V1000 excels in construction, industrial and farm applications where high productivity, safety and reliability are critical.

Performance Characteristics

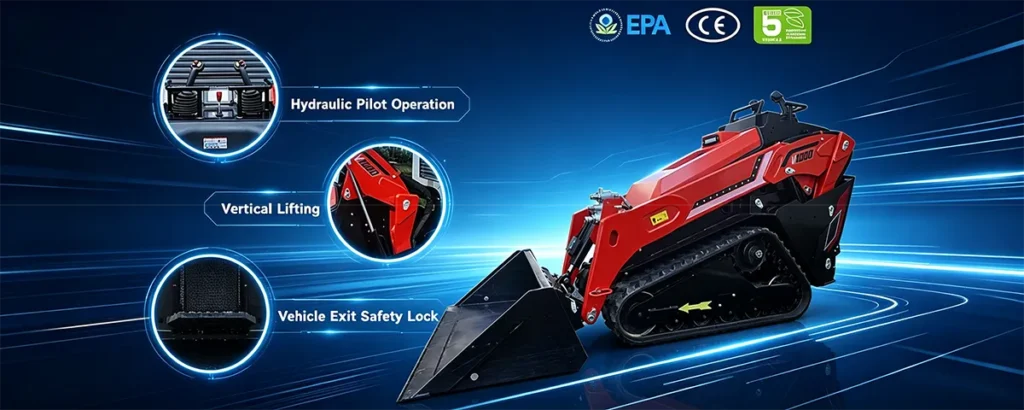

Vertical Lifting Structure

The unique vertical lifting design delivers higher maximum lift height with a near-vertical lifting path, minimizing side-to-side bucket movement. This feature is ideal for loading/unloading high-bar trucks, reducing material spillage and improving loading efficiency compared to radial lift designs.

Series-Maximum High-Load Capacity

With a rated load of 500kg and maximum load capacity of 650kg, the SN-V1000 delivers industry-leading payload performance. The robust breakout force of 4.5KN ensures reliable digging and material handling, even with dense or heavy loads.

Hydraulic Pilot Control System

The hydraulic pilot control system offers smooth, precise and low-effort operation. This intuitive control reduces operator fatigue during long work sessions, while providing responsive handling for lifting, digging and attachment work.

Vehicle Exit Safety Lock

The built-in vehicle exit safety lock enhances operational safety by preventing unintended machine movement when the operator exits the seat. This critical safety feature reduces the risk of accidents, ensuring compliance with workplace safety standards.

Proven Kubota/Yanmar Engine

Powered by a reliable Kubota or Yanmar engine, the SN-V1000 delivers consistent power, low fuel consumption and long service life. The engine is engineered for heavy-duty use, with minimal maintenance requirements and proven durability in demanding environments.

High-Stability Triangular Rubber Tracks

Fitted with high-stability triangular rubber tracks, the SN-V1000 offers superior traction, low ground pressure and enhanced stability on uneven, muddy or sloped terrain. The track design reduces slippage and protects sensitive surfaces like lawns and landscaping projects.

Compact & Agile Design

Despite its high-load capabilities, the SN-V1000 maintains a compact overall dimension (2691×1235×1548mm). Its 360-degree rotating body and tight turning radius allow it to navigate narrow streets, residential backyards and confined job sites where larger equipment cannot access.

Product Specifications

Bucket Capacity	0.19 m³
Operating Weight	1417 kg
Climbing Ability	25°
Maximum Breakout Force	4.5 KN
Rated Load	500 kg
Maximum Load	650 kg
Travel Speed	0-4.5 km/h
Working System Pressure	19.5 bar
Bucket Width	1235 mm
Max Loading Height	1740 mm
Max Dumping Height	1522 mm
Max Operating Height	2794 mm
Height to Bucket Pin	2140 mm
Max Bucket Dump Angle	63°
Min Height	1548 mm
Tail Length	500 mm
Ground Clearance	200 mm
Track Contact Length	1026 mm
Overall Dimensions	2691×1235×1548 mm
Engine Brand	Kubota / Yanmar
Engine Rated Power	17.8 kw / 23.8 HP
Emission Standard	EURO5 / EPA
Fuel Tank Capacity	40 L

Standard Configuration

Vertical lifting structure for efficient high-bar loading/unloading
Hydraulic pilot control system for smooth, low-effort operation
Vehicle exit safety lock for enhanced operational safety
High-stability triangular rubber tracks for superior traction
Standard bucket attachment for heavy-duty material handling
360-degree rotating body for tight-space maneuverability
Anti-rust spray-molded body for long service life

Optional Configuration

Lithium electric engine upgrade (48V/72V)
Quick attach system for fast attachment changes
Forks, grapples, augers, sweepers and other attachments
Enclosed cabin with heater and wipers for all-weather operation
Enhanced LED lighting packages for night work
Heavy-duty track pads for specific terrain needs

Why Choose SN-V1000?

Vertical Lifting Efficiency: Minimizes side movement for faster, cleaner high-bar loading
Series-Maximum Load Capacity: 500kg rated load for the heaviest material handling tasks
Hydraulic Pilot Comfort: Smooth, low-effort controls reduce operator fatigue
Vehicle Exit Safety Lock: Prevents unintended movement for enhanced workplace safety
Proven Engine Reliability: Kubota/Yanmar power for consistent performance
Superior Traction: Triangular rubber tracks provide stability on rough terrain
Compact & Agile: Fits in confined spaces while delivering full-sized performance
Factory Direct Supply: Competitive price with reliable quality assurance
